1.8cbm Bucket 220kw Construction Large Hydraulic Excavators for Chile
JINING HENGWANG CONSTRUCTION MACHINERY CO., LTD.- After-sales Service：Provide
- Warranty：1 Year
- Type：Crawler Excavator
- Usage：Mining Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：37 ton
- Drive Type：Internal Combustion Drive
- Bucket Capacity：>1.5m³
- Size：Large-Scale
- Certification：CE, ISO9001: 2000, TUV
- Condition：New
- Maximum Digging Height：10110 mm
- Maximum Dumping Height：6970 mm
- Maximum Digging Depth：6995 mm
- Maximum Vertical Digging Depth：5460 mm
- Maximum Digging Distance：10840 mm
- Maximum Digging Distance at Ground Level：10630 mm
- Working Device Minimum Turning Radiu：4330 mm
- Engine Model：Wp9h
- Engine Type：6-Cylinder
- Displacement：8.8L
- Rated Power：220,2000kw,Rpm
- Type of Hydraulic Pump：Plunger Pump
- Rated Working Flow：2X300L,Min
- Bucket Arm Digging Force：174kn
- Bucket Digging Force：254kn
- Transport Package：RO-RO
- Specification：11265*3200*3290mm
- Trademark：HW
- Origin：China
- HS Code：8429521200
- Production Capacity：200 Units ,Month
Description
Model
Unit
HW-375
Total weight
kg
36800
Working device mode
/
Backhoe
Bucket capacity
m³
1.8
Rated power
Kw
220
Dimensions(LxWxG)
mm
11265*3200*3290mm
L
620
Cooling system

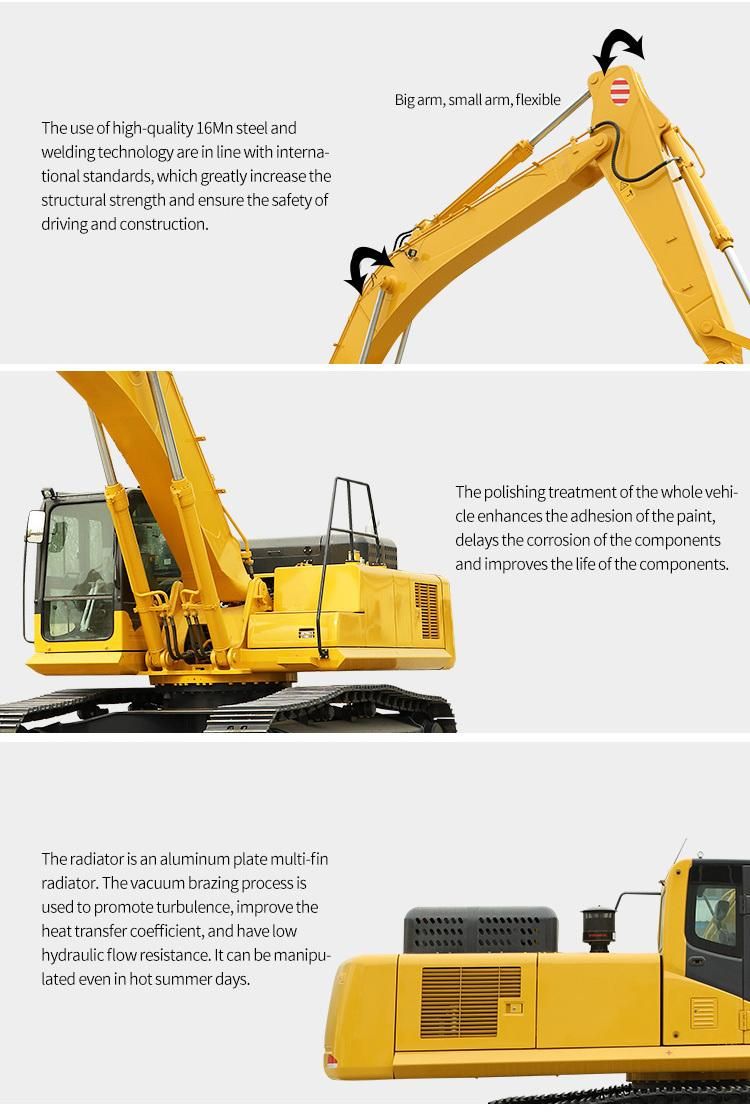

Product Details :
Intelligent control system to achieve a high degree of power system and hydraulic system matching, improve operational efficiency, reduce fuel consumption.
Human-machine friendly new generation of intelligent electronic control system, so that your machine working state in control.
Electrical components centralized layout, coolant filling, air filter replacement, power supply switch within reach.
Fuel filter element is placed at the left door, oil filter element is placed at the right door.
Rear open hood, more convenient maintenance

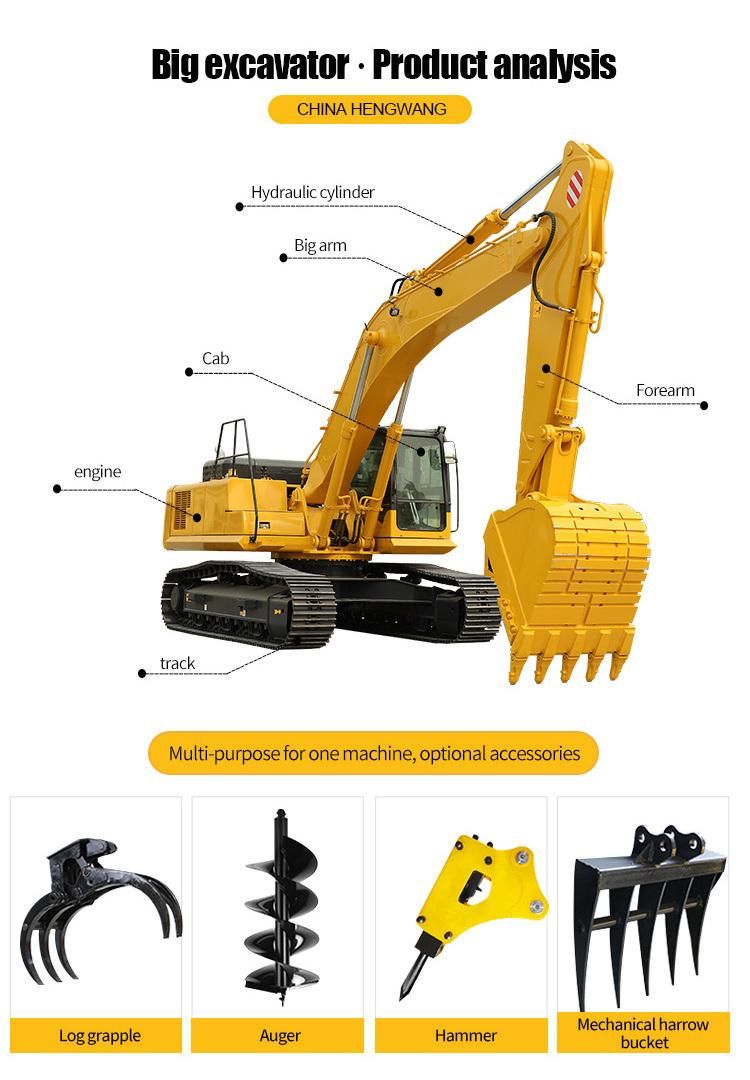

Hengwang HW 375 37 ton heavy duty equipment construction excavator accessories :
Crushing hammer, soil stripping device, wood grab, stone grab, hydraulic rammer, quick change device, crushing hammer pipeline

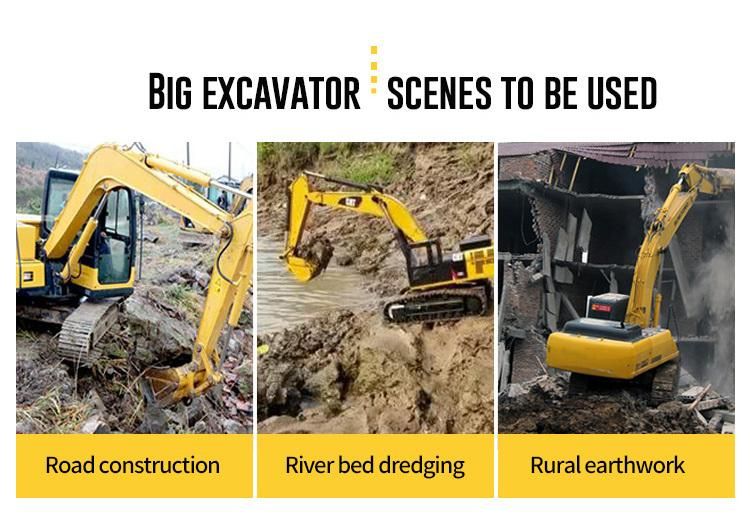

Hengwang HW 375 37 ton heavy duty equipment construction excavator applications:
Standard or full-sized excavators, sometimes called "crawler" excavators, make up the largest volume of excavators on the market and this class is most common in commercial construction. Standard excavators not only offer more power and reach, but their hydraulic systems make them capable of handling multiple tool attachments.
Our Company:
Certificate :
Exhibitions :
