Super Mini Excavator Cralwer Digger for Home Use
JINING HENGWANG CONSTRUCTION MACHINERY CO., LTD.- After-sales Service：Provide
- Warranty：One Year
- Type：Crawler Excavator
- Usage：GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：1 ton
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.03cbm
- Size：Small-Scale
- Certification：CE, ISO9001: 2000, EPA
- Condition：New
- Rated Power：9.2kw
- Max Digging Radius：2450mm
- Max.Digging Depth：1410mm
- Max.Digging Height：2420mm
- Max.Dumping Height：1650mm
- Machine Weight：758kg
- Working Device Mode：Backhoe
- Engine Model：Koop Air Cooling 192
- Max. Digging Force：7.5kn
- Working Pressure：14MPa
- Rotation Speed：12rpm
- Walking Speed：2.2km,H
- Gradeability：30
- Ground Pressure：19kpa
- Maximum Ground Clearance of Bulldozer：120mm
- Transport Package：Wodden Case
- Specification：2430*880*1460mm
- Trademark：HW
- Origin：China
- HS Code：8429521200
- Production Capacity：600 Sets,Month
Description
Model
Unit
1 ton
Machine weight
kg
758
Working device mode
/
Backhoe
Bucket capacity
m³
0.03
Engine model
/
Koop air cooling 192
Rated power
Kw
9.2
Dimensions(LxWxG)
mm
2430*880*1460
Max digging radius
mm
2450
Max.digging depth
mm
1410
Max.digging height
mm
2420
Max.dumping height
mm
1650

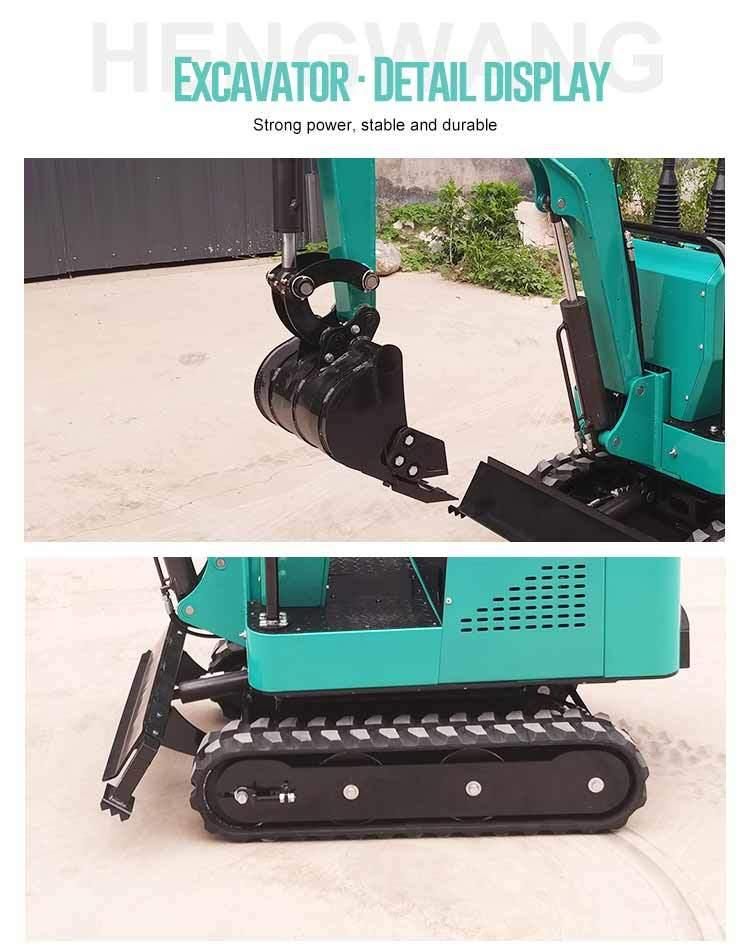

Product Details

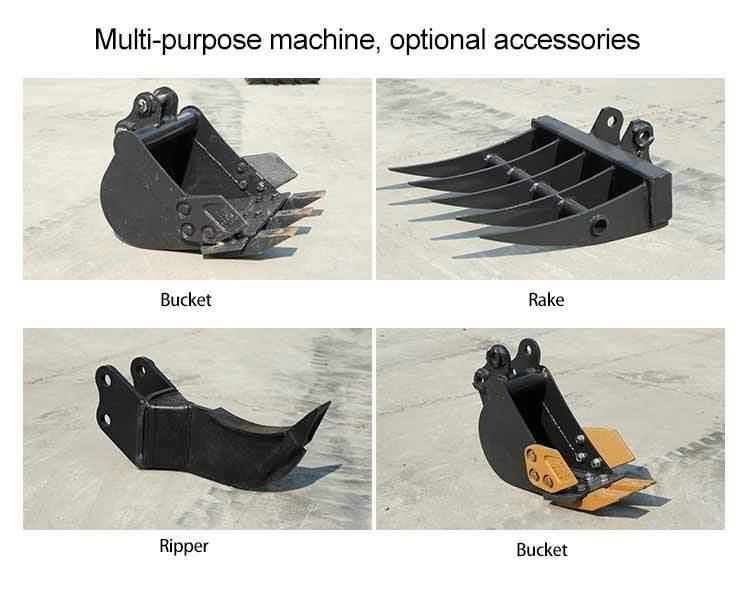

1-ton mini digger excavator can be matched with kinds of accessories:
auger bit, breaker hammer, quick hitch, rake, ripper, grabble, and the different sizes of digging buckets.

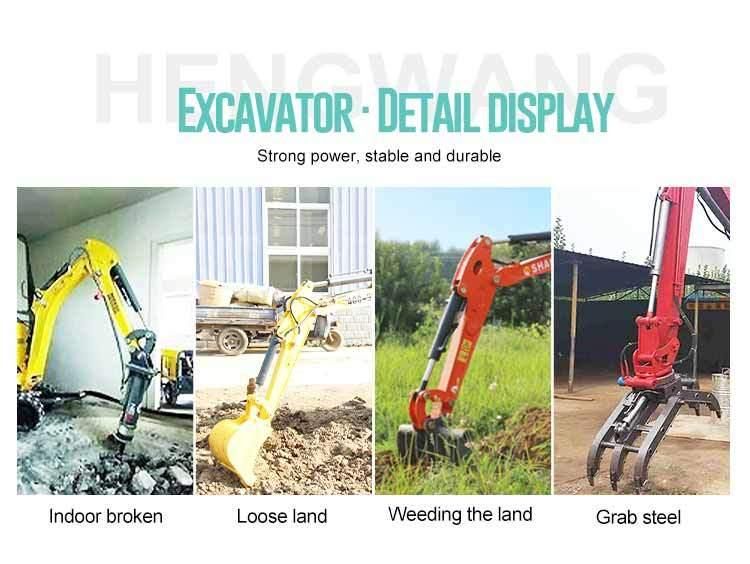

Mini Excavator working condition.
Excavators with CE Certification
Company Introduction
Exhibition
