• Model NO.：HF-6A
• Certification：CE, RoHS, ISO 9001:2000
• Condition：New
• Drill Diameter：300-1850mm
• Drill Depth：300m
• Impact Frequency：38-42times,Min
• Weight：9500kg
• Drill Tools Stroke：850,700mm
• Mast Loading Capacity：5000kg
• Traction Driving Speed：30km,H
• Tire Specifications：7.50-20
• Rim Specification：20×7
• Transport Package：Standard Export Packing
• Specification：CE, ISO
• Trademark：HANFA
• Origin：Zhengzhou City, China
• HS Code：8430490000
• Production Capacity：20 Sets Per Month

Technical performanceParameterDimension(M)9.30*2.50*3.10mVehicle transportation size(M)9.30*2.25*2.80mContainer transport dimensions(M)split14.80*2.25*2.30msplit29.30*0.85*1.05mWeight(kg)9500kgDrill diameter(mm)300-1850mmDrill depth(M)300m(when the diameter is 600mm)Maximum weight of drill tools(kg)5000kgDrill tools selectionStratum hardness≤1000kphollow boring bitStratum hardness≥1000kpsolid-crown bitDrill tools stroke(mm)850mm,700mmImpact frequency(times/min)38-42times/minElectric Motor parametersModel YL280M2-6,engine power 55kw980r/minThe mast height(M)single mast 8.5m,9.5m;double mast 12.5mMast loading capacity(kg)50000kgTraction Driving speed (km/h)30km/hHoist lifting capacity(N)front winch20096NBack winch68357NSpecification and capacity of winding drum rope(M)front winding drum6×37s φ18 200-250(levorotation)Back winding drum6×19s+IWRC 200-300(levorotation)Wheel specificationTire specifications7.50-20Rim Specification20×7

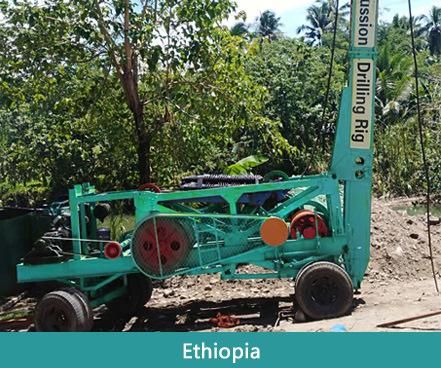

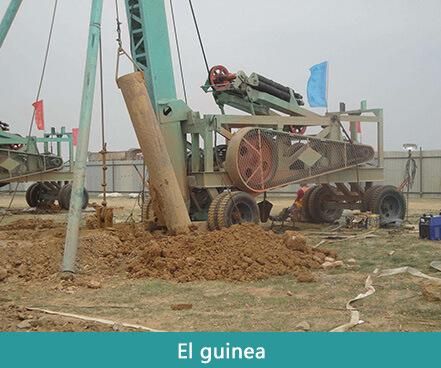

Working Site



Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig, horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.

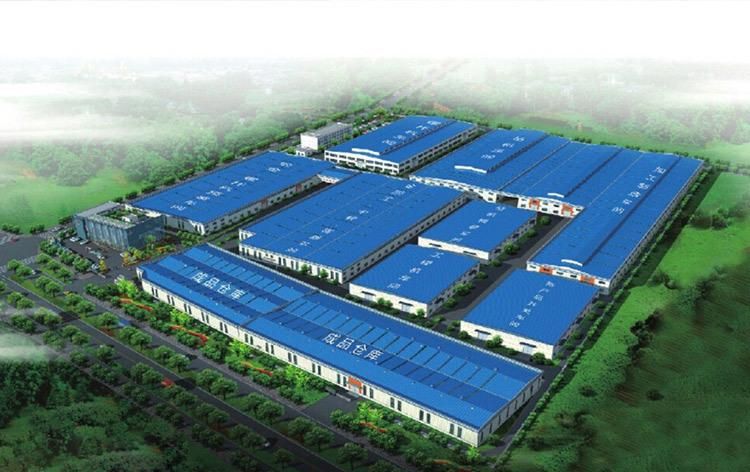

1. More than 30 years of experience The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.

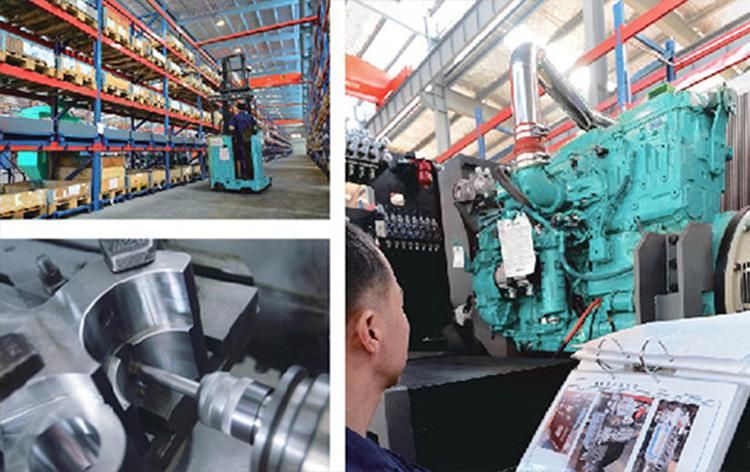

2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.

FAQ
1,Are you trading company or manufacturer?We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2,Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3,How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.

6,How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.Our Customers
