Quarry Stone Block Pushing Down Polymer Air Cushion Bag
Xiamen Bestlink Factory Co., Ltd.- Type：No
- Application：Tunnel Boring Machine
- Certification：CE
- Condition：New
- Material：Plastic
- Size：as Your Request
Base Info
- Model NO.：BL3030
- Brand：Bestlink
- Loading Port：Xiamen
- Transport Package：by Crates
- Specification：2m*2m
- Trademark：BESTLINK
- Origin：Xiamen, China
- HS Code：39269090
- Production Capacity：5000PCS,Month
Description
Basic Info.
Model NO. BL3030 Brand Bestlink Loading Port Xiamen Transport Package by Crates Specification 2m*2m Trademark BESTLINK Origin Xiamen, China HS Code 39269090 Production Capacity 5000PCS/MonthProduct Description

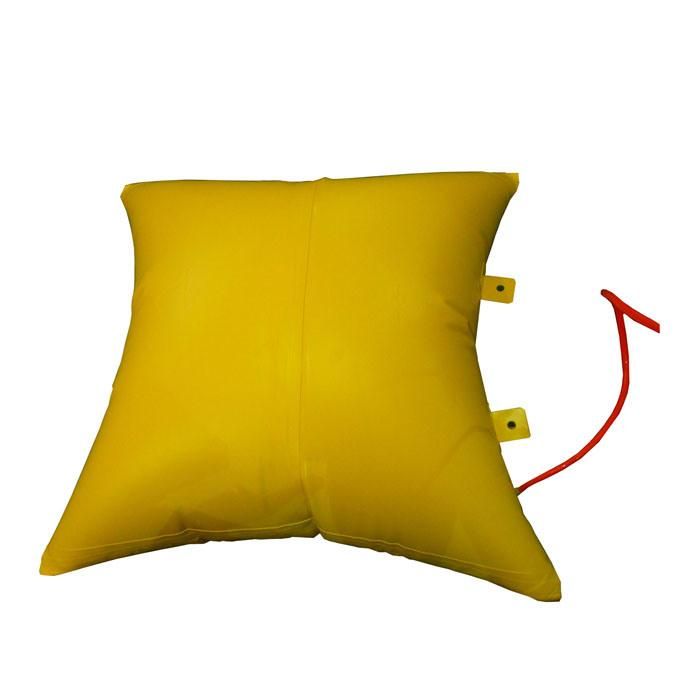

Quarry Stone Block Pushing Down Polymer Air Cushion Bag

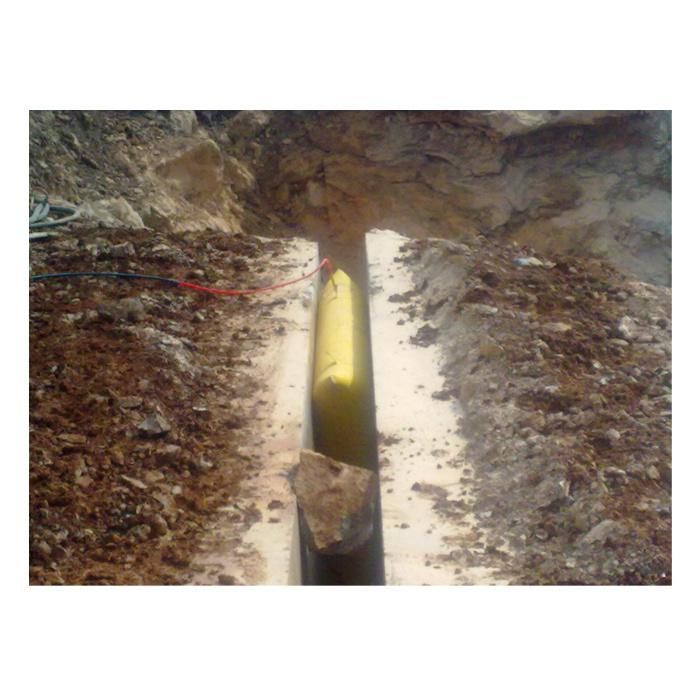

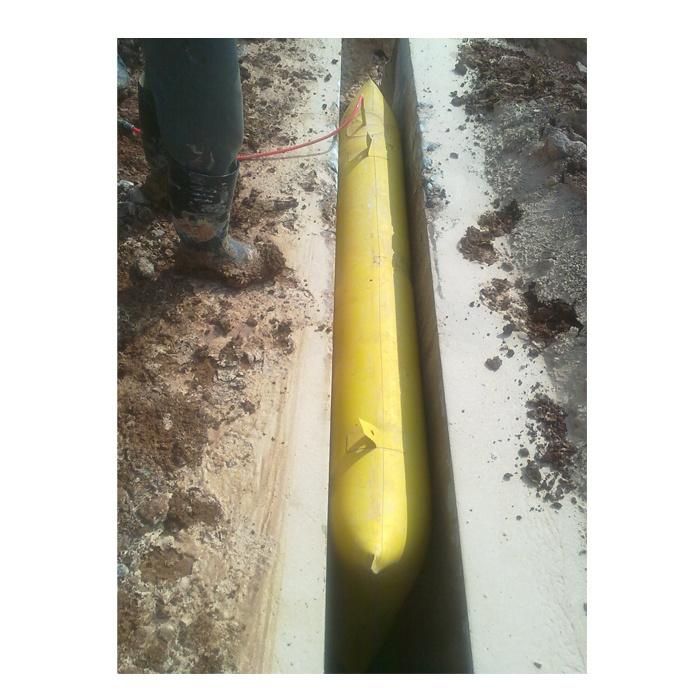

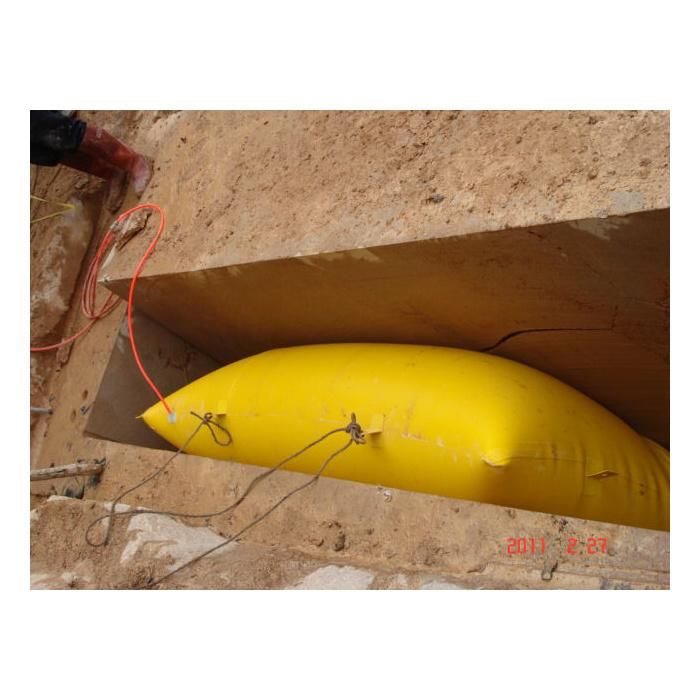

It can be used to used to separate the marble, granite, stones(rock mass) block from the basic rock achieving a maximum opening of 45cm at the top. The air bag can separate the block (rock mass) which is having all side wire saw cut faces.The thickness of our air bag is less than 7mm. It can be put into the cutting aperture easily. Aerated the air bag with the air compressor, the inflation of air bag can bring pushing power which can be from 20 to 200 tons according to different size of bag. This pushing power can push over big blocks easily. Our air bag's raw materials are imported from Japan. Our air bag is durable and repairable. It is one of the lowest cost pushing tools.
| Specification | Theoretical pushing capacity |
| 500m×500mm | 15tons |
| 1000m×500mm | 25tons |
| 1000m×1000mm | 50tons |
| 1000m×1500mm | 75tons |
| 1000m×2000mm | 100tons |
| 1500m×1500mm | 115tons |
| 2000m×1500mm | 150tons |
| 1800m×1800mm | 165tons |
| 2000m×1800mm | 180tons |
| 2000m×2000mm | 200tons |
| Control platform for above air bag | air pressure 0-6bar |
