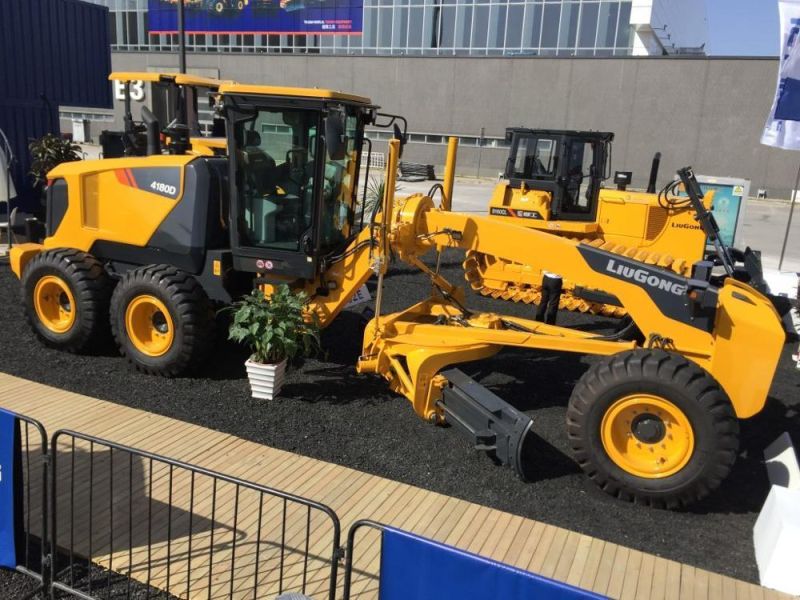

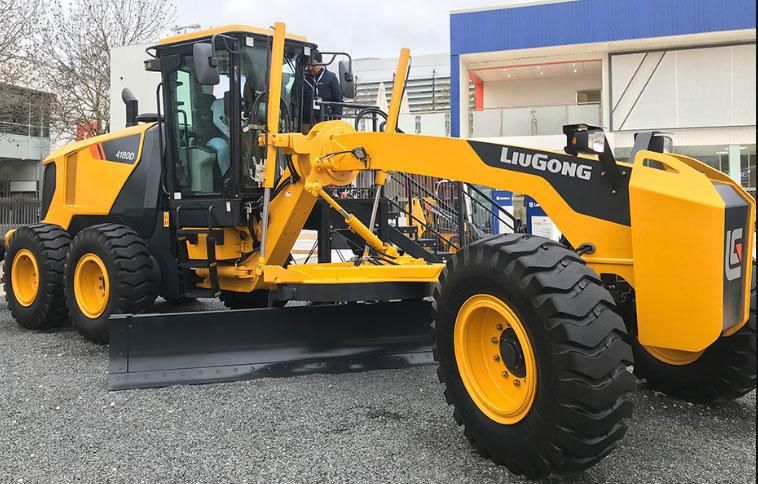

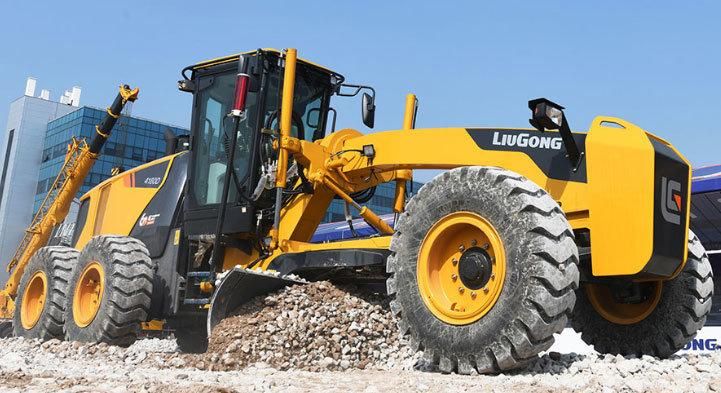

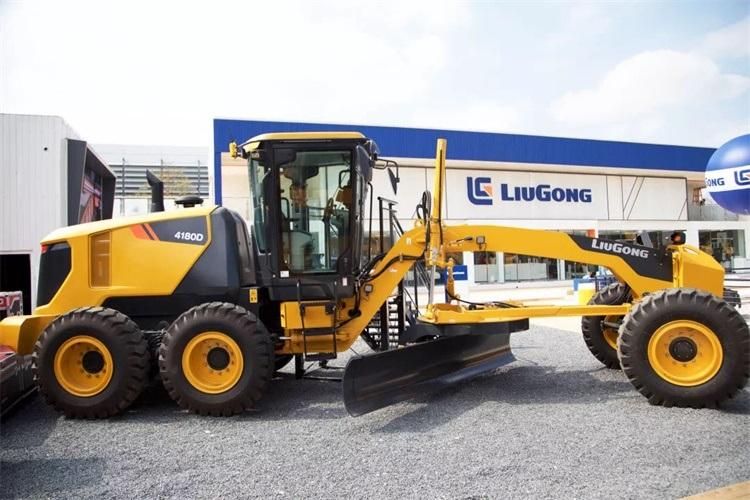

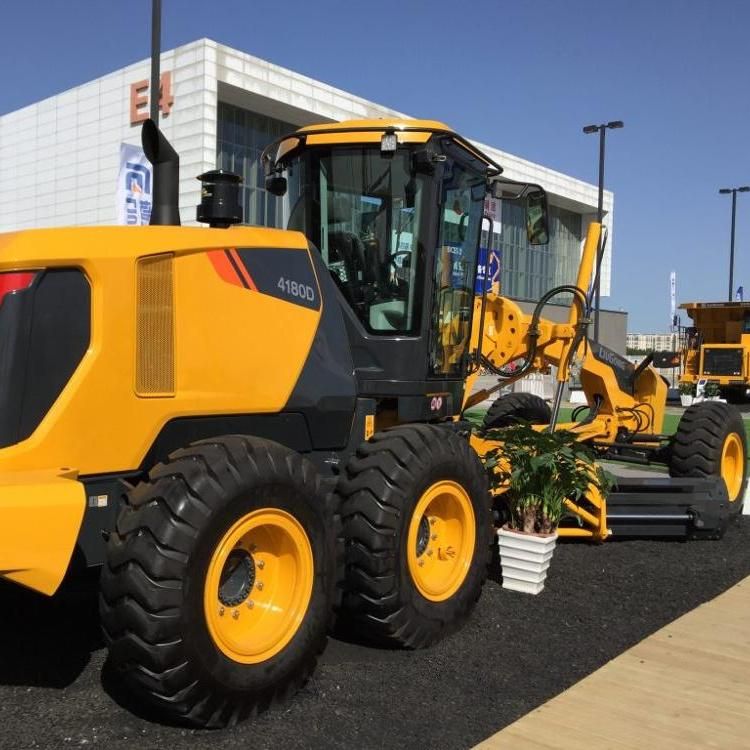

Graders China Oriemac New 180HP Clg4180d Hydraulic Motor Grader for Sale

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Certification：ISO, CE
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Hydraulic
  • Walking Mode：Wheeled
  • Type：Large Grader

Base Info

  • Model NO.：CLG4180D
  • Operating Weight：15500 Kg
  • Weight on Front Wheels：4650 Kg
  • Weight on Rear Tandem：10850 Kg
  • Drawbar Pull：86 Kn
  • Model：Cummins 6btaa5.9-C190
  • Emission Regulation：Tier 2 , Stage II
  • Rated Power：142 Kw (193 HP) @ 2200 Rpm
  • Net Power：115 Kw (172 HP) @ 2200 Rpm
  • Maximum Travel Speed, Reverse：26.2 Km,H
  • Maximum Travel Speed, Forward：42 Km,H
  • Transport Package：Nude
  • Specification：142kw
  • Trademark：Liugong
  • Origin：Guangxi China
  • HS Code：84292090
  • Production Capacity：1000 Units Per Month

Description

Basic specification

Engine model

Cummins 6BTAA5.9-C190

Rated power/speed

142 kW (193 hp) @ 2200 rpm

Dimension(LxWxH)

9265×2600×3500mm

Operating weight(Standard)

15500kg

Net power

128 kW (174 hp) @ 2200 rpm

Type

Power shift

Maximum travel speed, forward

42 km/h

Maximum travel speed, reverse

26.2 km/h

Turning radius

7300 mm

Blade width

3960 mm
