• Model NO.：YG-06
• Application：Spraying Wet Shotcrete
• Weight：16500kgs
• Spraying Capacity：30m3,H
• Spraying Pressure：83bar
• Moving：Four Wheels
• Max Spraying Height：15.6m
• Power of Hydraulic System：55kw
• Transport Package：Container
• Specification：7600*2870*3150mm
• Trademark：YG
• Origin：China
• Production Capacity：100 PCS Per Month

Basic Info.

Model NO. YG-06 Application Spraying Wet Shotcrete Weight 16500kgs Spraying Capacity 30m3/H Spraying Pressure 83bar Moving Four Wheels Max Spraying Height 15.6m Power of Hydraulic System 55kw Transport Package Container Specification 7600*2870*3150mm Trademark YG Origin China Production Capacity 100 PCS Per Month

Product Description

Brief introduction of shotcrete machine

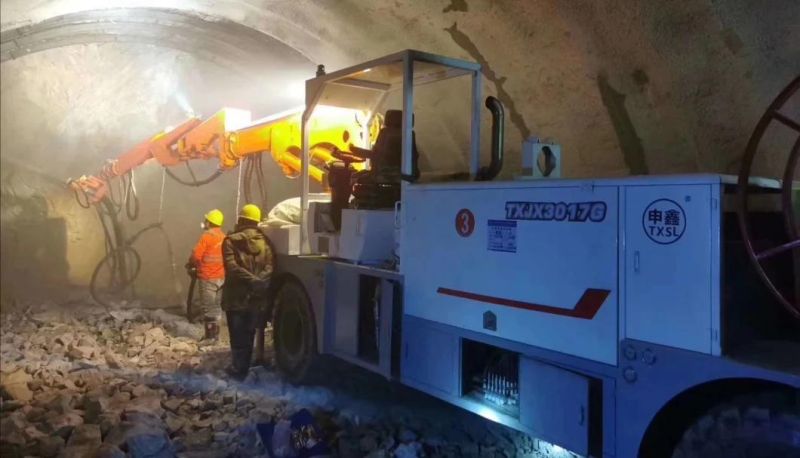

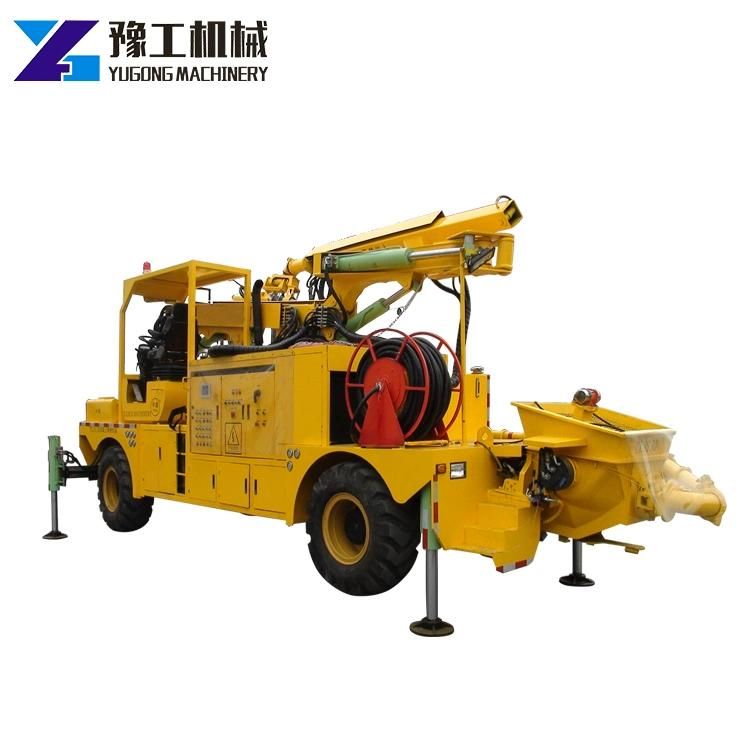

Truck shotcreting machine is a new generation of shotcreting machine on trucks. It is developed
after the integration of wet shotcreting technology at home and abroad. It eliminates the spraying
shortcomings of traditional small shotcreting that cannot meet the long-term needs of shotcreting.
Large-scale tunnels have greatly improved the working environment of workers in the tunnel,
improved work efficiency, reduced concrete consumption, and truly ensured the work quality.
The dual-power working system reduced carbon emissions and complied with environmental
protection requirements. The protection concept of truck shotcrete is water. The best choice for
tunnel construction such as engineering, hydropower, railway, highway, etc.


Truck mounted wet shotcrete machine Advantages

1) Adopt thin air flow conveying type wet shotcrete machine

Good adaptation for concrete mixture, lower dosage for binding material and additives

2) Special boom structure

Adopt two stages boom structure with movable slewing support strut, suitable for benching
tunnelling method, meet three benches annular digging leaving core, this kind spraying
method without working blind angle.

3) Wireless remote control system, improve working environment.

4) World famous original parts and components

5) Motor and diesel double engine system, can change quickly as per need, well-adapted.

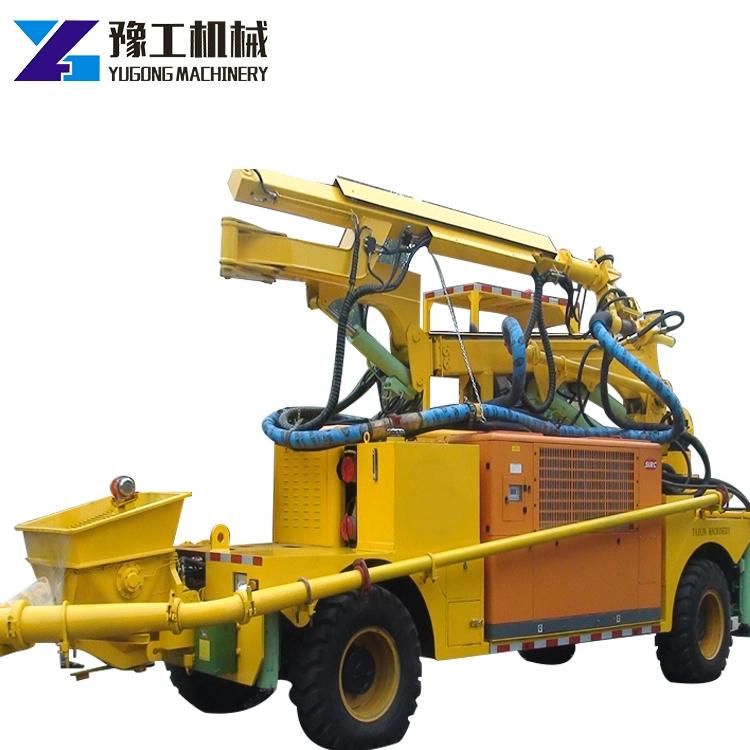

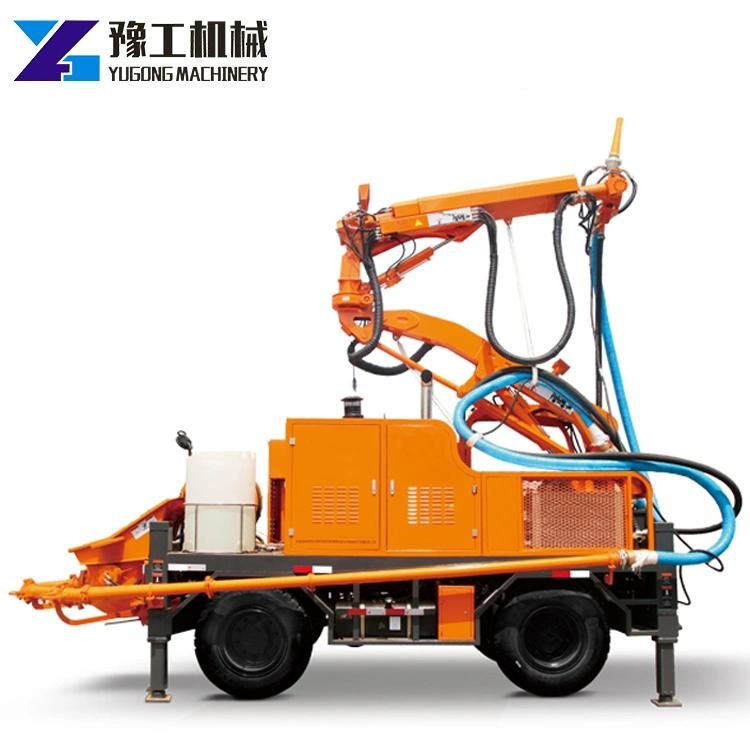

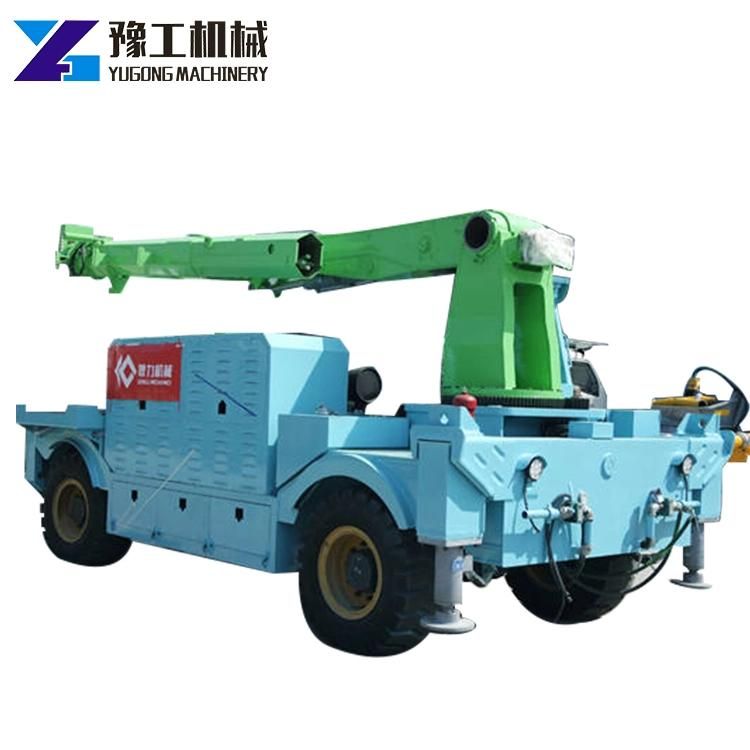

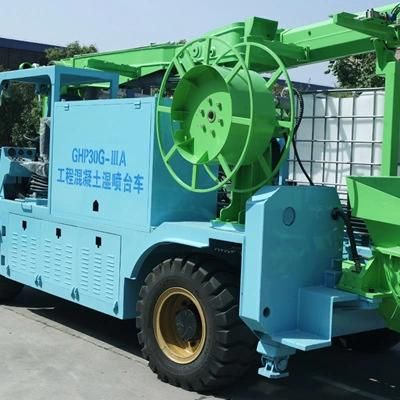

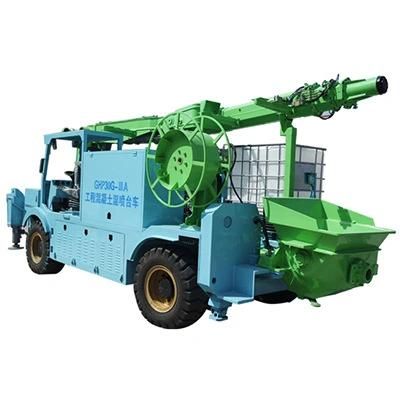

Detailed pictures
