• Model NO.：YC35
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Width of Bucket：630mm
• Engine Model：Kubota V2403
• Engine Power：31.2kw,2200rpm
• Max. Gradeability：58%
• Max. Digging Force of Arm：17.4kn
• Max. Digging Force of Bucket：22.2kn
• Traveling Speed：3.4,4.8km,H
• Max. Digging Height：5200mm
• Max. Digging Depth：3535mm
• Max. Digging Radius：5486mm
• Max. Dumping Height：3680mm
• Min. Slewing Radius：1990mm
• Overall Length：5250mm
• Overall Width：1518mm
• Overall Height：2470mm
• Transport Package：Nude
• Specification：3740kg
• Trademark：Yuchai
• HS Code：84295212
• Production Capacity：1000 Units Per Month

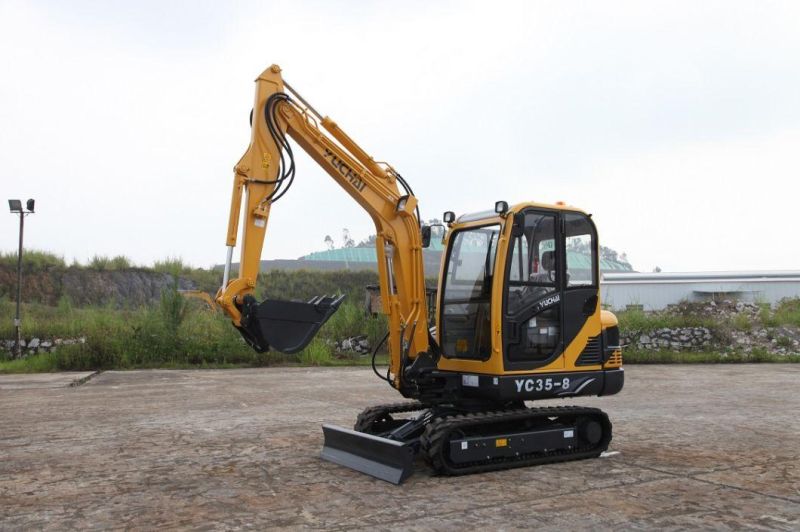

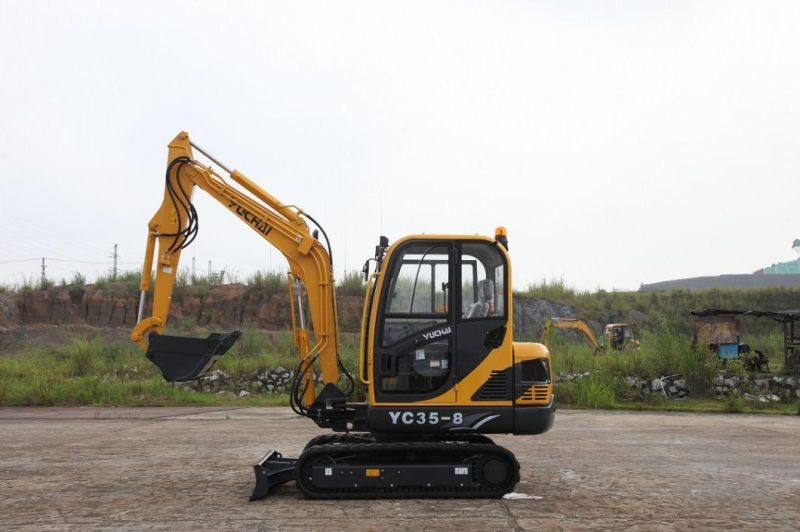

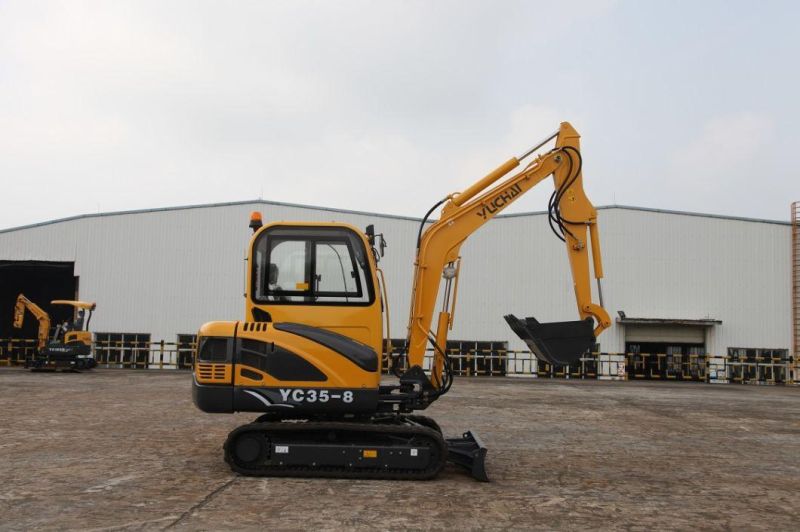

Excavator ModelYC35-8Basic parameter    Machine weight 3740kgBucket capacity 0.12m³Width of bucket 630mmPerformance parameter   Engine model Kubota V2403Engine power31.2kW/2200rpmMax. Gradeability 58%(30°Max. digging force of arm17.4kNMax. digging force of bucket22.2kNTraveling speed3.4/4.8km/hMax. hauling force 29kNSlewing speed of platform11~13rpmOperating parameter   Max. digging height5200mmMax. digging depth3535mmMax. digging radius5590mmMax. digging radius on ground level 5486mmMax. dumping height 3680mmMin. slewing radius 1990mmMax. vertical digging depth2413mmTransportation dimension   Overall length5250mmOverall width1518mmOverall height 2470mmOther Parameter   Width of undercarriage 1518mmLength of track2100mmWidth of track 300mmHeight between undercarriage and ground 302mmHeight between platform and ground 570mmPlatform tail turning radius 1515mmTrack gauge1620mmFuel tank capacity 48.5LHydraulic oil tank capacity 54.5L    Type and flow rate of pumpVariable Pump 2*45+15.4 L/min
