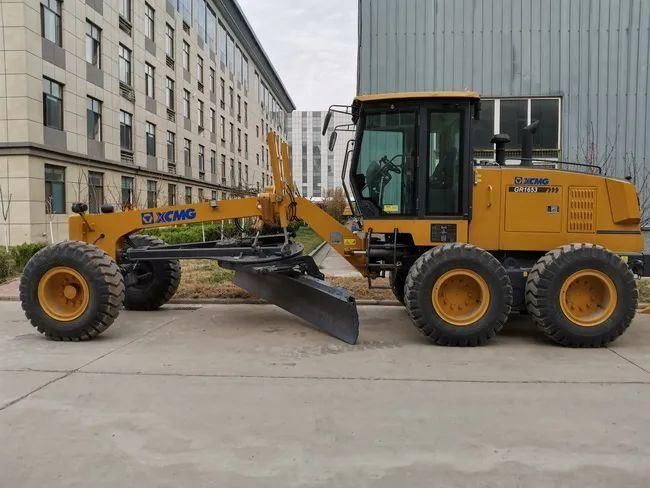

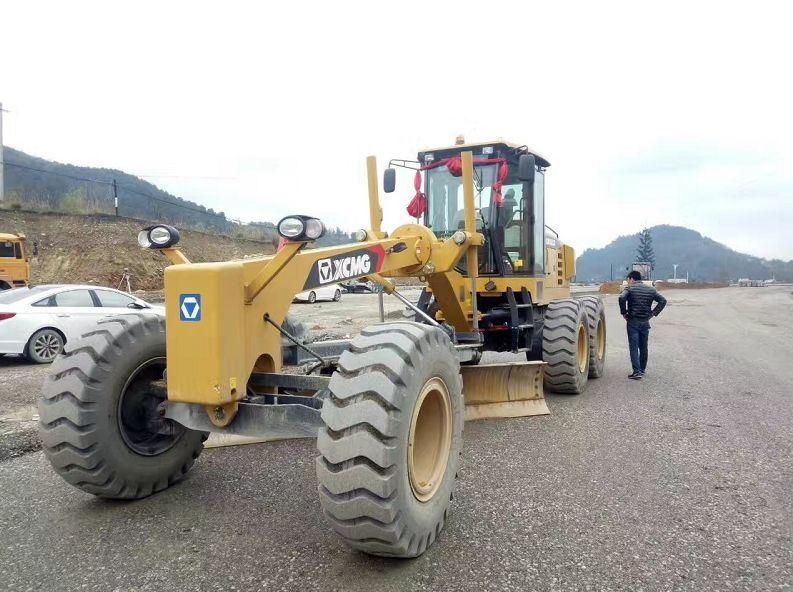

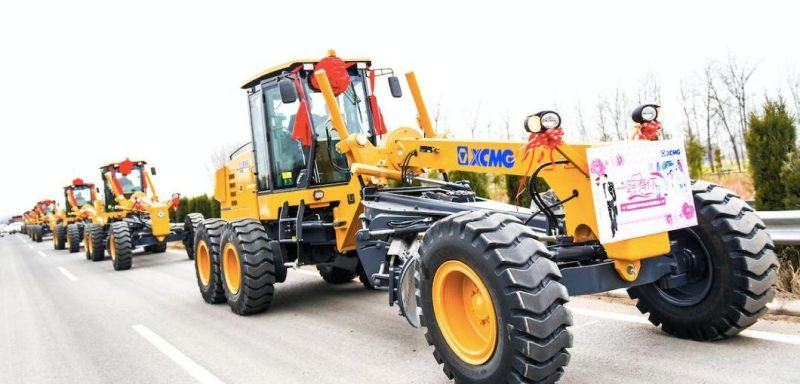

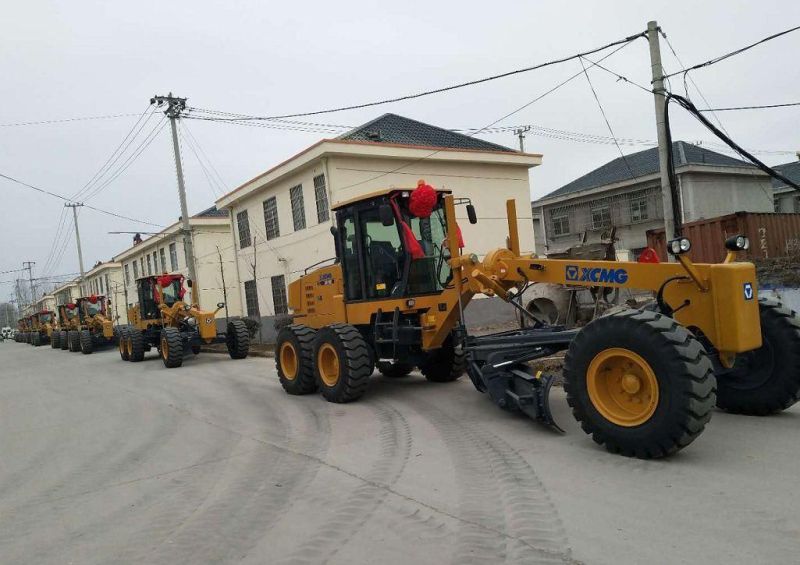

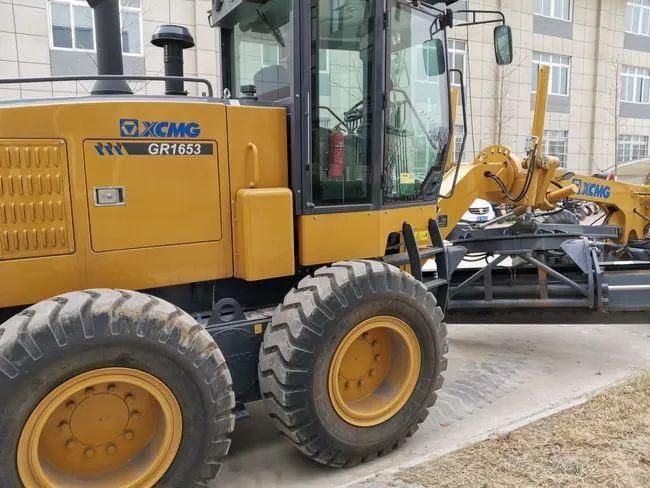

XCMG 160HP Gr1653 Motor Graders China RC Small Mini Tractor Road Wheel Motor Grader Price for Sale
XCMG E-Commerce Inc.- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
- Walking Mode：Wheeled
- Type：Medium-sized Grader
Base Info
- Model NO.：GR1653
- Forward Speed：38km,H
- Reverse Speed：23km,H
- Travtive Force：84kn
- Operating Weight：15000kg
- Specification：8900*2625*3420mm
- Trademark：XCMG
- Origin：Jiangsu, China
- HS Code：84292090
- Production Capacity：10000 Unit,Units Per Month
Description

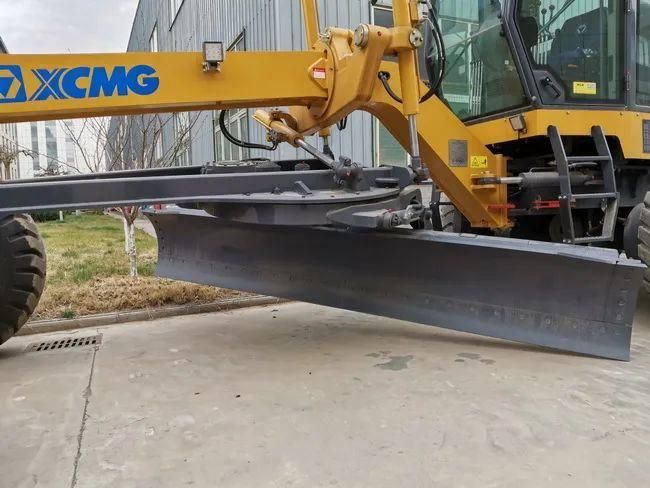

Basic specificationEngine model SC7H180.1G3 Rated power/speed 128kW/2000rpm Dimension(LxWxH) 8900×2625×3420mm Operating weight(Standard) 15000kg Performance specification Travelling speed ,forward 5,8,11,19,23,38 km/h Travelling speed ,reverse 5,11,23 km/h Tractive force(f=0.75) 77KN Max. gradeability 20% Tire inflation pressure 260 kPa Working hydraulic pressure 20 MPa Transmission pressure 1.3~1.8MPa Operating specification Max. steering angle of front wheels ±48° Max. lean angle of front wheels ±17° Max. oscillation angle of front axle ±15° Max. oscillation angle of balance box 15 Frame articulation angle ±27° Min. turning radius using articulation 7.3m Blade Maximum lift above ground 450mm Maximum depth of cutting 500mm Maximum blade position angle 90° Blade cutting angle 28°-70° Circle reversing rotation 360° Moldboard width X height 3965×610mm
