• Model NO.：BW-500,7
• Input Torque(Nm)：335
• Input Rotate Speed (R/Min)：511
• Power：30kw
• Weight：720kg
• Transport Package：in Wooden Case or in Standard Container
• Specification：CE, ISO 9001, GSG
• Trademark：Leadcrete
• Origin：Henan, China
• HS Code：8413509090
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. BW-500/7 Input Torque(Nm) 335 Input Rotate Speed (R/Min) 511 Power 30kw Weight 720kg Transport Package in Wooden Case or in Standard Container Specification CE, ISO 9001, GSG Trademark Leadcrete Origin Henan, China HS Code 8413509090 Production Capacity 1000 Set/Year

Product Description

slurry hydraulic drill mud pump for sale

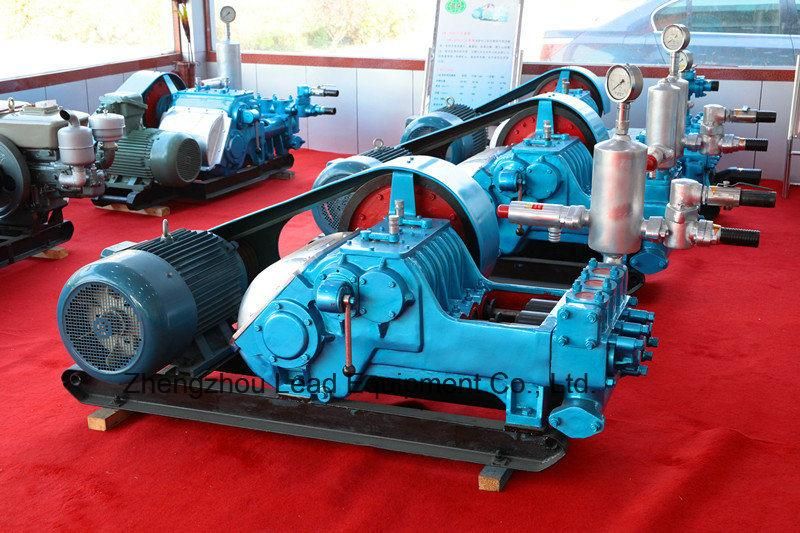

BW-500/7 Mud Pump
BW-500/7 Mud Pump is a horizontal triplex single-action plunger pump. It has the advantages of compact construction, light weight, readily movable and easy to be operated etc. The pump can be driven by electric motor or diesel engine according to the requirement of the customer in order.

Specifications:
1. Small size, light weight
2. Long life
3. Easy handling
4. Delivery time within 15 working days

Technical Data :


Pattern	horizontal triplex single-action plunger pump
Stroke(mm)	110mm
Cylinder dia(mm)	95
Pump Speed (min)	223      168       112         86
Flow(1/min)	650      500       170         100
Pressure(Mpa)	1.8      2.8       4.5         7
Input Torque(Nm)	335
Input Rotate Speed (r/min)	511
Power	30kw
Weight	720kg
