35ton New Waste Material Handling for Scrap Steel Handler Grabber

Sinoway Industrial (Shanghai) Co., Ltd.
  • Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
  • Bucket：Grab Shovel

Base Info

  • Model NO.：SWMH350K
  • Transmission：Hydraulic Transmission
  • Drive Type：Internal Combustion Drive
  • Bucket Capacity：1.0~1.5m³
  • Size：Large-Scale
  • Certification：CE, ISO9001: 2000, ISO14001
  • Condition：New
  • Dual Power：Electrical + Diesel
  • Max. Working Radius：10.2 M
  • Max. Lifting Height：11 M
  • Max. Lifting Moment：525kn.M
  • Warranty：One Year
  • Travel Speed：15km,H
  • Tire：Solid
  • Transport Package：Nude
  • Specification：ISO
  • Trademark：SINOWAY
  • Origin：China
  • HS Code：84294990
  • Production Capacity：100 PCS , Year
  • Package size per unit product：1100.00cm * 310.00cm * 359.00cm
  • Gross weight per unit product：32000.000kg

Description

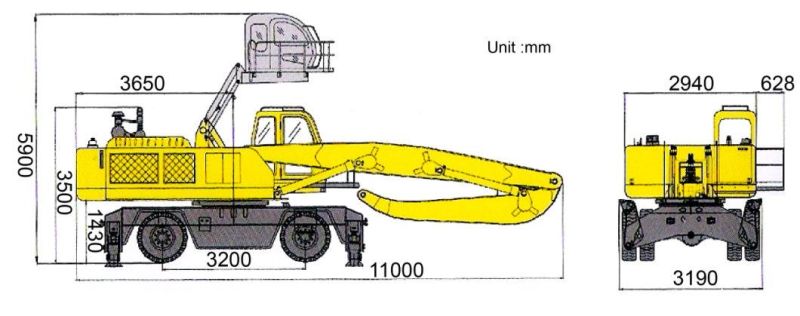

PowerElectrical motor110kwRated speed1480rpmMax. swing speed (electrical motor)5r/minDiesel engine154kwRated speed2200rpmMax. swing speed (diesel engine)8r/minFuel tank capacity440LMain Technical SpecificationMax. lifting capacity@Min. working radius13000kgMax. lifting capacity@Max. working radius2000kgMin. working radius4000mmMax. working radius14000mmMax. lifting moment52.5t.mMax. swing torque107KN.mBoom length8000mmArm length6000mmMain luffing time (Max. speed)Fall boom (electrical / diesel)≤17s/≤11sRise boom (electrical / diesel)≤21s/≤11sAuxiliary luffing time (Max. speed)Fall boom (electrical / diesel)≤20s/≤11sRise boom (electrical / diesel)≤9s/≤6sOutriggerFall stretching (electrical / diesel)≤16s/≤11sFall retracting (electrical / diesel)≤12s/≤10sOutrigger distanceLengthways4500mmTransversal4200mmTravelling SystemMax. travelling speed15km/hMin. turning radius7.6mMax. gradeability18%Min. ground clearance250mmMax. traction force109kNApproach angle15.0°Departure angle15.0°Braking distance (speed: 15km/h)≤6.5mOperating weight35000kg (including clam shell)DimensionA. Overall length11000mmB. Overall width3500mmC. Overall height3190mmD. Wheelbase3200mmE. Max. lifting height of cab5900mmF. Rear-end length/slewing radius3650mmG. Counterweight clearance1430mmH. Upper-structure width2940mm35ton New Waste Material Handling for Scrap Steel Handler Grabber
