Zoomlion 38m Truck Mounted Concrete Pump with Spare Parts (38X-5RZ)

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • Type：Concrete Pump
  • Shotcrete Type：Wet
  • Machining Process：Hydraulic
  • Structure：Cylinder Type
  • Productivity：240m²,h
  • Feeding Height：1400mm

Base Info

  • Model NO.：38X-5RZ
  • Vibrating Amplitude：2.6mm
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Color：White
  • Max. Theor Output：140,90 M3,H
  • Rated Working Pressure：35 MPa
  • Hopper Capacity：550 L
  • Filling Height：1540 mm
  • Transport Package：Roro,Nude
  • Specification：9845*2500*3596 mm
  • Trademark：Zoomlion
  • Origin：China
  • HS Code：87059090
  • Production Capacity：50units,Month

Description

Overview Product Description

Product Parameters



ModelUnit38X-5RZ/100Pump UnitMaximum theorical output                 m3/h  100/60Maximum pressure on concretebar80/150Conc. cylinders (diam. x stroke)               mm230x1650Concrete hopper capacity                         L550Hydraulic circuit                                 OpenBoom SectionMaximum vertical reachm37.1Maximum horizontal distance                    m32.8Minimum unfolding height                  m8Section numbers                       5Rotating angle ±270°End hose lenght m3 Detailed Photos

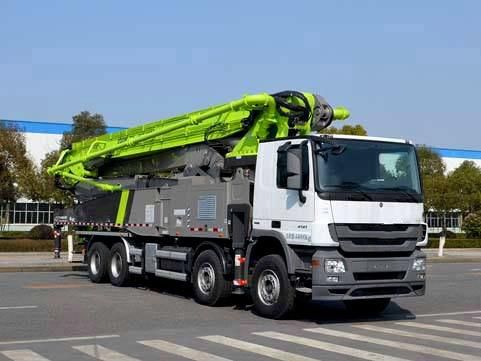

Zoomlion 38m Truck Mounted Concrete Pump with Spare Parts (38X-5RZ)

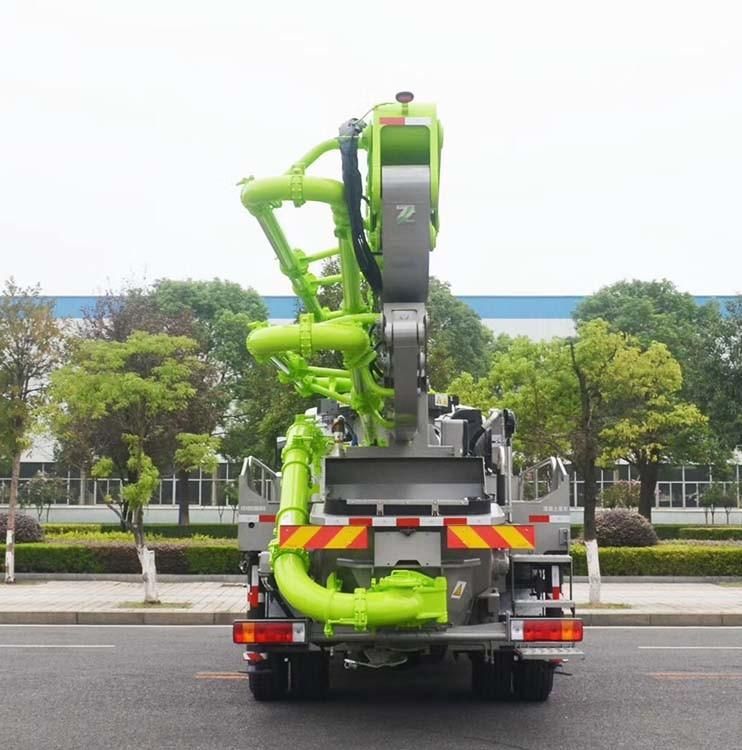

Zoomlion 38m Truck Mounted Concrete Pump with Spare Parts (38X-5RZ)

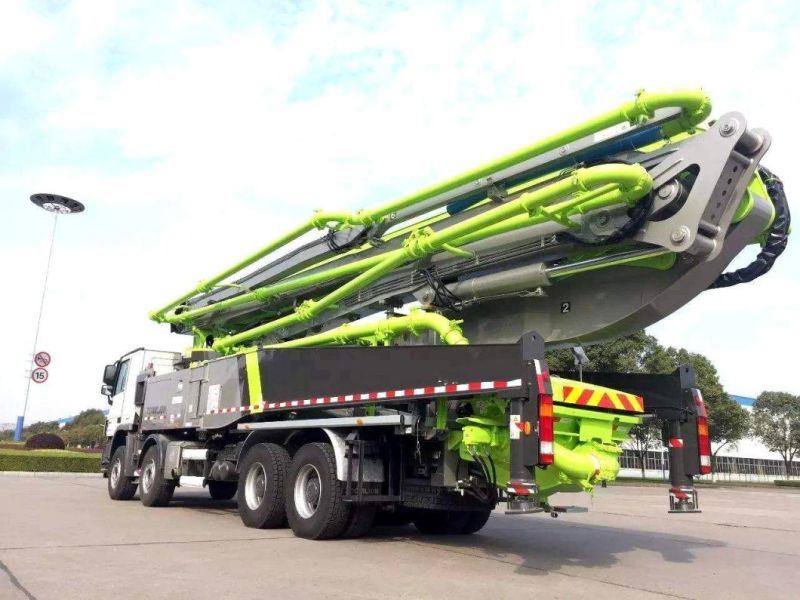

Zoomlion 38m Truck Mounted Concrete Pump with Spare Parts (38X-5RZ)

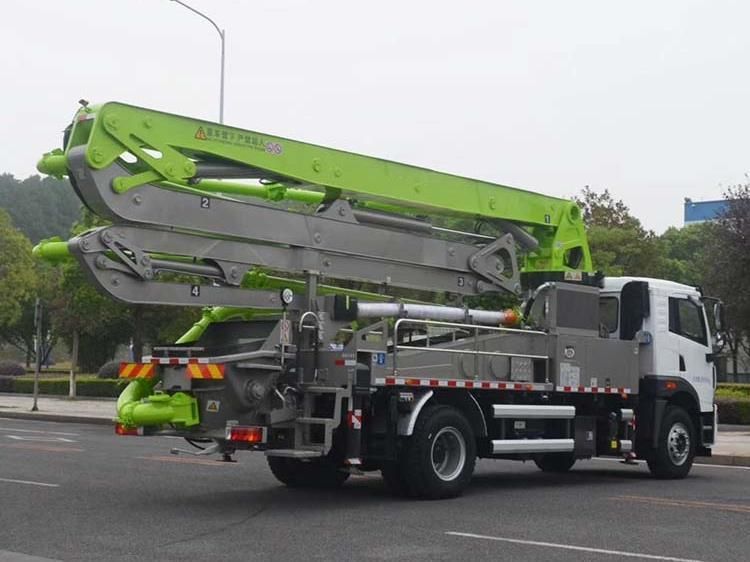

Zoomlion 38m Truck Mounted Concrete Pump with Spare Parts (38X-5RZ)Company Profile
