• Model NO.：skid steer loader
• Transmission：Power
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Usage：Universal Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Color：Yellow
• Tipping Load：1500kg
• Maximum Breakout Force：18kn
• Engine Model：4D27g31
• Rated Power：49.3,36.8HP,Kw
• Rated Speed：2500rpm
• Cooling Mode：Water-Cooling
• Maximum Speed：14km,H
• Maximum Operating Height：3878mm
• Bucket Hinge Pin Height：3057mm
• Cabin Top Height：1960mm
• Maximum Unloading Height：2375mm
• Transport Package：Naked in Container
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8429510000
• Production Capacity：10000PC,Year

DescriptionUnitParameter valueRated loadkg1080Tipping loadkg2160Operating weightkg345037003650Maximum breakout forcekN22EngineManufacturer YANMARWeichaiModel 4TNV98TWP4G80E231WP4.1G82E301Rated powerHp/kw82.2/61.380/6080/60Rated speedrpm250023002400Cooling mode Water-coolingPerformance parameterOperation mode Pilot hydraulic control & multi-function electronic controlTire standard 12-16.5Maximum speedKm/h12.5Hydraulic systemHydraulic flow rateL/min9587.491.2Optional large flow 142.5131136.8Hydraulic pressurebar210Maximum operating heightmm4180Bucket hinge pin heightmm3205Cabin top heightmm1960Maximum horizontal height of bucket bottommm2997Length without bucketmm2660Length with bucketmm3610Toppling angle°40Maximum unloading heightmm2450Ground-bucket angle°30Rotating angle of bucket at highest point°83Unloading distancemm570Wheel basemm1188Departure angle°25Ground clearancemm205Front radius of turning circle (without bucket )mm1320Front radius of turning circle (with bucket)mm2230Rear radius of turning circlemm1715Length of tailmm1055Wheel trackmm1500Tire edge widthmm1807Bucket edge widthmm2000Bucket capacity (stacking height)m³0.6Bucket capacity (tiling)m³0.47Diesel tank capacityL95Capacity of hydraulic oil tankL70

Characters of skid steer wheel loader

Strong and Efficient Power Transmission System

The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.

The static hydraulic drive technology adopted features stable drive and high efficiency and reliability.

The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.

Flexible Operations

Compact structure, low turning radius, and strong site adaptability.

The quick-change coupling equipped can change attachments rapidly in the construction site.

The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.

Incomparable Multi-functionality

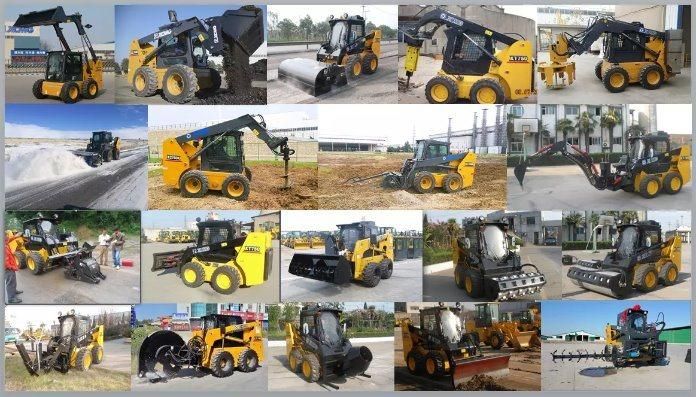

The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.

Safe and Comfortable Operating Environment

The ROPS&FOPS cab and the seat belt, bumper, fire extinguisher, and safety hammer equipped guarantee the personal safety of the operator. The cab features large space, adjustable seats, and comfortable operations.

The standard double-accelerator control model can use the pedal accelerator or work at preset constant power to save the operation labor.

Convenient Maintenance

The cab can be tilted backward for a large angle to make the repair and maintenance portions more accessible.

The rear hood and upper hood can be opened conveniently and all units and pipelines are easily accessible to save the repair and maintenance labor and time.
