• Model NO.：sd61
• Structure：Spiral Type
• Productivity：180m3,H
• Feeding Height：1370mm
• Vibrating Amplitude：1.2mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Air Compressor：3kw
• Electromagnetism Valve：1
• Drawbar Pin：1
• Batching Control Meter：Made in China
• Circuit Breaker：Delixi
• Connecting Cable and Accessories：Made in China
• Cement Silo：100t,150t,200t,300t
• Cement Screw：φ219*8
• Hoisting Mixer System：Discharge Height 4.2m
• Aggregate Hoisting and Measuring System：Made in China
• Aggregate Feeding Type：Belt Conveying Type
• Concrete Mixer Power：90 - 215.5kw
• Name：Ready Mix Concrete Plant
• Control System：Siemens PLC+PC
• After-Sales Service Provided：Field Installation, Commissioning and Training
• Transport Package：Naked in Container
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8474310000
• Production Capacity：5000PC,Year

Models

HZS180

Production(m3/h)

180

Mixer

Models

JS3000

Mixing power(kw)

2*55

Output capability(m3)

3

Aggregate size(mm)

≤150

Hopper

Hopper capacity(m3)

20

Hopper quantity

4

Conveyor capability(t/h)

600

Scope and precision of weighing

Aggregate(kg)

7000±2%

Cement(kg)

1800±1%

Water(kg)

800±1%

Admixture(kg)

30±1%

Total power(kw)

172

Height of discharge(m)

≥3.9

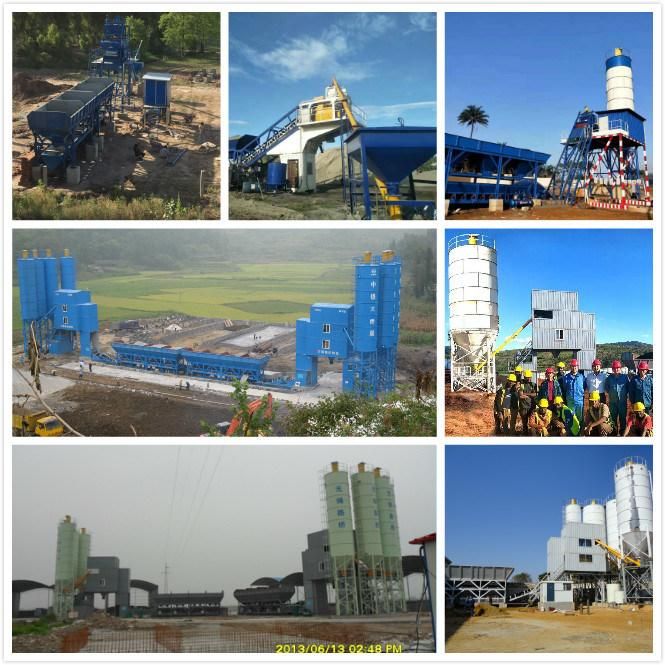

Our Cases
