Cummins 220HP Crawler Bulldozer with Rops for Earth Moving

Sinoway Industrial (Shanghai) Co., Ltd.
  • Type:Universal Type
  • Transmission:Hydraulic - Mechanical Transmission
  • Walking Mode:Crawler
  • Load and Unload Method:Bulldozer
  • Engine Power:147~515kw
  • Certification:ISO9001: 2000

Base Info

  • Model NO.:SWD220Y
  • Condition:New
  • Color:Yellow
  • Track Width:560mm
  • Blade Type:Straight
  • Blade Height:1590mm
  • Max. Tractive Force:281kn
  • Engine Make:Cummins
  • Fuel Tank Capacity:450L
  • Blade Capacity:5.45m3
  • Sprocket:Segmented
  • Transport Package:Naked
  • Specification:ISO
  • Trademark:SINOWAY
  • Origin:China
  • HS Code:84294990
  • Production Capacity:300 PCS,Month

Description

Basic Info.

Model NO. SWD220Y Condition New Color Yellow Track Width 560mm Blade Type Straight Blade Height 1590mm Max. Tractive Force 281kn Engine Make Cummins Fuel Tank Capacity 450L Blade Capacity 5.45m3 Sprocket Segmented Transport Package Naked Specification ISO Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 300 PCS/Month

Product Description

SWD220Y Crawler Bulldozers' Advantages

1 Powerful Cummins engine features strong power and high efficiency and energy-saving.
2 The high-reliability power shift transmission, stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission efficiency.
3 The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating.
4  With Komatsu technology,the full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame.
5 The semi-rigid suspension traveling system increases the ground area of tracks and improves the traction force of vehicle.

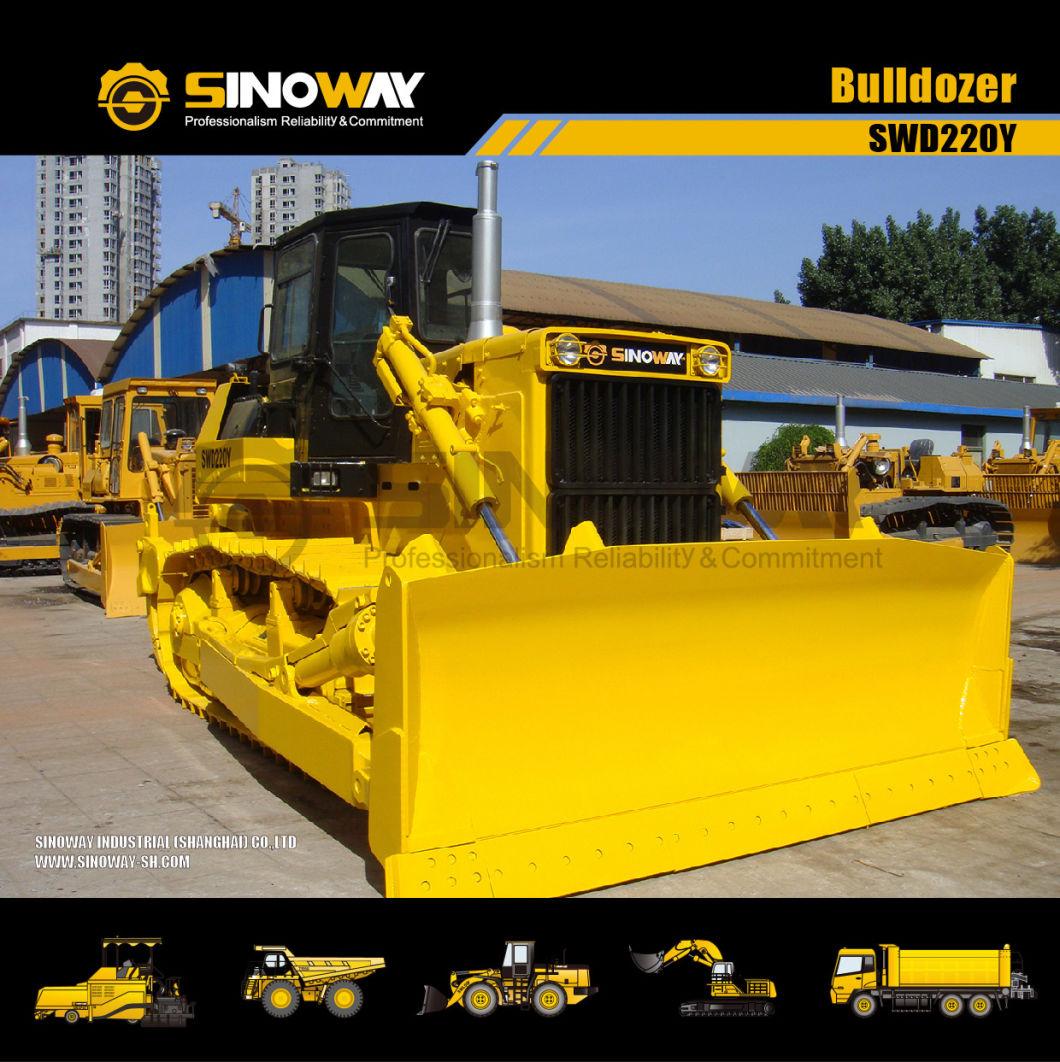

Cummins 220HP Crawler Bulldozer with Rops for Earth Moving

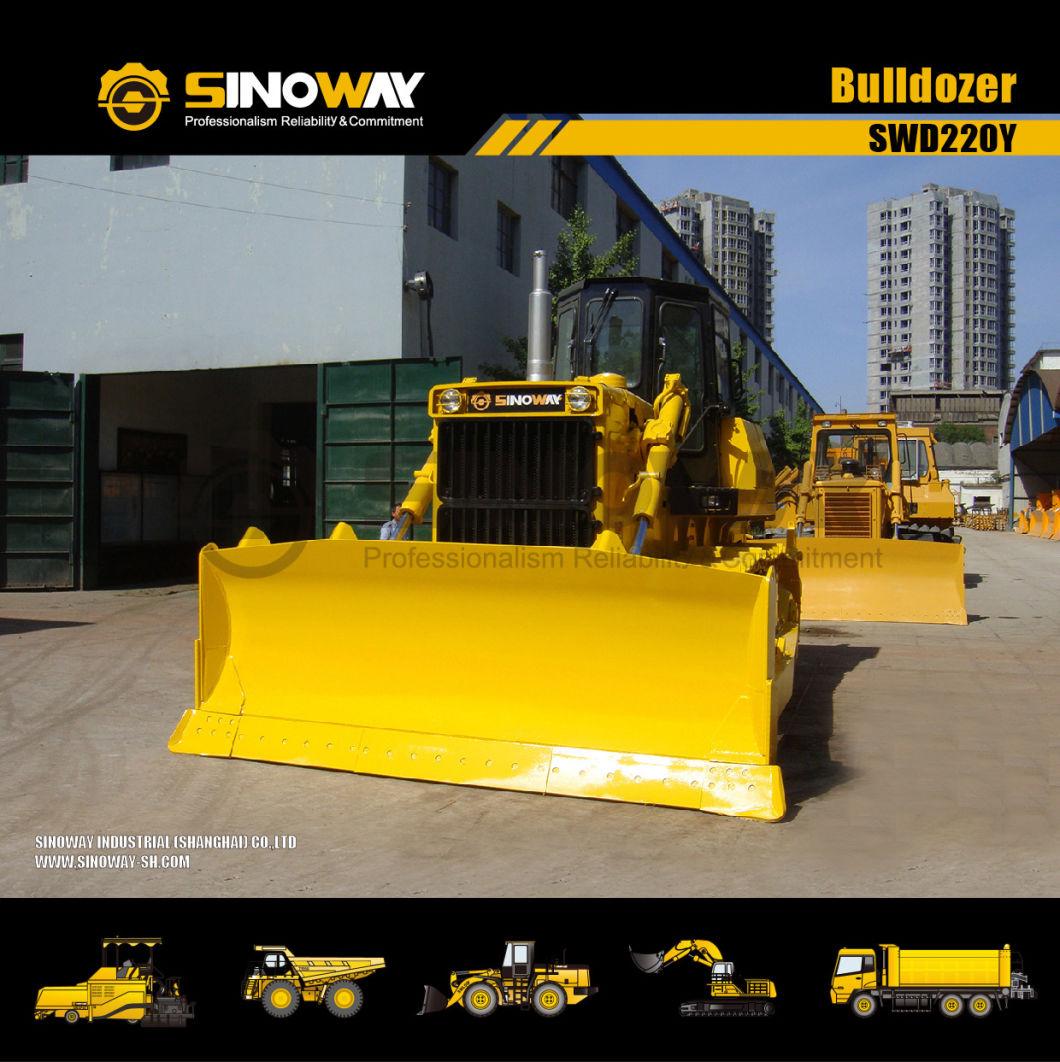

Cummins 220HP Crawler Bulldozer with Rops for Earth Moving
Cummins 220HP Crawler Bulldozer with Rops for Earth Moving
Engine
ModelCummins
TypeSix-cylinder,water-cooled turbocharged,mechanical injection
Rated power162KW
Rated speed1800rpm
Implement Hydraulic System
Hydraulic flow rate257L/min
Hydraulic pressure13.7MPa
Pump typeDouble gear pump
Control valveHydraulic operated,pilot control
Under Carriage System
SprocketSegmented
Number of track rollers (each side)6
Number of carrier rollers (each side)(4 single, 2 double)
Number of front idler (each side)21
Track typeSingle grouser
Track tensionHydraulic
Track pitch216mm
Track width560mm
Number of track shoes (each side)38
Track length on ground2730mm
Ground clearance405mm
Main Technical Specification
Operating weight(without ripper)25500Kg
Ground pressure(without ripper)0.078MPa
Grade ability58%
Overall dimensions (L×W×H,without ripper)5750×3725×3575mm
Max. tractive force200KN
Working Equipment
Blade typeStraight
Width3725mm
Height1315mm
Max. digging depth540mm
Max. lift above ground1210mm
Tilting angle11°
Blade capacity5.45m3
Transmission System
Gear boxPower shift, forced lubrication,planetary gear
Torque converter3 elements, single stage,single phase
Final driveSpur gear, double reduction,splash lubricated
Gear shifts(Forward/Reverse)Travelling speed(km/h)F3/R3
Forward/Reverse I3.6/4.3
Forward/Reverse II6.5/7.7
Forward/Reverse III11.2/13.2
Service Capacities
Fuel tank450L
Water tank79L
Steering clutchWet, multiple disc, spring loaded, hydraulically released
Steering brakeWet, band brake, operated with hydraulic booster, valve inner linkage

Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.

For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.
ConditionBrand New
WarrantyOne year or 2000 working hours, whichever comes earlier.
Shipment TermsFOB, CFR, CIF, CIP DAF
Company NameSinoway Industrial (Shanghai) Co.,Ltd
Add30 A1, No.58, New Jinqiao Road ,Shanghai, China
Tel+86 21 68598616
Fax+86 21 50191951
Websitesinoway-sh.en.made-in-china.com
