New Xs203j 20ton Mechanical Compact Roller with A/C
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Oversea
- Warranty：1 Year
- Type：Road Roller
- Working Method：Vibration
- Axle：Triaxial Three-Wheel
- Grinding Wheel Type：Tire Grind
Base Info
- Model NO.：Xs203j
- Compaction Depth：35cm
- Engine Type：Diesel Engine
- Travel Speed：40cm,s
- Centrifugal Force：40KN
- Certification：EPA, CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Color：Yellow
- Product Name：20ton Road Roller
- Engine Model：Sc8d175.1g2b1 128kw
- Transport Package：Nude, Suitable for Shiping
- Specification：ISO
- Trademark：ORIEMAC
- Origin：Jiangsu, China
- HS Code：84294019
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. Xs203j Compaction Depth 35cm Engine Type Diesel Engine Travel Speed 40cm/s Centrifugal Force 40KN Certification EPA, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Color Yellow Product Name 20ton Road Roller Engine Model Sc8d175.1g2b1 128kw Transport Package Nude, Suitable for Shiping Specification ISO Trademark ORIEMAC Origin Jiangsu, China HS Code 84294019 Production Capacity 100 Sets/MonthProduct Description

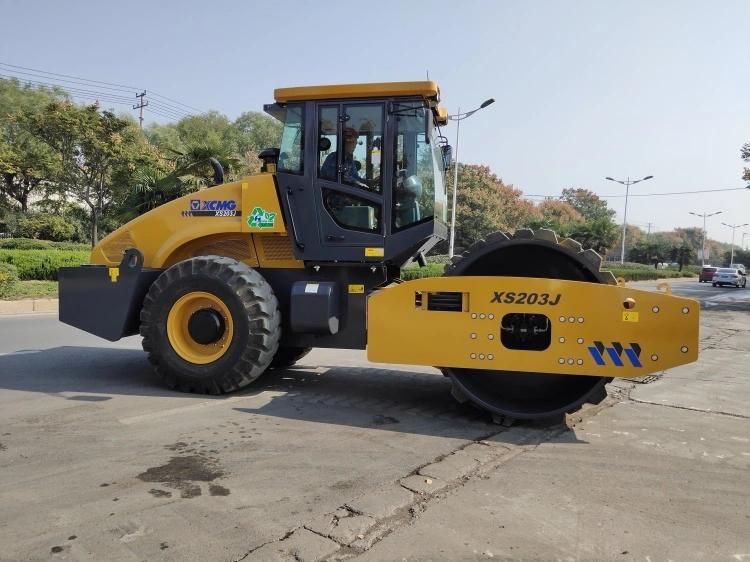

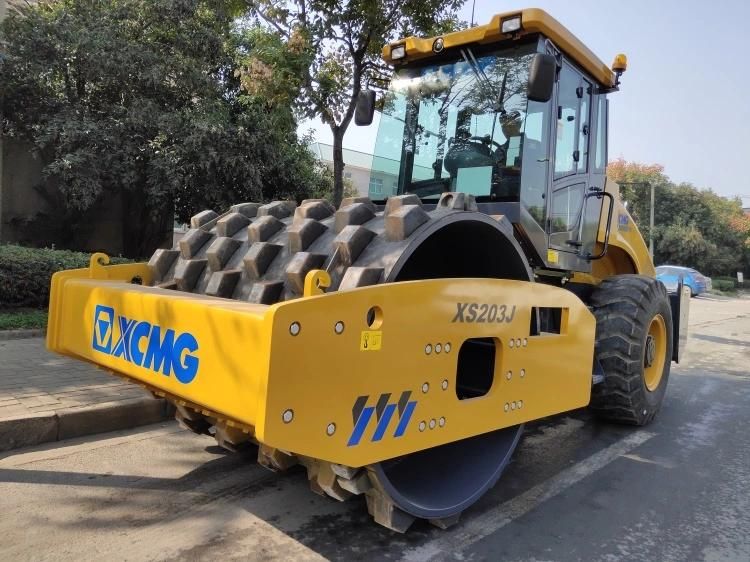

20t single drum vibratory Road Roller prices XS203J
1. Max. Operating weight: 20T2. Theoretical gradeability: 30%
3. Hydraulic transmission
4. XG brand
5. CE certificate
The XS202J/XS222J/XS222JE is a super heavy-duty vibratory roller with mechanical drive designed and built to offer unrivaled performance. Representing XG's new generation of mechanical drive vibratory rollers, the machine sets new standards for operation, propulsion, compaction, reliability and serviceability in the industry.
Streamline Design
| Item | Unit | XS203J |
| Operating weight | kg | 20000 |
| Weight on front drum | kg | 10000 |
| Static linear pressure | N/cm | 470 |
| Speed range | km/h | |
| Speed I | 2.63 | |
| Speed II | 5.3 | |
| Speed III | 8.6 | |
| Theoretical gradeability | % | 30 |
| Min. external turning radius | mm | 6500 |
| Steering angle | ° | ±33 |
| Oscillating angle | ° | ±10 |
| Vibration frequency (high/low) | Hz | 33/28 |
| Nominal amplitude (high/low) | mm | 1.9/0.95 |
| Excitation force (high/low amplitude) | kN | 353/245 |
| Drum diameter | mm | 1600 |
| Drum width | mm | 2130 |
| Engine model | SC8D175.1G2B1 | |
| Type | Water cooled, pressurized | |
| Rated power @2000 r/min | kW | 128 |
| Engine oil consumption | g/kW.h | 223 |
| Hydraulic oil tank capacity | L | 170 |
| Fuel tank capacity | L | 240 |
