• Model NO.：WZ30-25
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Backhoe Loader：Front End Loader
• 1.0m3 Bucket Capacity：0.3m3 Digger Capacity
• Yuchai Engine：65kw
• Transport Package：Bare Package Fit in 40 Hq Container
• Specification：CE
• Trademark：Evangel
• Origin：Xuzhou, China
• HS Code：84292090
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. WZ30-25 Drive Type Internal Combustion Drive Bucket Capacity 0.5~1.0m³ Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Backhoe Loader Front End Loader 1.0m3 Bucket Capacity 0.3m3 Digger Capacity Yuchai Engine 65kw Transport Package Bare Package Fit in 40 Hq Container Specification CE Trademark Evangel Origin Xuzhou, China HS Code 84292090 Production Capacity 30 Sets Per Month

Product Description

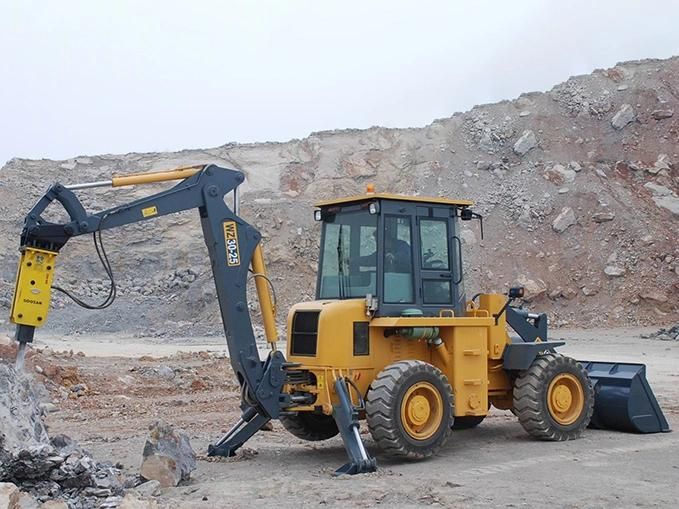

Popular Backhoe Loader with Price Brand Backhoe Loader WZ30-25:
1. YUCHAI Engine ( Rated power: 65 kw)
2. Four wheels drive
3. Hydraulic manipulation and steering
Pilot control system for excavating part
4. Wing style outrigger
5. Adjustable steering wheel
6. Bucket Capacity: 1.0m3
7. Digger Capacity: 0.3m3
8. Operating Weight: 9500kg
9. Dimension(L*W*H): 8000*2200*3350mm

The imported engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve the use security of the machine.

Description	Specifications	Unit
Bucket  capacity(heaped)	1.0	m3
Digger  capacity	0.3	m3
Dumping  clearance	2700	mm
Dumping  reach	950	mm
Max.   steering  angle	± 35	°
Max.   steering  angle  of  dig  working  device	± 85	°
Tracing  speed  (F/R)	0-6.2	km/h
Tracing  speed (F/R)	0-12	km/h
Tracing  speed     (F/R)	0-20	km/h
Tracing  speed    (F/R)	0-33	km/h
Back  speed	0-8	km/h
Back    speed	0-28.5	km/h
Diesel	Yuchai
Model	YC4108
Modality
Rated  power	65	kw
Rated  speed	2500	r/min
Wheel  base	2600	mm
Tread	1700	mm
Tires	16/70-24
Max.   digging  depth	4400	mm
Max.   digging  radius	5471	mm
Overall  dimension(L  x  W  x  H)	8000  x  2200  x  3350	mm
Operating  weitght	9500	kg
