• Model NO.：YZC3.5H
• Travel Speed：10km,H
• Centrifugal Force：30*2kn
• Certification：CE, ISO 9001:2000
• Condition：New
• Operating Weight：3500kg
• Rolling Width：1250mm
• Grade Ability：30%
• Vibration Frequency：50Hz
• Transport Package：4sets,20′gp Container
• Specification：2900*1370*2600mm
• Trademark：SINOHENG
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. YZC3.5H Travel Speed 10km/H Centrifugal Force 30*2kn Certification CE, ISO 9001:2000 Condition New Operating Weight 3500kg Rolling Width 1250mm Grade Ability 30% Vibration Frequency 50Hz Transport Package 4sets/20′gp Container Specification 2900*1370*2600mm Trademark SINOHENG Origin Jiangsu, China HS Code 84294019 Production Capacity 500 Sets/Month

Product Description

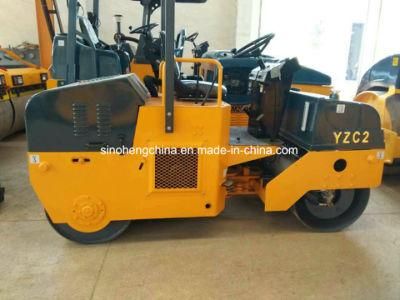

Mini Full Hydraulic Vibratory Road Roller Soil Compactor YZC3.5HApplications
City road, Inter-city and township road, Stadium and other projects etc.. This roller is suitable for compacting and repairing the asphalt pavement, general road base and highway.

Main Features

1. Original hydraulic parts of international brand, full hydraulic road roller with double drive and vibration system
2. Articulated frame and flexible steering, streamlined design and nice appearance
3. The fore cover can be turned up in a big angel for easily maintenance
4. Equipped with electric control pressurized sprinkling system
5. A trailer is provided for transportation
6. The imported KUOBOTA diesel engine is optional

Technical Data


Operating weight	3500	kg	Theoretical amplitude of vibration	0.45	mm
Diameter of vibrating drum	φ760	mm	Moving speed Range	0-10	km/h
Rolling width	1250	mm	Grade ability	30%
Static Linear Pressure	140	N/cm	Diesel engine model	ZN390Q
Activating force	30*2	KN	Rated power	25kw@2600r/min
Vibration frequency	50	Hz	overall dimensions         L*W*H	2900×1370×2600	mm
