• Model NO.：NWS-2000
• HS Code：8474900000
• Production Capacity：200PCS,Year

Basic Info.

Model NO. NWS-2000 HS Code 8474900000 Production Capacity 200PCS/Year

Product Description

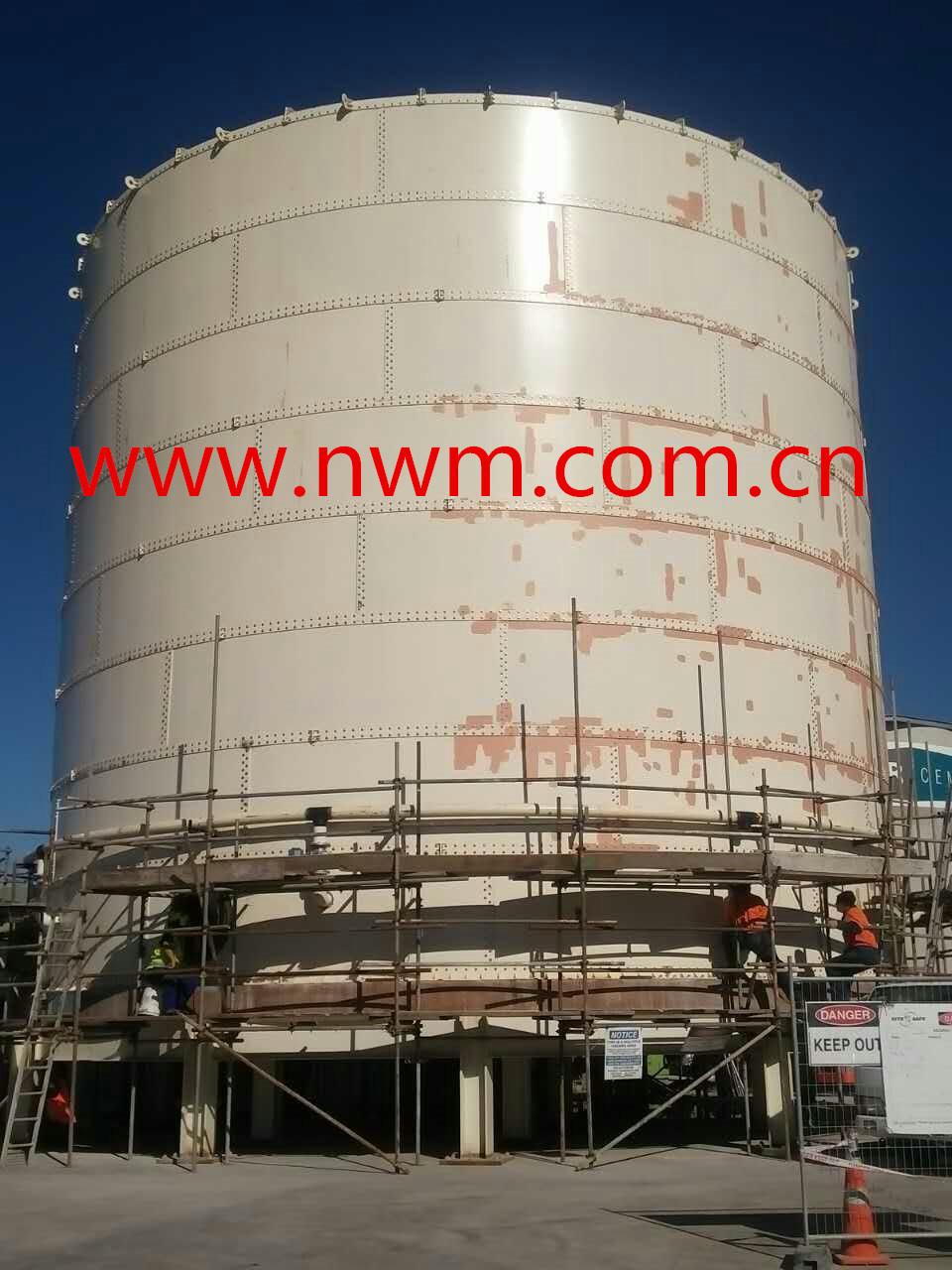

The Sectional silo is also called piece assembly silo, it's bolt connection type silo, the silo body can be connected by high strength bolts, so no matter what size you need, all parts can be loaded into container, which is easy to transport and save freight. The diameter is 3~10m, silo volume can be up to 2000m3.

With mature technology, the silo is reliable in strength and airtight and can be produced very economically. The separate segments- sealed according to the special applications are prefabricated in units, which can be transported by all usual possibilities. The silos will be delivered with oblique, flat or without roofs.
Used for: Powdery and coarse bulk materials as cement, lime, gypsum, fly ash, different binder materials, gravel, limestone, sand and different chippings.

Application: Loading and unloading plants, Dosing-Weighing and Mixing plants, Preparation plants, transitional silo.
Advantages: Designed and statical optimized silos, precise elements due to industrial fabrication.
Short and cost-economic construction, erection seasonally independent.
The discharge height depends on the method of discharge, withdrawal by conveyor or bulk loading on truck. The cone angle can be designed according to customer's requirements.

silo  volume(T)	outside diameter(mm)	cylinder height(mm)
50	3100	4681
60	3100	6200
100	3100	10755
150	3300	12302
150	3800	9239
200	4500	9265
250	4500	12300
300	5000	10783
400	5700	12300
500	6500	12302
800	8000	10783
1000	8000	13820
1500	10000	15337
2000	10000	18378
