12ton Wheel Loader Loading Shovel Loader with Good Selling
Sinoway Industrial (Shanghai) Co., Ltd.- Certification：ISO
- Condition：New
- Rated Load：>9t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：SWL120F
- Type：Large Loader
- Brand：Sinoway
- Model：Swl120f
- Engine Power：570HP
- Dump Height：4337mm
- Dump Reach：2865mm
- Color：Yellow
- Operating Weight：52 Ton
- Warranty：One Year
- Transport Package：Nude
- Specification：ISO9001
- Trademark：SINOWAY
- Origin：China
- HS Code：84314990
- Production Capacity：50PCS,Month
Description
Basic Info.
Model NO. SWL120F Type Large Loader Brand Sinoway Model Swl120f Engine Power 570HP Dump Height 4337mm Dump Reach 2865mm Color Yellow Operating Weight 52 Ton Warranty One Year Transport Package Nude Specification ISO9001 Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 50PCS/MonthProduct Description
AdvantageHigh Efficiency
Quick action: large digging force in combination with fast travel speed for quick operation and high efficiency
Flexible steering: load sensing steering system for effortless operation and high efficiency.
Strong power: Dual-pump flow converge system for better energy utilization.Dual-pump flow converge technology adopted to reduce working pump displacement for high reliability, energy saving and quick action.
Extended Service Life
Heavy duty transmission case offers more reliable power transmission. Key pivot points feature two-level dust proof that keeps grease in and dust out for reduced wear on pin shaft and extended service life to reduce operation and maintenance cost. The bucket features wear-resistant cutting edge and teeth for extended service life.
Robust Frame Structure
Heavy-duty robust frame structure features high strength thick steel. Finite element analysis is incorporated in the design of key structural parts to allow the machine to suit various demanding condition.
Safe driving and environment protection
FOPS&ROPS certified cab for operator safety.

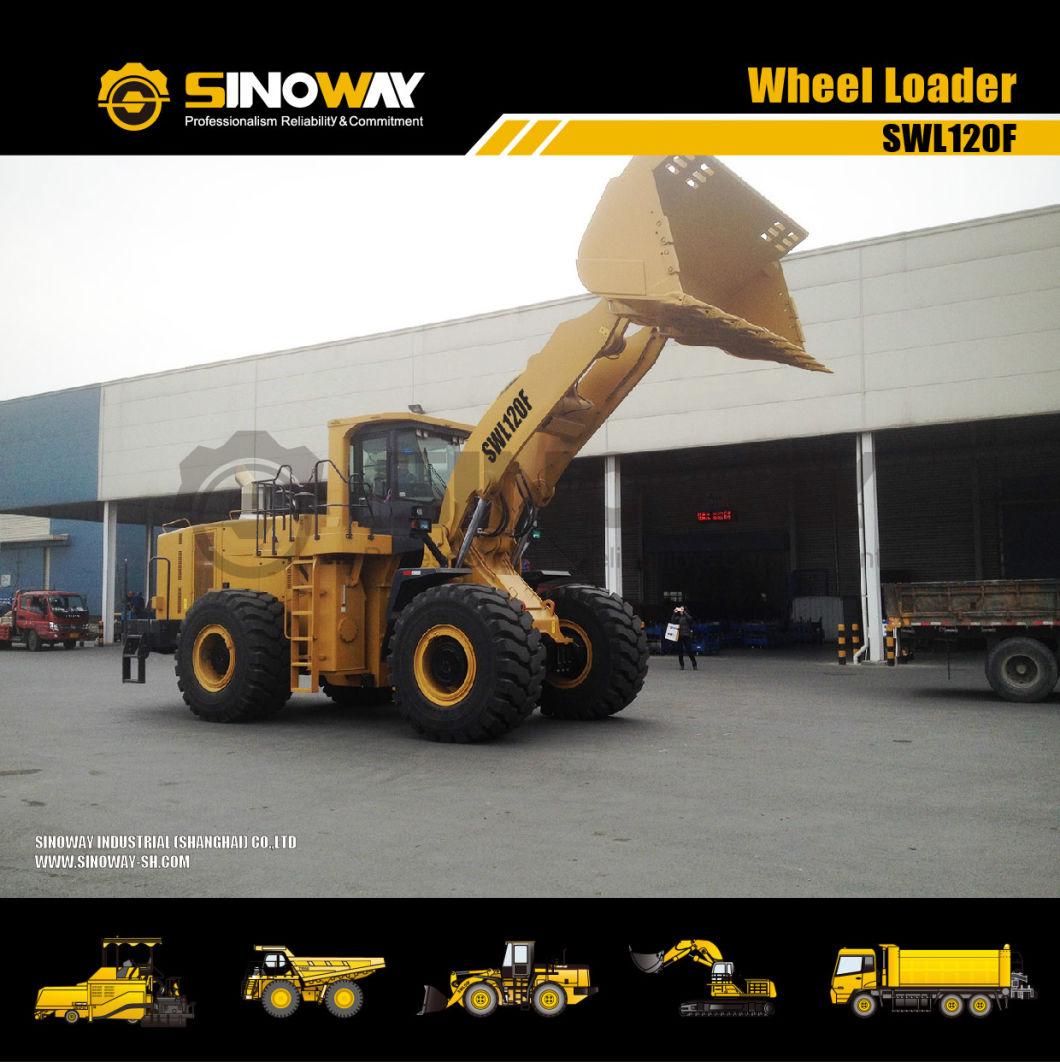

Product Show
Specification
| Main Technical Specification | |
| Engine make | Cummins |
| Rated power | 418KW |
| Rated speed | 2000rpm |
| Rated load | 12000kg |
| Bucket capacity | 6.5m³ |
| Dump height | 4337mm |
| Dump reach | 2865mm |
| Max breakout force | 398kN |
| Total cycle time(Lifting+lowering+dumping) | ≤16.5s |
| Min. turning radius (outside of bucket) | 7618mm |
| Max. traveling speed | 33km/h |
| Operation weight | 51600kg |
| Overall dimension | 12290×3886×4545mm |
| Wheel base | 4500mm |
