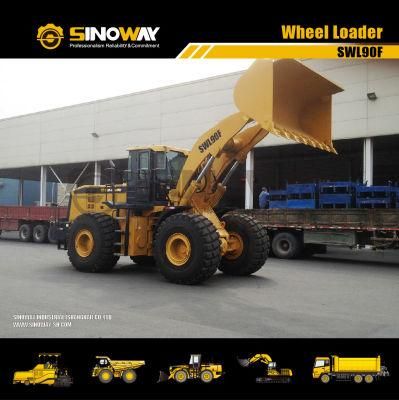

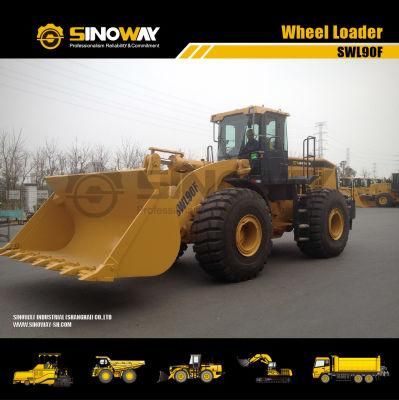

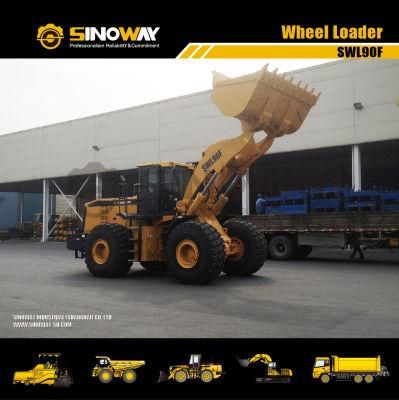

- Model NO.：SWL90F
- Type：Large Loader
- Brand：Sinoway
- Model：Swl90f
- Engine Make：Cummins
- Transmission Make：Zf
- Min. Turning Radius：6200mm
- Application：Mining and Construction
- Warranty：3000 Working Hours
- Color：Yellow
- Transport Package：Nude
- Specification：ISO
- Trademark：SINOWAY
- Origin：China
- HS Code：84314990
- Production Capacity：20 PCS,Month
| Items | Unit | Parameters |
|---|
| Rated bucket capacity | m3 | 5 |
| Rated load | kg | 9000 |
| Operating weight | kg | 29500 |
| Max. traction | kN | 245 |
| Max. breakout force | kN | 260 |
| Boom lifting time | s | 7 |
| Total time of 3 devices | s | 12.5 |
| Tyre | | 29.5R25 |
| Overall dimension | mm | 9400×3500×3770 |
| Engine model | QSM11-C335 |
|---|
| Type | Water cooling, 4 stroke |
| Suction | Turbo charging, air intercooler |
| Cylinder amount | 6 |
| Cylinder bore | |
| Piston displacement | 10.8L |
| Speed controller | Electronic, whole process speed control |
| Power | 250kW(335HP) |
| Rated revs | 2100rpm |
| Fuel system | Direct injection |
| Max. torque | 1647nm@1400rmp |
| Lubrication system | Gear pump forced lubrication |
| Filter | Full flow type |
| Air filter | (double element, dust discharge and dust indicator) dry type |
| Hydraulic torque converter | |
| Type | Single stage, 2 phase, 3 elements |
| Transmission |
|---|
| Type | Planetary gear |
| Travel speed km/h | |
| Drive system | 4WD |
| Front wheel | Fixed, full floating type |
| Rear wheel | Central pin bearing, full floating type, 26° swing |
| Reduction gear | Spiral bevel gear |
| Differential gear | Common gear |
| Final drive | Planetary gear, first stage reduction |
| Service brake | Full hydraulic wet type disc brake (4 wheels) |
| Parking brake | Wet type disc brake |
| Emergency brake | Also used as parking brake |
| Type | Articulation, full hydraulic power steering |
| Steering angle | bidirectional 40° |
| Min. turning radius(by outer wheel center) | 6200mm |
| Steering system |
|---|
| Hydraulic pump | Gear pump |
| Max. flow | 168ltr/min |
| Pressure of safety valve | 19MPa |
| Steering cylinder |
|---|
| Type | Double acting piston type |
| Cylinder amount | 2 |
| Cylinder bore × stroke | 115mm×445mm |
| Loading control |
|---|
| Hydraulic pump | Gear pump |
| Rated flow | 294+168I/min |
| Pressure of safety valve | 20MPa |
| Operating cylinder |
|---|
| Type | Double acting piston |
| Cylinder amt. - cylinder bore × stroke: | |
| Boom | 2-180mm×880mm |
| Bucket | 1-220mm×590mm |
| Control valve | Single handle |
| Control device |
|---|
| Boom | Lifting, retaining, descending, floating |
| Bucket | Back inclination, retaining, dumping |
| Cylinder operating time |
|---|
| Lifting | 7 s |
| Dump | 1.2 s |
| Descending (empty bucket) | 4.3 s |
| Cooling system | 65L |
| Fuel tank | 420L |
| Engine | 33L |
| Hydraulic system | 340L |
| Drive axle (each) | 66L |
| Transmission | 64L |
The product structure and parameters will be subject to change with technical innovation. Please refer to the actual product if the information does not match.
