Cheap Price High Quality Second Hand Used Excavator for Sale
Shandong Yuncheng Chengda Trailer Manufacturing Co., Ltd.- Type：Wheel Excavator
- Usage：Marine Excavator, Mining Excavator
- Bucket：Grab Shovel
- Transmission：Mechanical Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：>1.5m³
Base Info
- Model NO.：330BL
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：Used
- Specification：80Cubic
- Origin：Shanghai
- Production Capacity：5000units
Description
Basic Info.
Model NO. 330BL Size Medium-Sized Certification CE, ISO9001: 2000 Condition Used Specification 80Cubic Origin Shanghai Production Capacity 5000unitsProduct Description

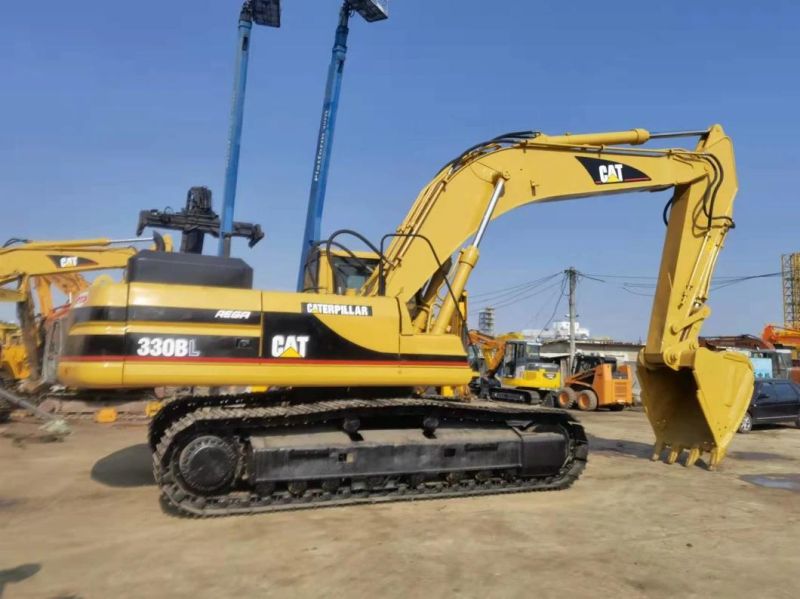

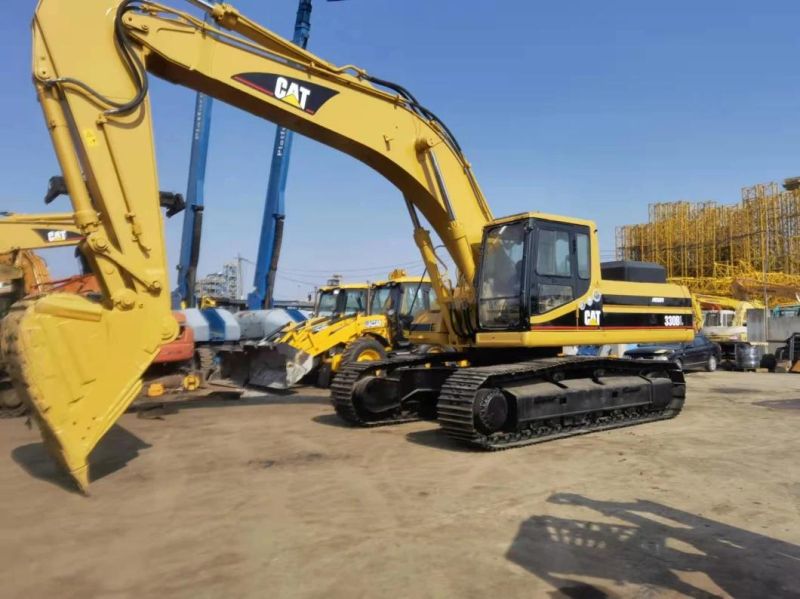

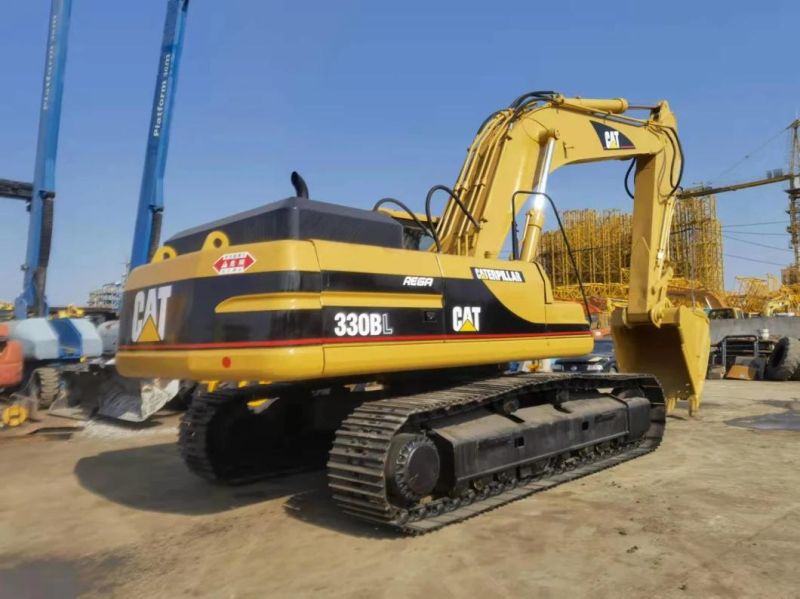

PRODUCT DISPLAY
Technical specification
Bucket
| Maximum Bucket Capacity | 2.8 cu yds (2 m) |
| Minimum Bucket Capacity | 1.7 cu yds (1 m) |
| Reference Bucket Capacity | 2 cu yds (2 m) |
Dimensions
| Ground Clearance | 1.7 ft (1 m) |
| Height - Top of Cab | 10.4 ft (3 m) |
| Length of Track on Ground | 13.3 ft (4 m) |
| Removal Counterweight Clearance | 4.2 ft (1 m) |
| Tail Swing Radius | 11.5 ft (4 m) |
| Width to Outside of Tracks | 11 ft (3 m) |
DRIVE SYSTEM
| Maximum Drawbar Pull | 60250 lbs (27,329 kg) |
Engine
| Aspiration | Turbocharged and Aftercooled |
| Bore | 4.8 in (12 cm) |
| Displacement | 640 cu in (0 m) |
| Engine Model | Cat 3306TA |
| Gross Power | 236 hp (176 kw) |
| Net Power | 222 hp (166 kw) |
| Net Power - EEC 80/1269 | 222 hp (166 kw) |
| Net Power - ISO 9249 | 222 hp (166 kw) |
| Net Power - SAE J1349 | 222 hp (166 kw) |
| Power Measured @ | 1800 rpm |
| Stroke | 6 in (15 cm) |
Hydraulic System
| Boom Cylinder - Bore | 5.9 in (15 cm) |
| Boom Cylinder - Stroke | 56.7 in (144 cm) |
| Main Implement System - Maximum Flow (2x) | 63.4 gal/min |
| Maximum Pressure - Equipment | 4980 psi |
| Maximum Pressure - Swing | 4330 psi |
| Maximum Pressure - Travel | 4980 psi |
Operating Specifications
| Alternator Supplied Amperage | 50 A |
| Cooling System Fluid Capacity | 11.9 gal (45 l) |
| Engine Oil Capacity | 8 gal (30 l) |
| Fuel Capacity | 148 gal (560 l) |
| Hydraulic Pump Flow Capacity | 126.9 gal/min (480 l/min) |
| Hydraulic System Fluid Capacity | 105.7 gal (400 l) |
| Hydraulic System Relief Valve Pressure | 4980 psi |
| Operating Voltage | 24 V |
| Operating Weight | 74300 lbs (33,702 kg) |
| Swing Drive Fluid Capacity | 4 gal (15 l) |
Service Refill Capacities
| Cooling System | 11.9 gal (45 l) |
| Engine Oil | 7.9 gal (30 l) |
| Final Drive - Each | 4 gal (15 l) |
| Fuel Tank Capacity | 145 gal (549 l) |
| Hydraulic System - Including Tank | 106 gal (401 l) |
| Swing Drive | 4 gal (15 l) |
