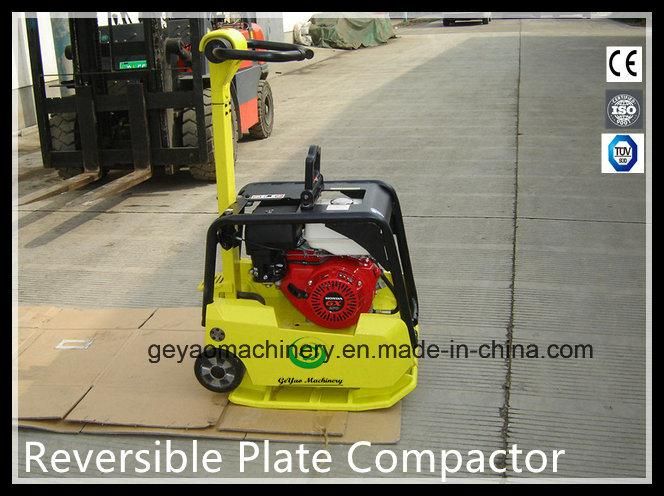

Reversible Plate Compactor Gyp-160 with Ductile Iron Plate

Chongqing Geyo Machinery Co., Ltd.
  • After-sales Service：Free Parts Are Available in Warrenty
  • Warranty：1 Year
  • Type：Plate Compactor, Plate Compactor
  • Working Method：Vibration
  • Axle：Steel Plate
  • Grinding Wheel Type：Steel Plate

Base Info

  • Model NO.：GYP-160
  • Compaction Depth：40cm, 30cm
  • Engine Type：Petrol Engine, Honda Gx270
  • Travel Speed：40cm,s, 30cm,S
  • Centrifugal Force：40KN, 20kn
  • Certification：CE, ISO 9001:2000, ISO9001: 2000, CE, TUV
  • Condition：New, New
  • Shotcrete Type：Wet
  • Color：Orange
  • Machining Process：Vibration
  • Power Kw(HP)：6.6(9.0)
  • Dimension(L*W*H)mm：965*600*1370
  • Weight Kgs(Lbs)：180
  • Plate Size Cm/in：600*500
  • Frequency Rpm：5500
  • Max Speed：3600rpm
  • Transport Package：Wooden Carton
  • Trademark：GEYO
  • Origin：China
  • HS Code：8430610000
  • Production Capacity：1000PCS,Month

Description

Basic Info.

Model NO. GYP-160 Compaction Depth 40cm, 30cm Engine Type Petrol Engine, Honda Gx270 Travel Speed 40cm/s, 30cm/S Centrifugal Force 40KN, 20kn Certification CE, ISO 9001:2000, ISO9001: 2000, CE, TUV Condition New, New Shotcrete Type Wet Color Orange Machining Process Vibration Power Kw(HP) 6.6(9.0) Dimension(L*W*H)mm 965*600*1370 Weight Kgs(Lbs) 180 Plate Size Cm/in 600*500 Frequency Rpm 5500 Max Speed 3600rpm Transport Package Wooden Carton Trademark GEYO Origin China HS Code 8430610000 Production Capacity 1000PCS/Month

Product Description

Plate compactor,there are internal combustion and electric vibrating plate ram.

Reversible Plate Compactor GYP-160 with Ductile Iron Plate
Reversible Plate Compactor Gyp-160 with Ductile Iron Plate


Features and Advantage:
1.Easy to transport with the self-wheel
2.Handle hydraulic system for forward$reverse
3.Ductiled-iron base plate fpr durability
4.Lifting hook ensures easy to delivery in different job site

Specification
ModelGYP-160
Weight(kg)180
Dimension(mm)L1000*W500*H1200
Plate Size(mm)L600*W500
Centrifugal force(KN)30
Working Frequency(rpm/hz)5500/92
Forward Speed(m/min)20-23
Engine TypeAir-cooled,4-cycle,gasoline
Engine TypeHonda GX270
Max Output(rpm)7.0(9.0)
Max Speed (rpm)3600
Fuel tank(L)6.1

Application Scope
Plate compactor series are made of high quality steel,artificial design,facility operation,is widely applied to municipal conservation,road construction,building construction,flooring treatment, strengthen cohesive force between particles and less friction materials.
Such as river sand,soil,gravel,asphalt surface of the whole compacting.
Ditches,concrete perimeter sidewalk all kinds of backfill compaction
Reservoir,dam slope surface solidify.

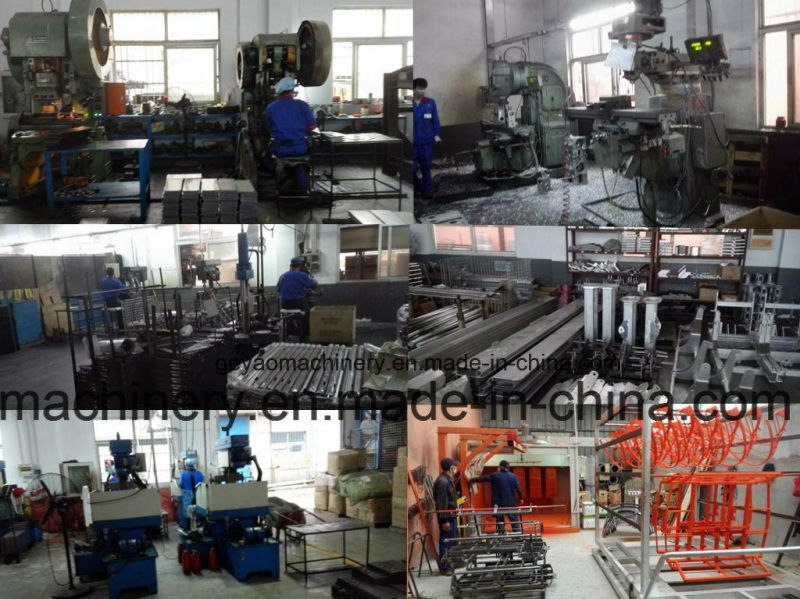

MACHINERY OPERATION PROCESSING.
Reversible Plate Compactor Gyp-160 with Ductile Iron Plate

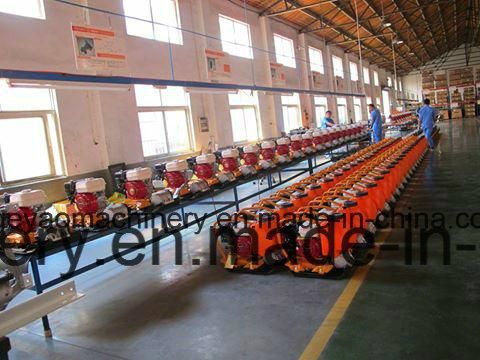

ASSEMBLING
Reversible Plate Compactor Gyp-160 with Ductile Iron Plate

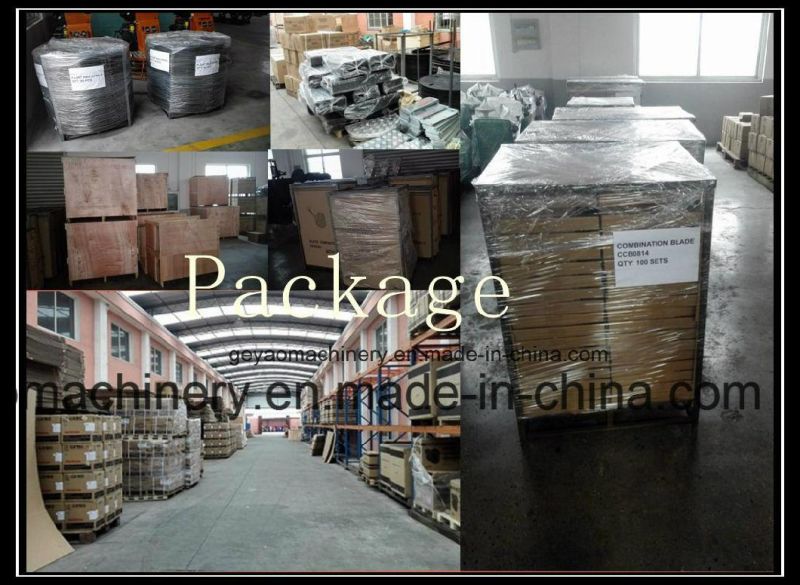

PACKAGE
Reversible Plate Compactor Gyp-160 with Ductile Iron Plate

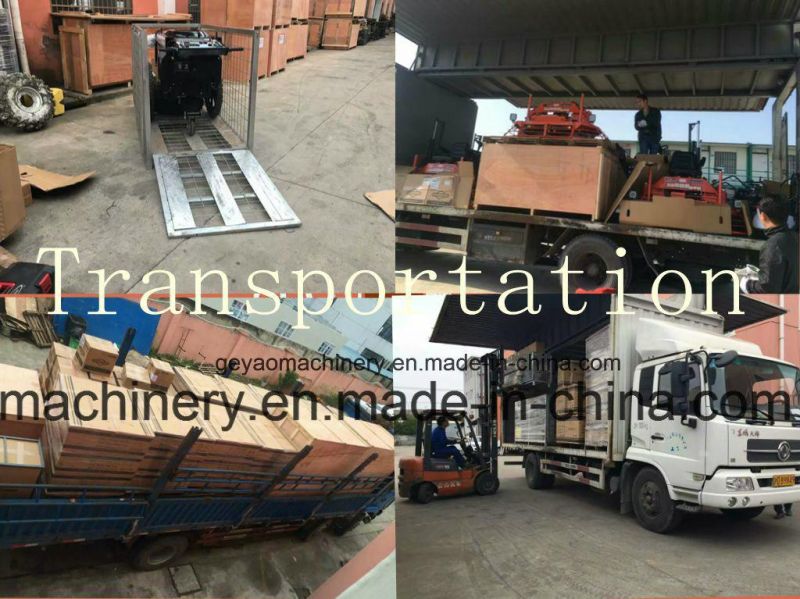

TRANSPORTATION
Reversible Plate Compactor Gyp-160 with Ductile Iron Plate

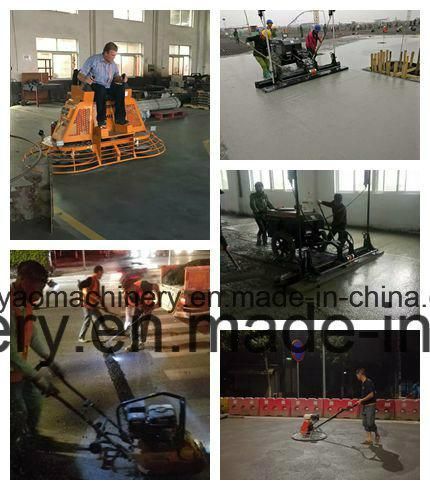

PERFORMANCE
Reversible Plate Compactor Gyp-160 with Ductile Iron Plate
