• Model NO.：GYP-20
• Compaction Depth：30cm, 40cm
• Engine Type：Honda Gx160, Petrol Engine
• Travel Speed：30cm,S, 40cm,s
• Centrifugal Force：20kn, 40KN
• Certification：CE, ISO 9001:2000, ISO9001: 2000, CE, TUV
• Condition：New
• Shotcrete Type：Wet
• Color：Orange
• Machining Process：Vibration
• Power Kw(HP)：4.0(5.5)
• Dimension(L*W*H)mm：1100*500*950mm
• Weight Kgs(Lbs)：99
• Plate Size Cm/in：59*50(21*20)
• Frequency Rpm：5500
• Efficiency M2/Hr：660
• Transport Package：Wooden Carton
• Trademark：GEYO
• Origin：China
• HS Code：8430610000
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. GYP-20 Compaction Depth 30cm, 40cm Engine Type Honda Gx160, Petrol Engine Travel Speed 30cm/S, 40cm/s Centrifugal Force 20kn, 40KN Certification CE, ISO 9001:2000, ISO9001: 2000, CE, TUV Condition New Shotcrete Type Wet Color Orange Machining Process Vibration Power Kw(HP) 4.0(5.5) Dimension(L*W*H)mm 1100*500*950mm Weight Kgs(Lbs) 99 Plate Size Cm/in 59*50(21*20) Frequency Rpm 5500 Efficiency M2/Hr 660 Transport Package Wooden Carton Trademark GEYO Origin China HS Code 8430610000 Production Capacity 1000PCS/Month

Product Description

Plate compactor,there are internal combustion and electric vibrating plate ram.

Plate Compactor with Ductile Iron Plate GYP-20



Features and Advantage:
1.Ductile iron base plate provides better durability
2.Open plate provides self cleaning
3.Radius base plate for easy access to corners
4.Centrally located lifting bar allows easy transportation
5.Sealed belt cover to prevent sand and soil in
6.Heavy-duty shock mounts reduce vibration to the upper engine & handle
7.Transport wheel for easy transportation around sites
8.Water tank for asphalt use
9.Optional polyurethane pad for paving
Specification

Model	GYP-20
Weight          kg (lb)	96 (211)
Dimension         mm(in)	L1100(43) X W500(20) X H950(37)
Plate size           mm (in)	L590(23) X W500(20)
Centrifugal force           kn	20
Vibration frequency vpm      (hz)	5500 (92)
Forward travel            m/min	20-23
Engine	Air-cooled, 4-cycle, Gasoline
Type	Honda GX160              Robin  EX17
Max. output         kw (hp)	4.0 (5.5)                         4.2 (5.7)
Max. speed         rpm	3600                               3600
Fuel Tank           liter (gal)	3.6 (0.95)                       3.6 (0.95)

Application Scope
Plate compactor series are made of high quality steel,artificial design,facility operation,is widely applied to municipal conservation,road construction,building construction,flooring treatment, strengthen cohesive force between particles and less friction materials.
Such as river sand,soil,gravel,asphalt surface of the whole compacting.
Ditches,concrete perimeter sidewalk all kinds of backfill compaction
Reservoir,dam slope surface solidify.

MACHINERY OPERATION PROCESSING.


ASSEMBLING

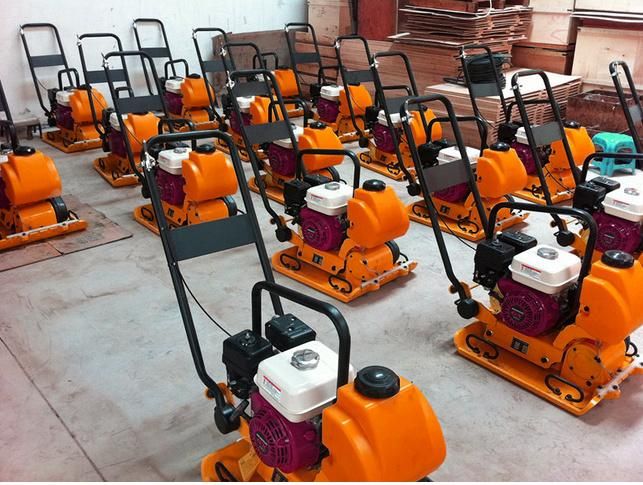

PACKAGE


TRANSPORTATION


PERFORMANCE
