Engineering & Construction Machinery

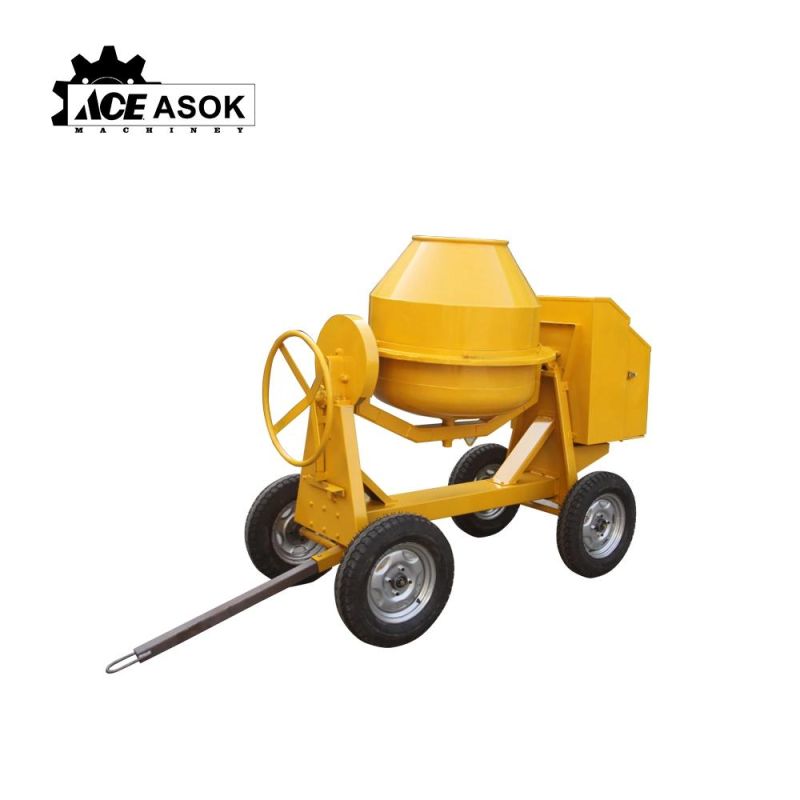

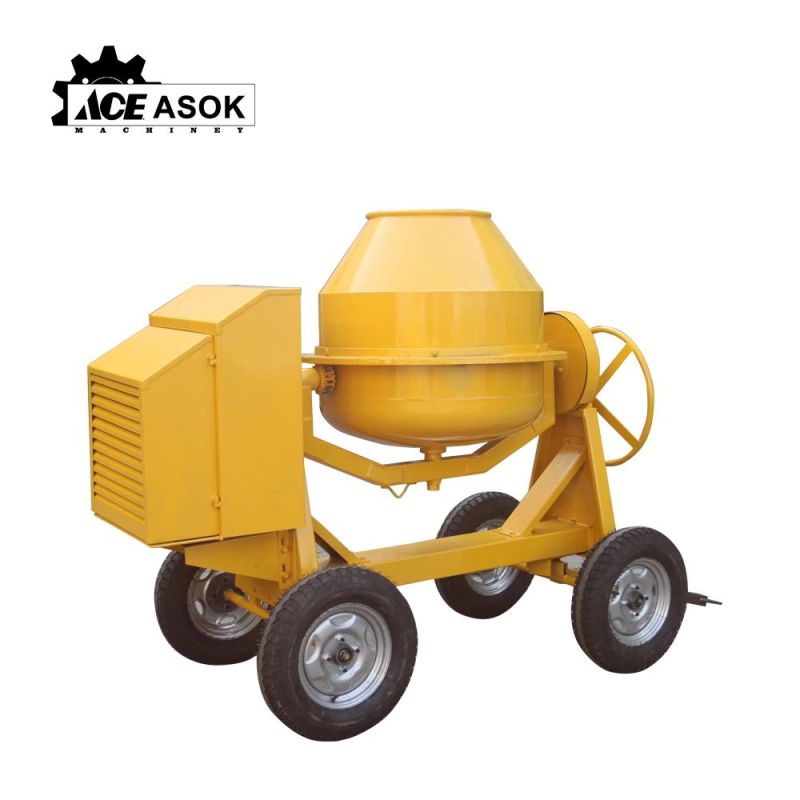

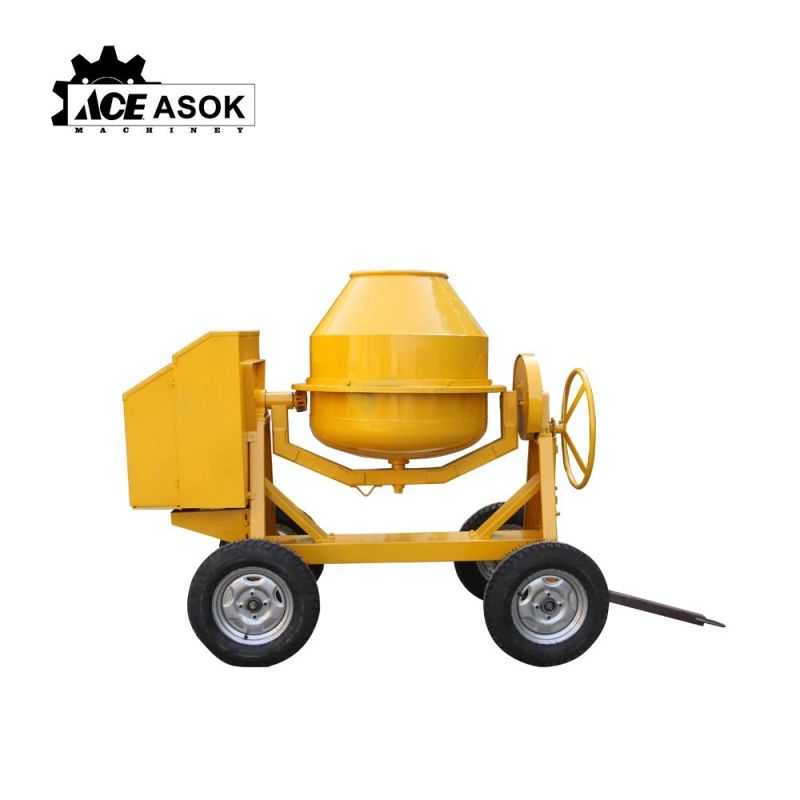

Mini Concrete Mixer, Small Portable Concrete Mixers, Easy Use Mobile Concrete Mixer

Ningbo Ace Machinery Co., Ltd.
  • Shotcrete Type:Semi-Dry
  • Machining Process:Welded Molding Machine

Base Info

  • Model NO.:TDCM350-D
  • Structure:Cylinder Type
  • Productivity:180m²,h
  • Feeding Height:1370mm
  • Vibrating Amplitude:2.6mm
  • Certification:CE
  • Condition:New
  • Color:White
  • Product Name:Diesel Engine Concrete Mixer
  • Engine:Kipor 178f
  • Power:6.0HP
  • Drum:350L
  • Drum Thickness:3.0mm
  • Net Weight:320kgs
  • Packing Size:196X 96X100 Cm
  • Service:Engineers Available to Service Machinery Overseas
  • Transport Package:Carton
  • Specification:350l
  • Trademark:ACE
  • Origin:Ningbo, China
  • HS Code:84743100
  • Production Capacity:30000 PCS,Year
  • Package size per unit product:205.00cm * 95.00cm * 128.00cm
  • Gross weight per unit product:340.000kg

Description

ModelTDCM350-DTDCM350-ETDCM400-DTDCM500-DTotal Drum Capacity350L400L500LMixing Capacity310L330L350LProductivity4-5m³/h5-6m³/h6-8m³/hDrum rotating speed28r/min24r/min22r/minPower typesingle Cylinder,
Air-cooled,
dieselThree phase,
Asynchronous,
electricCHANGCHAI,Horizontal,
Single  Cylinder,
FourStroke and water cooledCHANGCHAI/YANMAR,
 Horizontal,
Single Cylinder,Four-Stroke and water cooledPower 178F(4.1KW)/
 186FA(6.3KW)3 KWR180/5.67KWZS1100CY1105tyre Size4.00-124.00-12165/70 R13Gross Weight340KGS320KGS460KGS810KGSPacking Demension           (LxWxH)mm          2050*950*12801750*1000*12602200*1200*1700As oppotionalWith diesel engine or electric motor and feeding hopperwith diesel engine and feeding hopper

Mini Concrete Mixer, Small Portable Concrete Mixers, Easy Use Mobile Concrete MixerMini Concrete Mixer, Small Portable Concrete Mixers, Easy Use Mobile Concrete MixerMini Concrete Mixer, Small Portable Concrete Mixers, Easy Use Mobile Concrete MixerMini Concrete Mixer, Small Portable Concrete Mixers, Easy Use Mobile Concrete MixerMini Concrete Mixer, Small Portable Concrete Mixers, Easy Use Mobile Concrete MixerMini Concrete Mixer, Small Portable Concrete Mixers, Easy Use Mobile Concrete MixerMini Concrete Mixer, Small Portable Concrete Mixers, Easy Use Mobile Concrete Mixer

Features
1. Rugged mixing drum comes with reinforced rim and highly efficient paddles.
2. Outstanding mixing performance
3. Long-lasting
4. Limited maintenance
5. An extra handle is mounted onto the rear end of the compact vehicle
6. Lockable engine compartment
7. Ergonomically designed concrete mixer is supplied with anti-tip system.
8. Locking system for large handle wheel and foot pedal.
9. Rugged, dependable chassis is also easy to clean.
10. The machine can be supplied with either two wheels or four wheels.

FAQ:

Q : What's your payment terms ?
A: Usually we accept T/T ,L/C at sight or western Union


Q: Would you accept OEM and ODM ?
A: The design of machine such as colour ,artwork and sketch can customized


Q : How to control quality ?
A: We inspect all the spare parts before assembly the machine and we need test every machine

after assembly.


Q : How can I choose the most suitable model ?
A: Please tell me your detailed flow rate ,voltage ,applications ,then we can make suggestions for you.


Q :What's your MOQ ?
A: Trail order can be accepted with 2-10 sets ,we warmly welcome agent in your market.


Q:Concrete mixer with pump delivery time ?
A: Concrete mixer with pump with 7-30 days after confirming the order .
