• Model NO.：CLW5168GLQTZ4
• Certification：ISO9001: 2000
• Condition：New
• Emission Standard：EU 3
• Drive Wheel：4X2
• Burner：Italy G20
• Engine Power：190HP
• Heating Method：Conduction Oil
• Control System：Germany Stm
• Transport Package：Nude
• Specification：8790x2480x2840 mm
• Trademark：CLW
• Origin：Hubei, China
• HS Code：8705909990
• Production Capacity：50 Units Per Month

Control in the cab, electronic control

Intelligent Asphalt Distributor Truck is a machine specially designed for construction and curing of asphalt road surfaces, which is widely applied in operation, such as transport and distribution of high-temperature liquid asphalt, emulsified asphalt and modified asphalt.
The operation of the asphalt pump is controlled by hydraulic system and the transmission is stable, enabling safe and reliable operation. Asphalt can be sprayed evenly via the rear spray bar or the handheld spray bar according to the actual construction. Spraying via the rear spray bar is automatically controlled by the computer. The spray rate is under computerized control and is accurate. The asphalt pump and piping use heat transfer oil for heating and thermal insulation. The pipes and nozzles are flushed by compressed air, in order to avoid being clogged. The maximum spray width is up to 6m, and the spraying operation is high-efficiency and easy, with safe and reliable service behavior.
1.Siemens control sysem inported typical of control prcision(error≤1%)
2.High intelligentized of  control system,imported burner form Italy
3.Imported truck element for speed measurement and imported 7" full-color resistacecontrolling panel.
4.Front and rear controlling platforms,for alternative use to ensure work.
5. High-end design and  fabrication for rust prevention and corrosion prevention

Characteristics
Performance characteristics: It has functions such as asphalt self-flow discharge, pump pressure discharge, pumping and canning, and in-situ transportation. Good heat preservation, large carrying capacity and strong adaptability.
1. The turning radius of the whole vehicle structure is small; the cross section of the tank body is round, the volume is large, the center of gravity is low, and the structure is compact;
2. The asphalt tank is equipped with a heating system and an imported diesel burner. The combustion quality is good and there is no pollution;
3. The unique heat transfer oil system is used to heat and heat the asphalt pump and valve; the hydraulic system drives the asphalt pump and the heat transfer oil pump, the drive is reliable and the operation is convenient;
4, multi-function pumping system, reliable transmission, easy to operate, can meet the various needs of asphalt transportation; with liquid level display and full alarm system, easy to control the asphalt level in the tank;
5, self-flow discharge: when the oil storage tank is lower than the asphalt transport vehicle, it can be discharged directly from the flow;
6. Pressure discharge: when the oil storage tank is higher than the asphalt transport vehicle, it is pumped by pressure;
7. Self-pumping: The asphalt in the thermal tank or oil storage tank can be sucked into the vehicle through its own oil drain pipe, without the need for an external pump;
8. Internal circulation: During the heating process of asphalt, internal circulation can be carried out to improve the heating quality of asphalt;

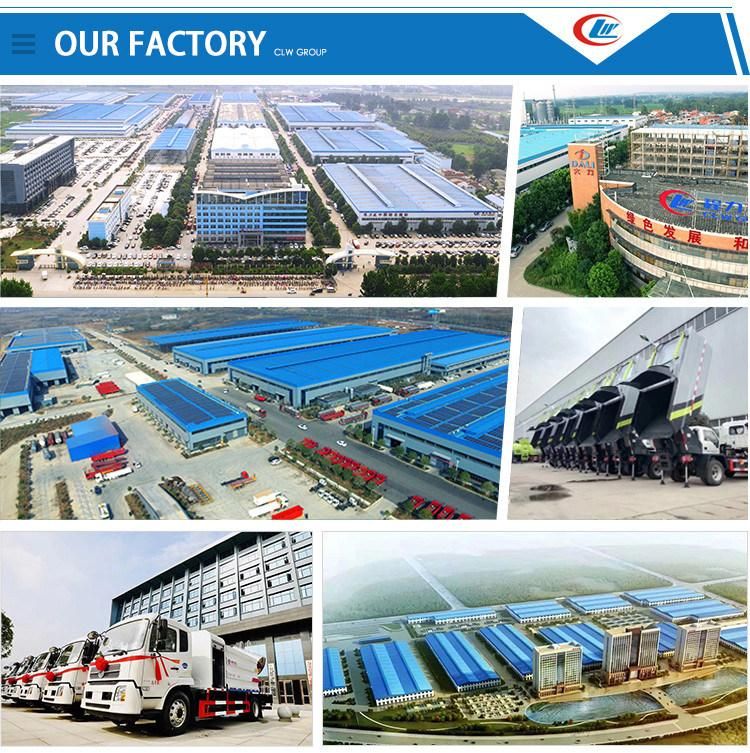

Our Factory

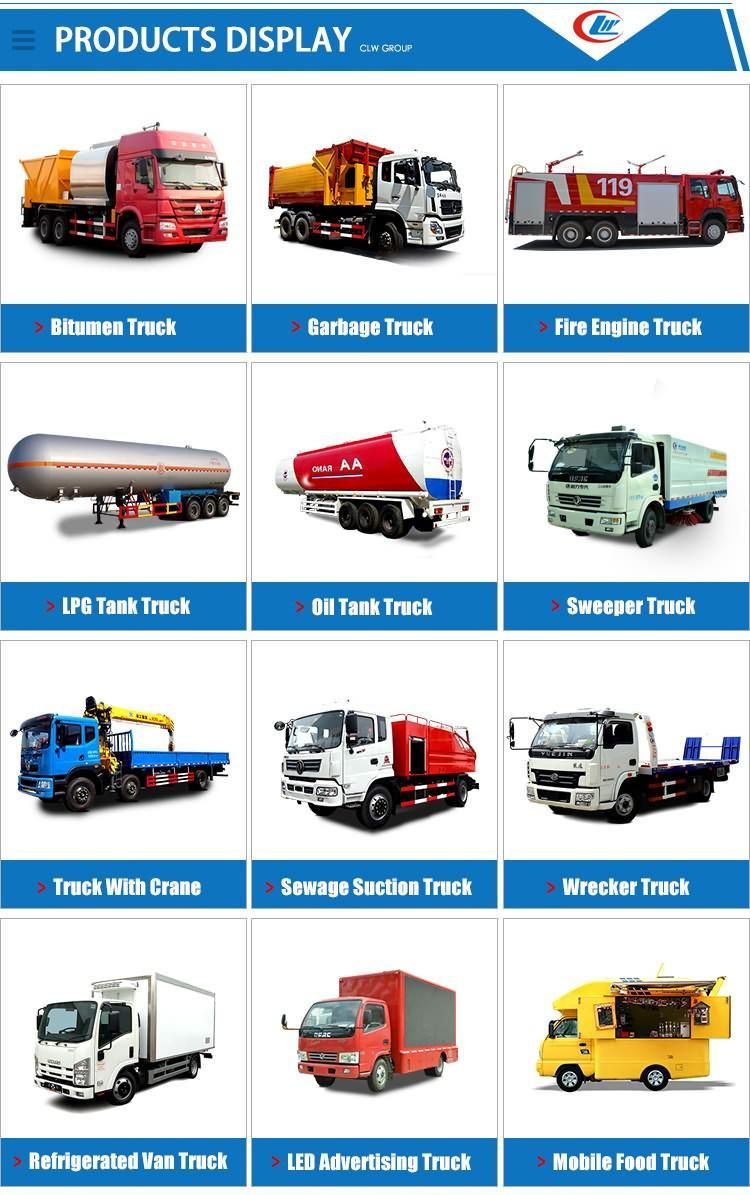

Products Display


Cooperative Partner


Qualification Certificate

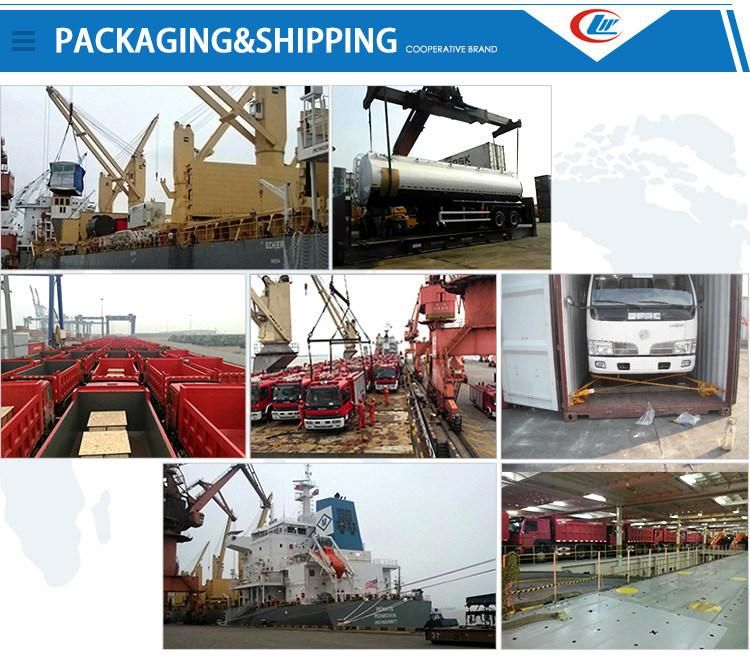

 Packaging & Shipping


Cooperative Brand

FAQ
1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.

2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.

3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.

4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.

5. How long could we receive our goods?
 It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.

6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person
