• Model NO.：CLG4215
• Rated Power：144kw
• Dimession：9245*3580*2600mm
• Operating Weight：16.5 T
• Minimum Turning Radius：7300mm
• Peak Torque：980 N M
• Brand：Liugong
• Engine Model：Cummins
• Speed：42km,H
• Transport Package：Container
• Specification：210hp
• Trademark：ACNTRUCK,LIUGONG
• Origin：China
• HS Code：873001101
• Production Capacity：10units,Week

Basic Info.

Model NO. CLG4215 Rated Power 144kw Dimession 9245*3580*2600mm Operating Weight 16.5 T Minimum Turning Radius 7300mm Peak Torque 980 N M Brand Liugong Engine Model Cummins Speed 42km/H Transport Package Container Specification 210hp Trademark ACNTRUCK/LIUGONG Origin China HS Code 873001101 Production Capacity 10units/Week

Product Description

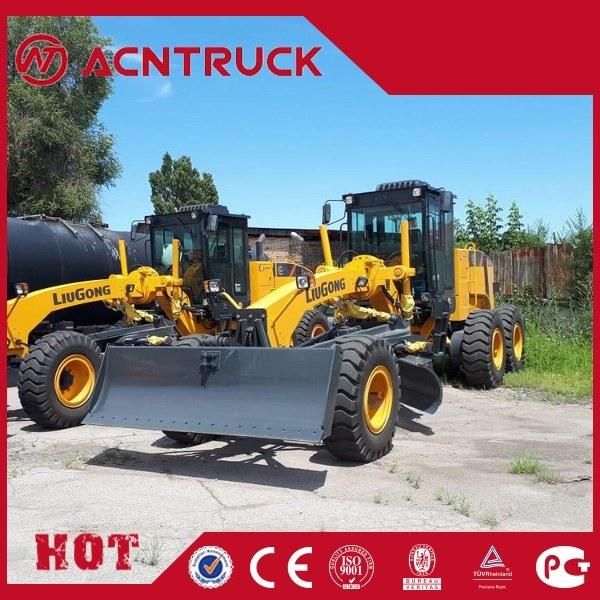

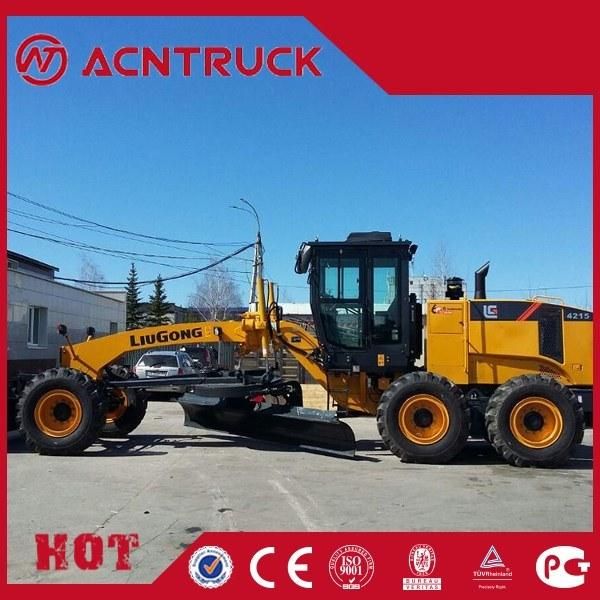

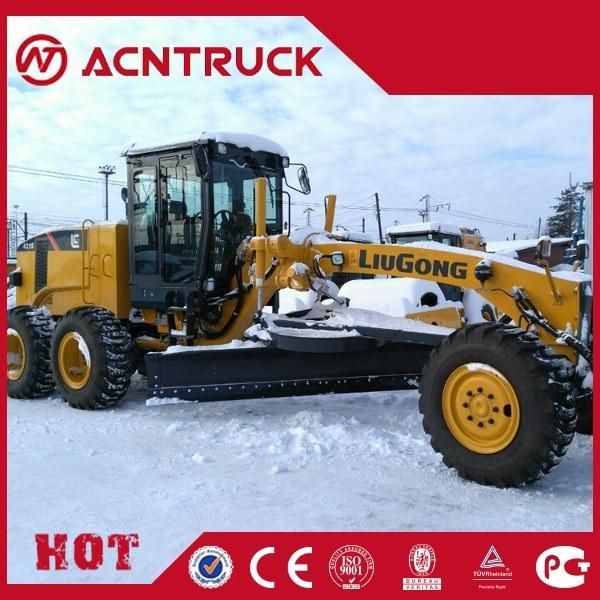

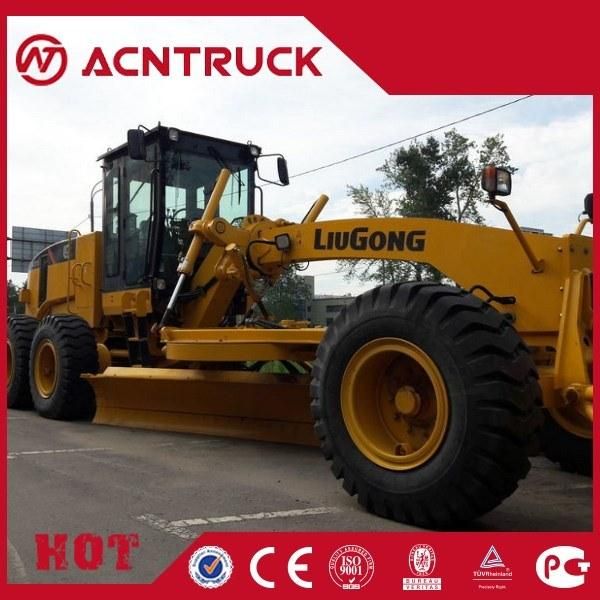

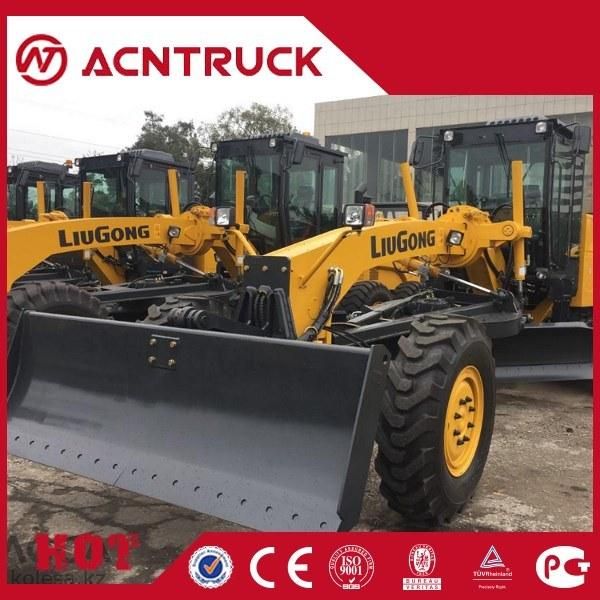

215HP 160kW 16.5 Ton Motor Grader  CLG4215


Operating weight: 16500kg

Engine: Cum--mins 6CTAA8.3

Rated Power:  160 kW (215 hp)

Net Power: 144 kW (193 hp)

Blade Width: 3,960 mm

Maximum Speed: 42 km/h

Draw Bar Pull: 90 kN



Built for Efficiency

World-class Dongfeng engine with high power and low fuel consumption.

Scraping knife has 360 degree rotation, 90 degree right/left lateral adjustment, and 40-70 degree penetration for leveling, trenching, ditching, wall scraping and more.

LiuGong designed suction cooling system has better cooling, lower wind sensitivity and is less impacted by dirt than normal systems.

Meeting EU stage II/EPA tier 2 emission standards.

Easy to Maintain

Hydraulic pipes on both sides of frame for easy maintenance.

Easy engine access and access to main maintenance points

Reliability

Power cuts off if hand brake not removed, this prevents accidental damage.

Parts, service and attachments you can count on.

World-class suppliers of key components.

Operator Comfort and Safety

Dustproof, sound reducing, shock absorbing and anti-UV cabin.

Comfortable adjustable suspension seating.

Air Conditioning optional.

Full range of visibility.

Optional Equipment:
1. Automatic leveling Unit
2. Front dozer
3. Rear ripper
4. Hydraulic pin controller of ther swing frame
5. Rops cab
6. Front ripper
7. Heavy duty blade
8. Ice breaker
