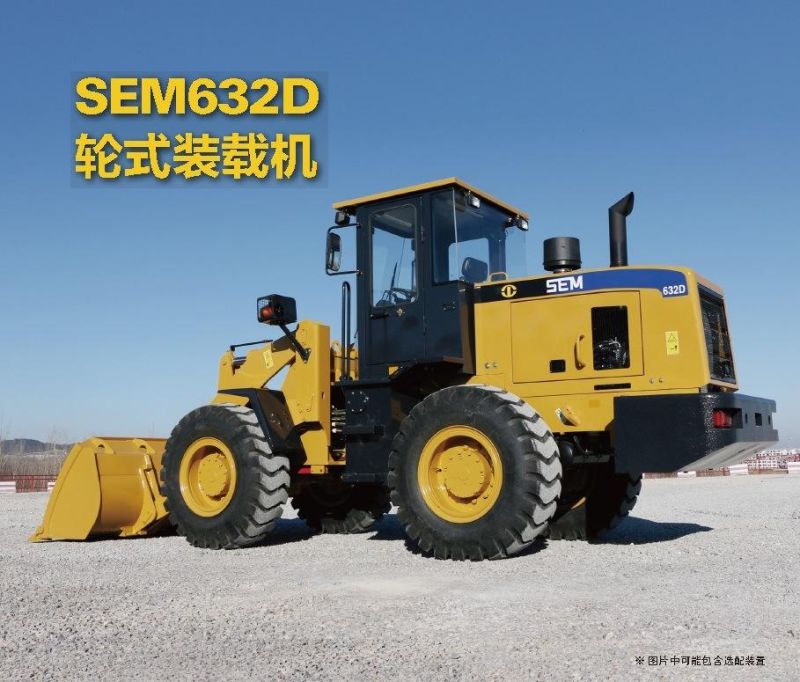

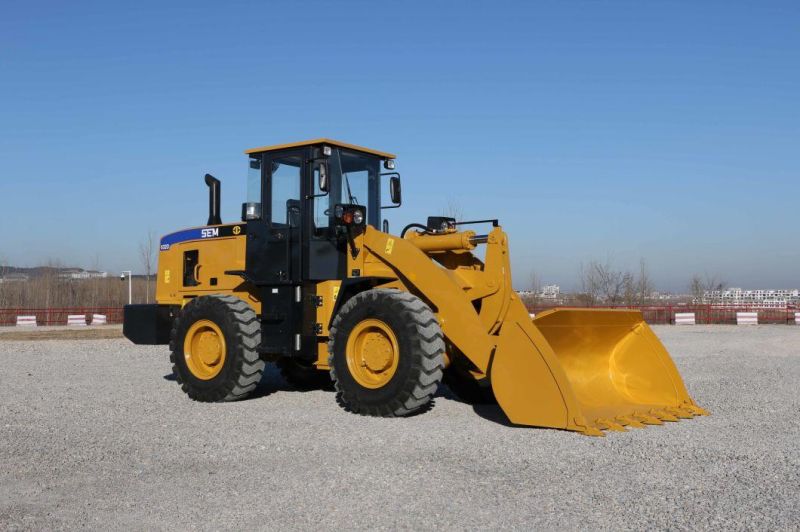

S. E. M Wheel Loader 3ton 632D Mini Front End Loader Price

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Certification：ISO, CE
  • Condition：New
  • Rated Load：3-6t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：632D
  • Type：Medium-sized Loader
  • Operating Weight with Standard Bucket：9700kg
  • Bucket Capacity：1.53-2.50m3
  • Wheel Base：2,630mm
  • Overall Dimension：7,162X2,354X3,051mm
  • Max. Drawbar Force：120kn
  • Breakout Force：97kn

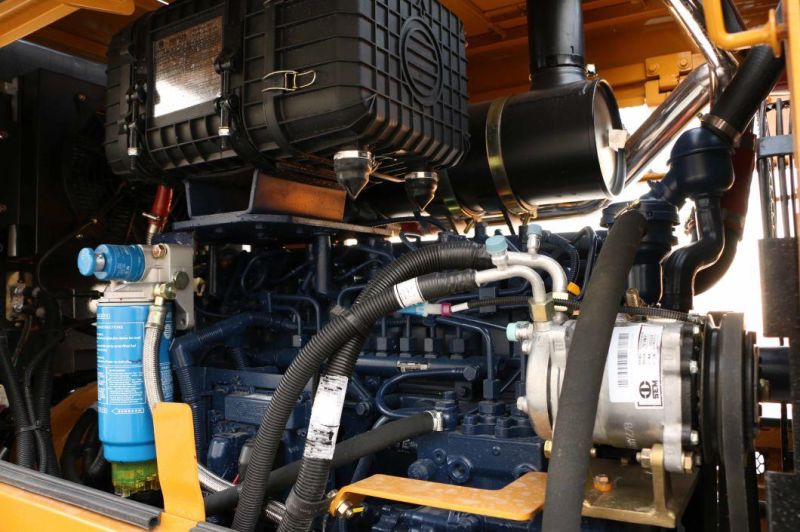

  • Engine：Wp6g125e333
  • Rated Power：92kw,2000rpm
  • Hydraulic Cycle Time：8.2s
  • Transport Package：Nude
  • Specification：3ton
  • Trademark：Oriemac
  • HS Code：84295100

Description

ItemUnitParamsMain Specifications  Rated Loadkg3,000Operating Weight with Standard Bucketkg9700Bucket Capacitym31.53-2.50Wheel Basemm2,630Overall Dimensionmm7,162x2,354x3,051Max. Drawbar ForceKN120Breakout ForceKN97Transmission  Transmission Type Countershaft, power shiftTransmission Gears F4/R2Torque Converter Type Single stage, 3 elementsMaker & Type TR100Forward I km/h7.4Forward II km/h13.6Forward III km/h 26Forward IV km/h 39Axle  Main Drive Type Spiral bevel gear, single stageFinal Drive Reduction Type Planetary type, single stageRear - Oscillating +/ ±12Engine  Model WP6G125E333Rated PowerkW92Rated Speedr/min2,000DisplacementL6.7Implement Hydraulic  Implement System Type Open centerBoom Raise Times4.6Hydraulic Cycle Times8.2System Pressure SettingMpa16.5S. E. M Wheel Loader 3ton 632D Mini Front End Loader PriceS. E. M Wheel Loader 3ton 632D Mini Front End Loader PriceS. E. M Wheel Loader 3ton 632D Mini Front End Loader PriceS. E. M Wheel Loader 3ton 632D Mini Front End Loader PriceS. E. M Wheel Loader 3ton 632D Mini Front End Loader PriceS. E. M Wheel Loader 3ton 632D Mini Front End Loader Price
