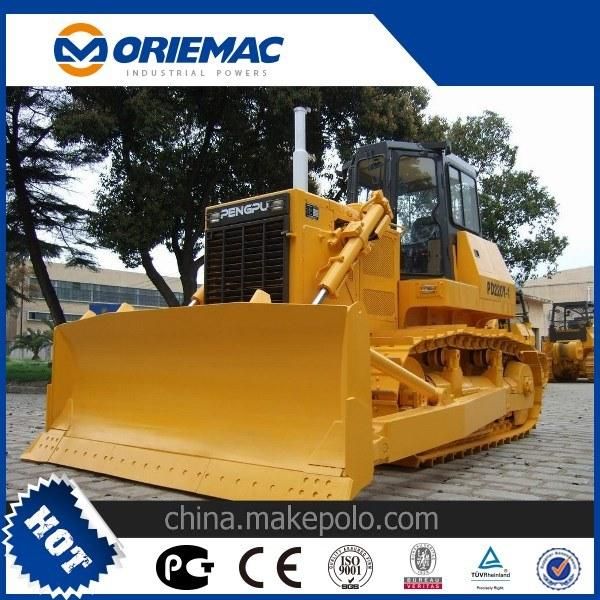

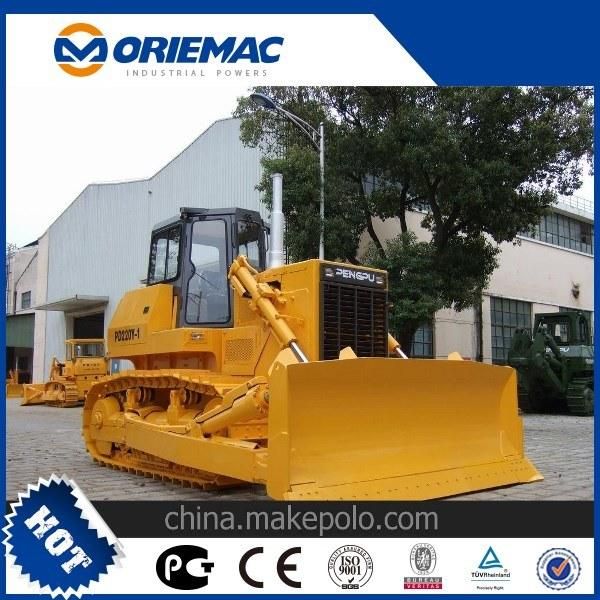

• Model NO.：PD220Y
• Condition：New
• Color：Yellow
• Dimension(Long * Breadth * High)：5750*3725*3575 mm
• Machine Weight：36800kg
• Rated Revolution：2000rpm
• Engine：Nta855-C360s10
• Dozing Capacity：11.24 Cbm
• Blade Type：Semi-U Blade
• Warranty：1 Year
• Ground Contact Length：2730 mm
• Gradeability：30%
• Track Width：2
• Transport Package：Nude Packing
• Specification：ISO, CE
• Trademark：Pengpu
• Origin：Shandong
• Production Capacity：1000sets,Month

 Machine model220Y-3Length×Width×Height (without Ripper)5750×3725×3575Operating Weight (t)25.5Flywheel HP (km/rpm)162/1800Track Gauge2000Ground Contact Length(mm) /Pressure(Mpa)2730/0.082Forward Speeds(km/h)3.6/6.5/11.2Reverse Speeds(km/h)4.3/7.7/13.2(Blade) Max. Drop below Ground (mm)Straight540/Angle535/U540(Ripper) Max. Dig below Ground (mm)Single666/3-shank555(Blade) Max. Lift above Ground (mm)1210(Ripper) Max Lift above Ground (mm)Single 598.3/3-shank 666Gradeability (º)30°Blade Capacity (m3)7.24/5.15/8.63/3.89EngineNT855-C280No. of Track Rollers (each side)6No. of Track Shoes (each side)38Track Width(mm)560Track Pitch(mm)216Blade TypeU/Straight, Landfill/AngleBlade Size Width×Height (mm)U 3800×1343/Straight 3725×1315/Landfill 3725×1702/Angle 4365×1055RipperSingle or 3-shank
