XCMG Official Gr165 China Motor Grader with Blade

XCMG E-Commerce Inc.
  • Certification：Ce,ISO9001
  • Condition：New
  • Dimension(L*W*H)：8900*2625*3470mm
  • After-Sales Service Provided：No Overseas Service Provided
  • Warranty：1 Year
  • Reverse Speed(Km/H)：23

Base Info

  • Model NO.：GR165
  • Forward Speed(Km/H)：38
  • Transport Package：Comply with Export Packaging Requirements
  • Trademark：XCMG
  • Origin：Jiangsu, China
  • Production Capacity：10000 Unit,Units Per Year

Description

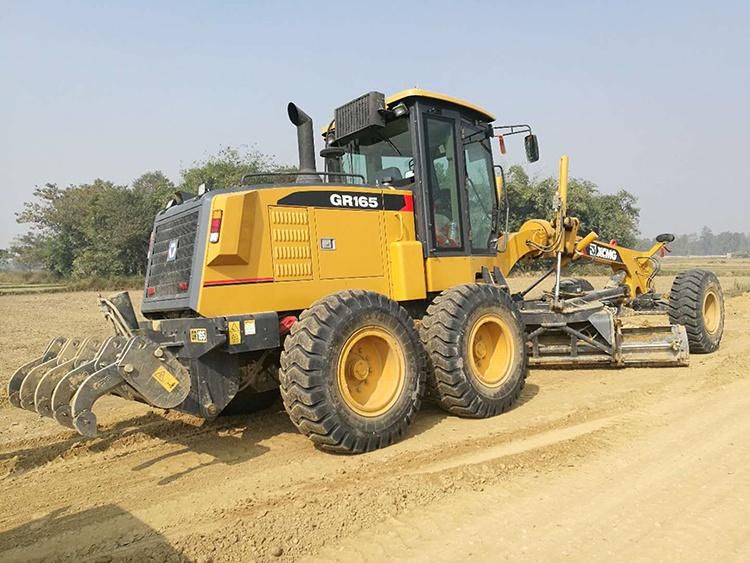

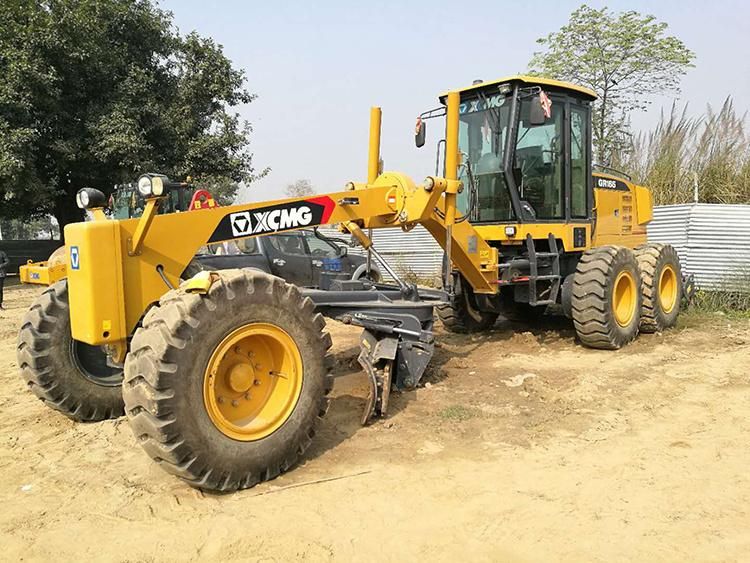

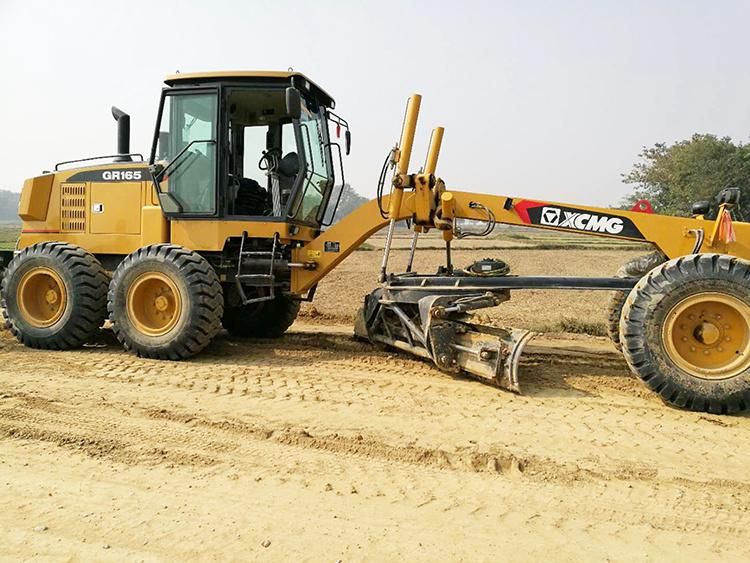

ItemGR165Basic parametersEngine model6BTA5.9-C180-IIRated power/speed130kW/2200rpmOverall dimension (standard)8900x2625x3470Total weight (standard)15000kgTire specification17.5-25Ground clearance (front axle)430mmTread2156mmSpace of front and rear axles6219 mmPerformance parametersForward velocity5,8,11,19,23,38km/hReverse speed5,11,23km/hTractive effort f=0.7577kNMaximum gradeability25%Tire inflation pressure260kPaWorking system pressure16MPaTransmission pressure1.3-1.8MpaWorking parametersMaximum steering angle of front wheel±50°Maximum slant angle of front wheel±17°Maximum oscillating angle of front axle±15°Maximum oscillating angle of equilibrium box±15°Maximum steering angle of frame±27°Minimum turning radius7.3mScrape knifeMaximum lift height450mmMaximum cutting depth500mmMaximum tilt angle90°Cutting angle28°-70°Angle of revolution360°Length & chord height3660x610mmOil filling amountCoolant50LFuel tank280LEngine24LTransmission38LHydraulic oil110LDrive axle28LBalancing box46 LProduct ShowXCMG Official Gr165 China Motor Grader with BladeXCMG Official Gr165 China Motor Grader with BladeXCMG Official Gr165 China Motor Grader with BladeRelated Products To Choose Online Service TeamXCMG Official Gr165 China Motor Grader with BladeCompany ProfileXCMG Official Gr165 China Motor Grader with BladeXCMG Official Gr165 China Motor Grader with BladeXCMG Official Gr165 China Motor Grader with BladeXCMG Official Gr165 China Motor Grader with BladeXCMG Official Gr165 China Motor Grader with BladeXCMG Official Gr165 China Motor Grader with Blade
