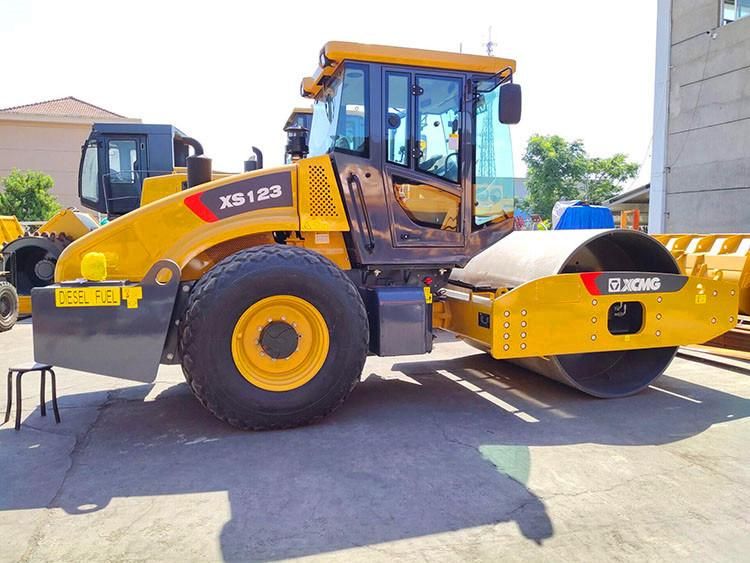

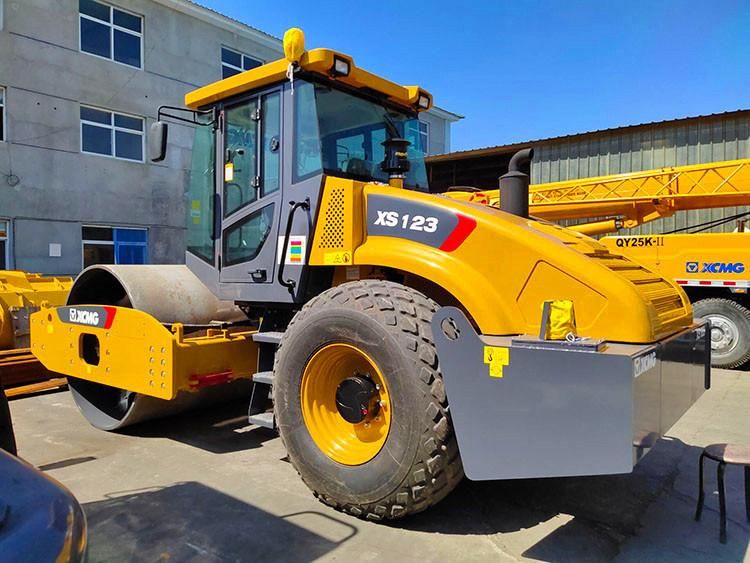

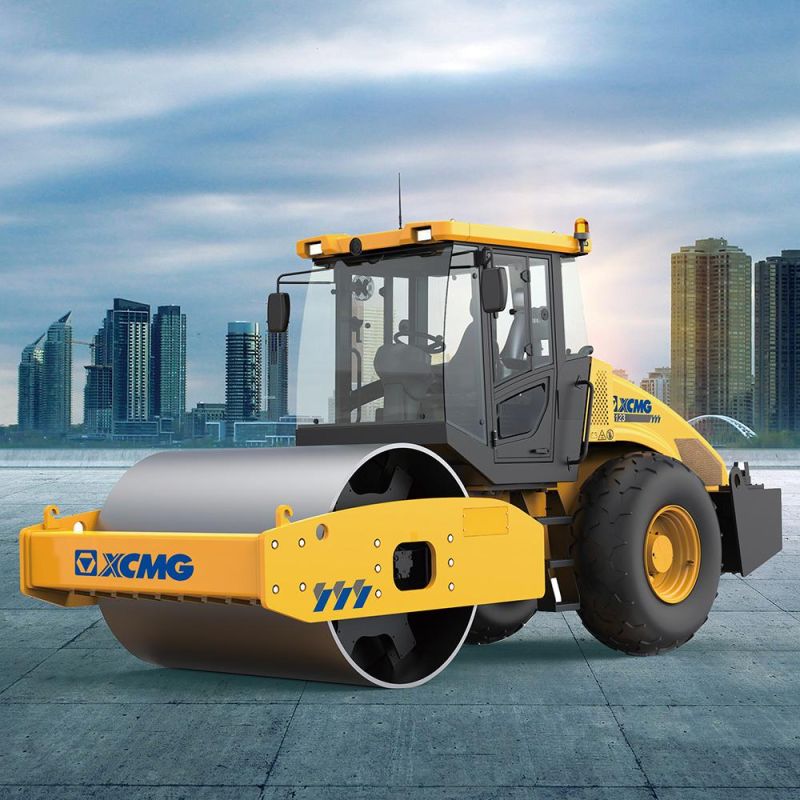

XCMG Official Xs123 130HP Single Drum Vibratory China New Road Roller Compactor Machine Price for Sale
XCMG E-Commerce Inc.- Type：Road Roller
- Working Method：Vibration
- Engine Type：Diesel Engine
- Travel Speed：0~5km,H
- Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
Base Info
- Model NO.：XS123
- Power(W)：97kw
- Grade Ability：45%, 30%
- Engine Model：Sc4h135g2
- Vibratory Drum Diameter：1513mm
- Vibration System Pressure：18MPa
- Compaction Width：2130mm
- Wheel Base：3040mm
- Vibration Frequency：30,35Hz
- Drive Wheel Distribution Weight：6400kg
- Static Linear Pressure：258n,Cm
- Transport Package：Comply with Export Packaging Requirements
- Specification：5970*2300*3150mm
- Trademark：XCMG
- Origin：Jiangsu, China
- Production Capacity：1000 Unit,Units Per Year
Description
Overview
Product ParametersDescriptionUnit Parameter value Work weight kg 12000 Drive wheel distribution weight kg 6400 Vibratory drum distribution weight kg 5600 Static line load N/cm 258 DrVibration frequency Hz 30/35 Theoretical amplitude mm 1.8/0.9 Exciting force kN 240/160 Speed range km/h 0-7.3 Wheelbase mm 3040 Compaction width mm 2130 Theoretical climbing ability % 30 Minimum turning radius mm 6800 Vibratory drum diameter mm 1513 Minimum ground clearance mm 431 Engine Model SC4H135G2 Rated speed r/min 2200 Rated power kW 100 Dimensions mm 6150×2300×3200 Vibration system pressure MPa 18 Steering system pressure MPa 16
