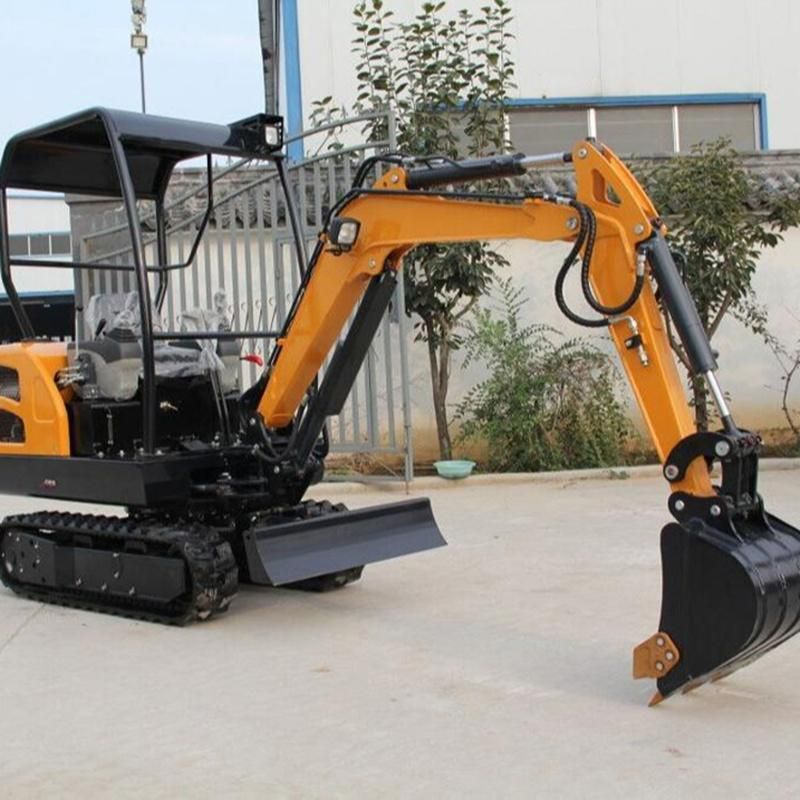

Jh18 1.8 Ton Chinese Mini Crawler Excavator
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Mining Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.1~0.5m³
Base Info
- Model NO.：JH18
- Size：Small-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Transport Package：Nude Package
- Specification：3865mm*1050mm*2270mm
- Trademark：Acntruck
- Origin：China
- Production Capacity：50 Unit Per Month
Description
TRACK SYSTEM
Maximum Travel speed
3.5km/h
Width of track shoe(Rubber & steel track)
230mm
Number of track shoe per side(Steel track only)
38 pcs
Number of upper roller/ bottom roller(per side)
0/4
PERFORMANCE PARAMETER
Standard bucket capacity
0.06m³
Swing speed
10~12 rpm
Max. Grade ability
35°
Max. Bucket digging force
14KN
Max. Arm digging force
10KN
Hydraulic system pressure
18Mpa
Machine weight
1800kg
MACHINE SIZE
Overall dimension (L*W*H)
3865mm*1050mm*2270mm
Axle base(Track length on ground)
1230mm
Track gauge
820mm
Min.Ground clearance
210mm
Swing radius at tail
1125mm
WORKING RANGE
Max. Digging height
3365mm
Max. Dumping height
2385mm
Max. Digging depth
2050mm
Max. Vertical digging depth
1725mm
Max. Digging radius
3860mm
Min .swing radius
1720mm
Max. Lifting height of blade
230mm
Max. Cutting depth of blade
275mm
Boom swing angle(Left)
75°
Boom swing angle(Right)
45°

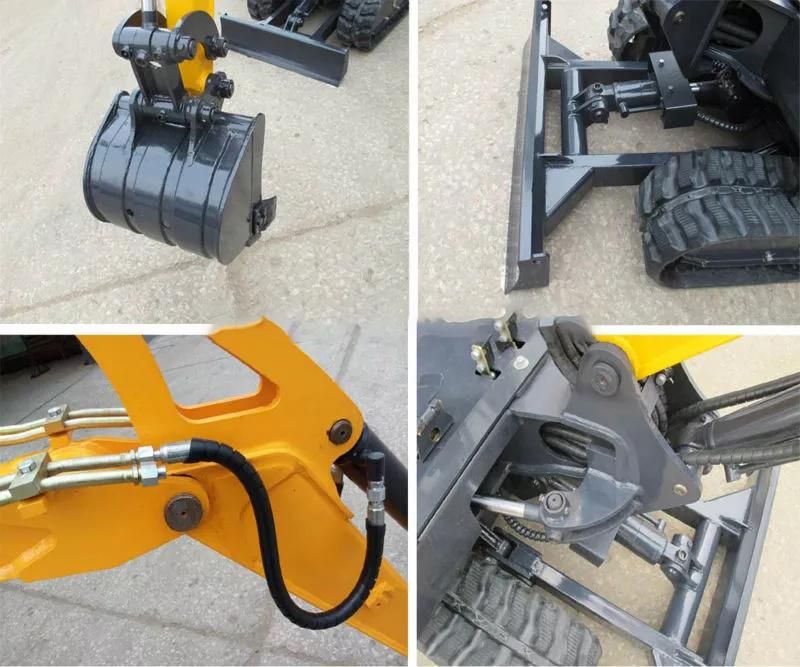

Detail Pictures
