• Model NO.：CLG4180
• Transport Package：in Nude
• Specification：8790*2600*3438mm
• Trademark：LIUGONG
• Origin：Guangxi, China
• HS Code：84292090
• Production Capacity：5000PCS,Year

Basic specification

Engine model

6BT5.9

Rated power/speed

100/2200kw/rpm

Dimension(LxWxH)

8015×2380×3050mm

Operating weight(Standard)

11200kg

Performance specification

Traveling speed, forward

5,8,13,20,30,42km/h

Traveling speed, reverse

5,13,30km/h

Tractive force(f=0.75)

61.3KN

Max. grade ability

30%

Tire inflation pressure

300kPa

Working hydraulic pressure

16MPa

Transmission pressure

1.3~1.8MPa

Operating specification

Max. steering angle of front wheels

±49°

Max. lean angle of front wheels

±17°

Max. oscillation angle of front axle

±15°

Max. oscillation angle of balance box

16

Frame articulation angle

±27°

Min. turning radius using articulation

6.6m

Blade

Maximum lift above ground

410mm

Maximum depth of cutting

515mm

Maximum blade position angle

90°

Blade cutting angle

54°-90°

Circle reversing rotation

360°

Moldboard width X height

3710×610mm

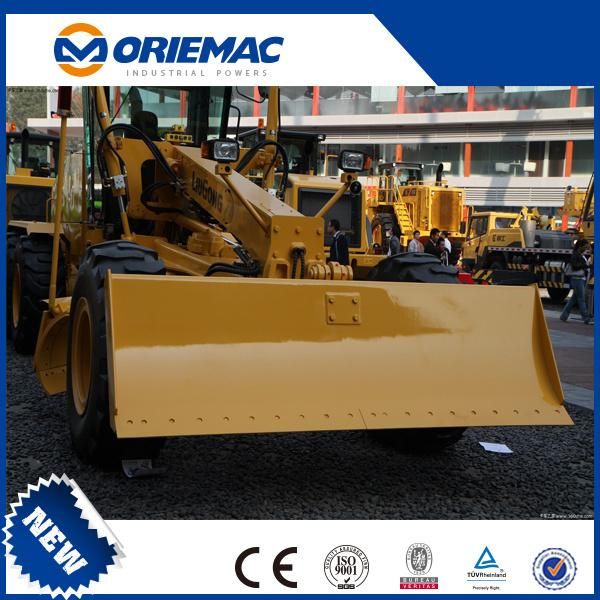

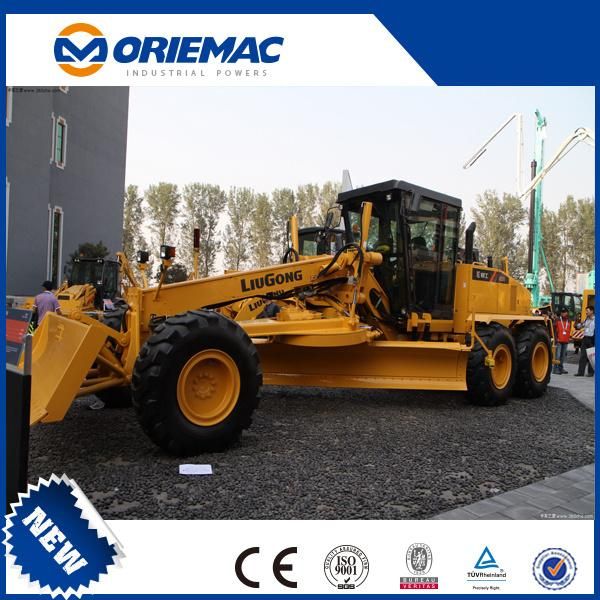

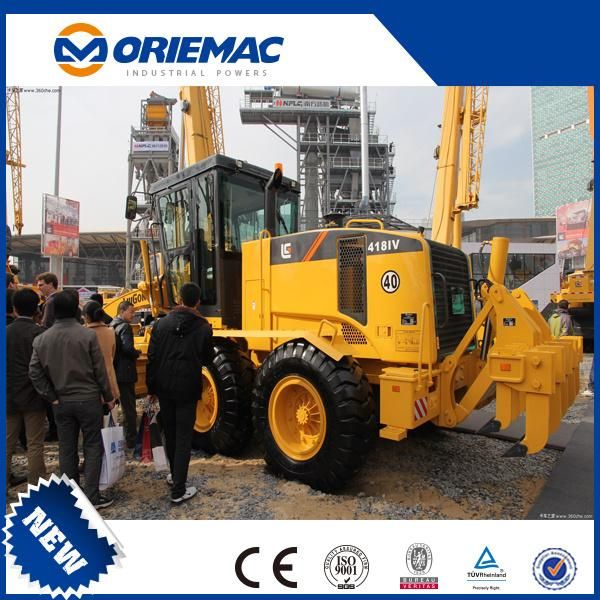

Product Pictures
