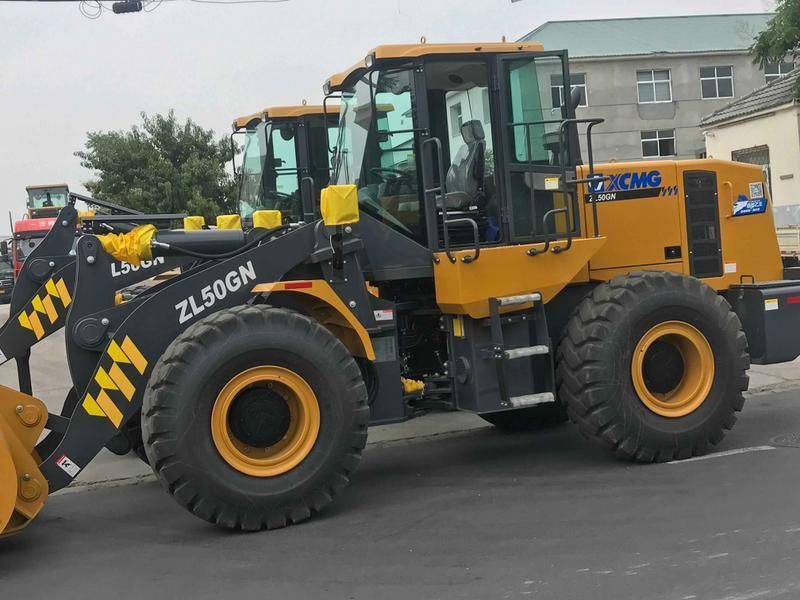

• Model NO.：Zl50gn
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Dimension：8620*3515*2850mm
• Total Weight：17500kg
• Maximum Breakout Force：170kn
• Max.Tractive Force：165kn
• Gradeability：30°
• Transport Package：Container,Roro,Bulk
• Specification：ISO
• Trademark：Sinomada
• Origin：China
• HS Code：8429510000
• Production Capacity：50unit,Month

Overview Product Description

In recent years, XC made numerous breakthroughs in loader technology development and continously make history in loader industry. Implementation of "service throughout full life cycle" brings about trouble-free lifetime experience! Marketing service network spread around the world covers extensive areas.

Great strength
Tilt cylinder bore of 160mm, enlarge the boom cylinder bore from 110mm to 125mm, and increase the boom lifting force by 29%.
12-ton strong tilt drawing force guarantees the outstanding adaptation to various tough conditions.
7-ton strong boom lifting force ensures various operation methods of high intensity.

High efficiency
The adopted 125 work pump features large displacement, strong oil supply, and the total time of three devices is only 10.3s.
The turning radius is only 5420mm, short running distance, fast loading speed, saving the fuel and high efficiency.
Single pump distribution, load-sensing steering, large flow, enough power, simple and high efficiency.

High strength
Heavy load design. The front and rear frames adopt box type, featuring thickness and high intensity.
The key structural parts adopt finite-element analysis, ensuring the adaptation to various dangerous working conditions.

Long service life
The key articulated positions feature two-stage dust-proof, less abrasion and longer service life.
Wear resistant blade and bucket teethfeature longer service life.
The hydraulic pipe adopts 24° cone and O ring, settling the issue of leakage.
Easily worn oil pipe is equipped with the protective bush, prolonging the service life.

High factor of full bucket
Long bucket bottom, sharp bucket type, easily cutting in, much material.
Lessen the opening angle, reduce the section, easily push in and lift.

Convenient maintenance
The independent chamber design of the hydraulic oil tank return circuit guarantees the conveninence of the maintenance.

Product Parameters ltemParametersUnitRated load5000kgRated bucket capacity3m³Total weight17500kgDumping height(from ground to main blade plste)3090mmDumping distance(from the front wheel to main blade plate)1130mmMaximum breakout force170KNMax.tractive force165KNLifting time of swing arm≤6.5sTotal cycling time≤11sMinimum turning radius(outer edge of bucket)7300mmMinimum turning radius(tire center)6400mmArticulated angle35°Gradeability30°tire size23.5-25 Overall demension of machine(L×W×H)8165×3016×3485mmEngine modelWD10G220E23 Rated power/rotate speed162/2000kW/r/minTravel speedGear I(F/R)0~11.5/0~16.5km/hGear II(F)0~38km/h Detailed Photos
