• Model NO.：FL956H
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Rated Load(Kg)：5000
• Operating Mass (Standard)(Kg)：16600
• Bucket Capacity(M³)：2.8m3
• Boom Lifting Time(S)：5.57
• Sum of Three Items(S)：10.2
• Gearbox Shift：Front : 2 Gears Rear: 1gears
• Transport Package：Nude
• Specification：5ton
• Trademark：lovol
• Origin：China
• HS Code：8454513213
• Production Capacity：100units,Month

Complete machine parametersRated load(kg)5000Operating mass (standard)(kg)16600Bucket capacity(m³)2.8Boom lifting time(S)5.57Sum of three items(S)10.2Max. traction force(kN)≥160Max. breakout force(kN)≥175Running systemForward speed range(km/h)42Backward speed range(km/h)17.5Gearbox shiftFront : 2 gears rear: 1gearsMax. gradeability(°)30Steering angle(°)37°+-1°Tire model23.5-25Service brakeSingle circuit, air-over-oil four-wheel caliper disc brakeParking brakeflexible shaft control caliper disc brakeTire center(mm)5665Outside of bucket(mm)6850Hydraulic systemWorking system pressure(Mpa)18Working system displacement(ml/r)100Steering system pressure(Mpa)16Steering system displacement(ml/r)80Hydraulic oil volume(L)210Working scopeOutline dimension(mm)7700×2980×3430Wheelbase(mm)2920Track(mm)2250Min. grounding distance (at hinge position)(mm)480Max. unloading height(mm)3135Unloading distance at max. unloading height(mm)1195Engine parametersModelWeichai WD10G220E23TypeSix-cylinder, in-line, direct injection, turbocharging, and water coolingRated power(Kw/rpm)162/2200Max. torque / speed(N.m/rpm)890//Cylinder bore x stroke(mm)Φ126Χ130Displacement(L)9.726Fuel consumption rate at rated working condition(g/Kw.h)210.5Fuel tank capacityt(L)

280

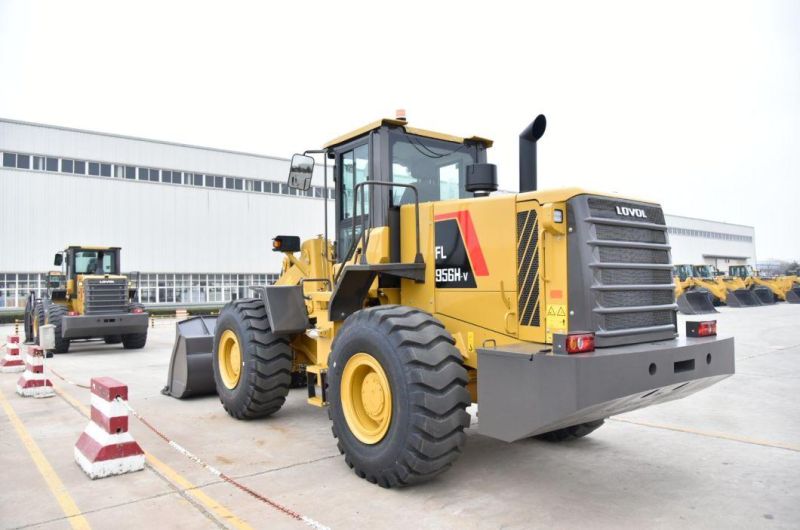

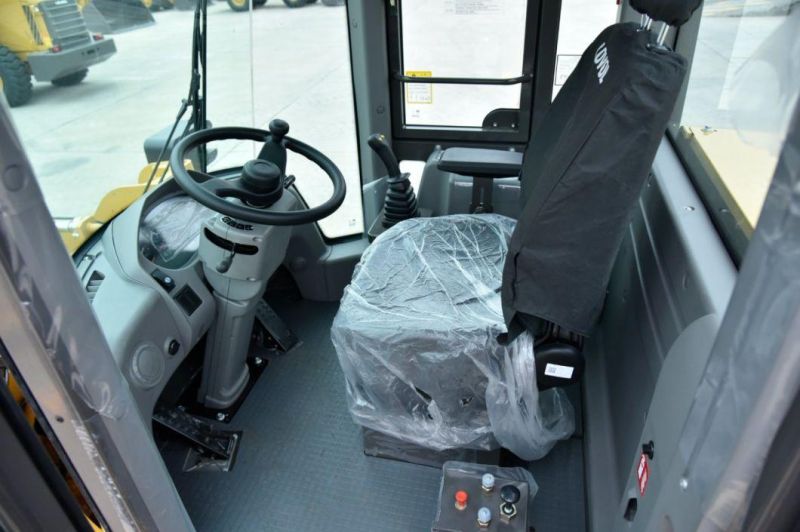

Product Photos:


Company Information:
