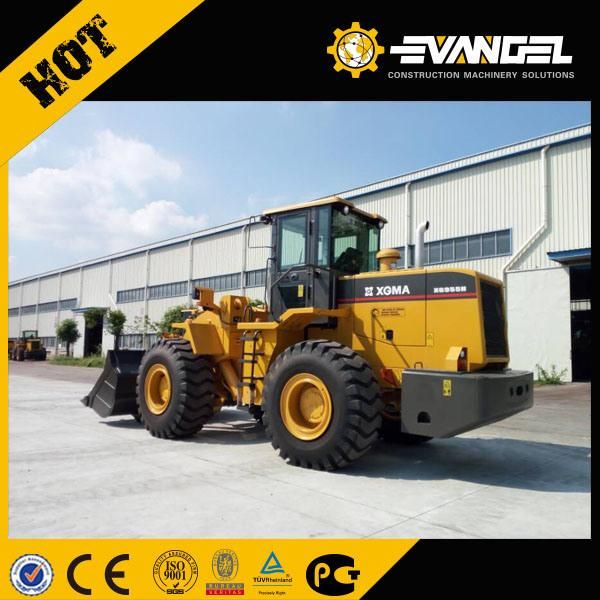

Hot Sale Chinese 5 Ton Front Wheel Loader (XG958H)

Evangel Industrial (Shanghai) Co., Ltd.
  • Certification：ISO, CE
  • Condition：New
  • Rated Load：3-6t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：XG958H
  • Type：Small Loader
  • Bucket Capacity：2.2-3.6m3
  • Power(W)：160kw
  • Rated Speed (R/Min)：2200
  • Transport Package：Nude Package
  • Specification：8130*3450* 2880mm
  • Trademark：EVANGEL
  • Origin：China
  • Production Capacity：100 Pieces, Month

Description

ManufacturerXGMAModelXG958HOverall length(mm)8130Overall height(mm)3450Overall width(mm)2880Wheel base(mm)3200Ground clearance(mm)460Tread(mm)2240Bucket Width (mm)3000Turn radius(mm)6195Min.Turn radius outside of bucket (mm)7090 4240Max. Dumping Height(mm)3355Dumping Reach(mm)1160Digging depth(mm)60 47   Engine modelSC11CB220G2B1Rated power (kw)162/160Fuel comsumption per hour(g/kw.h )230/229Rated speed (r/min)2200Max torque(N.m)844/908Operating Weight (Tonnes)17.4Rated Load(Tonnes)5Bucket capacity (m3)2.2-3.6Lifting time/Lifting, dumping and lowering(s)6/11Max Breakout force(KN)170Max. turning angle(°)±35°Fuel tank(L)340Hydraulic tank(L)305Working pressure of steering hydraulic system(MPa)15Working pressure of load hydraulic system(MPa)18Travel speeds(km/h)FORWARD 1ST0~7FORWARD 2ND0~12.5FORWARD 3RD0~25.5FORWARD 4TH0~38REVERSE 1ST0~7REVERSE 2ND0~12.5REVERSE 3RD0~25.5
