• Model NO.：CLG856H
• Type：Small Loader
• Total Cycling Time：11 S
• Gradeability：30 Degree
• Tire Size：23.5-25
• Transport Package：Nude Package
• Specification：8165*3016*3485mm
• Trademark：EVANGEL
• Origin：China
• Production Capacity：100 Pieces, Month

Basic Info.

Model NO. CLG856H Type Small Loader Total Cycling Time 11 S Gradeability 30 Degree Tire Size 23.5-25 Transport Package Nude Package Specification 8165*3016*3485mm Trademark EVANGEL Origin China Production Capacity 100 Pieces/ Month

Product Description

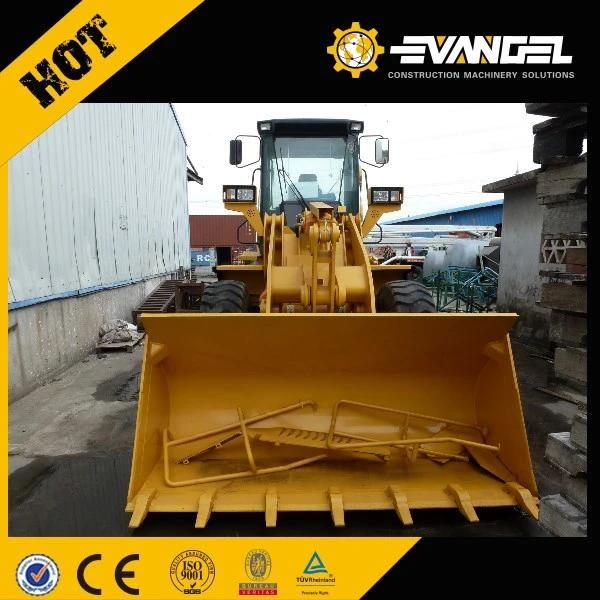

2019 Chinese brand  Liugong big hydraulic 5 ton wheel loader (CLG856H)

Features:

Wheel Loader is a kind of earthwork construction machinery widely used in highway, railway, construction, hydropower, port, mine and other construction projects. It is mainly used for shoveling bulk materials such as soil, sand, lime, coal, etc. It can also be used for slight shoveling and excavation of ores, hard soil, etc. Different auxiliary working devices can also be used for bulldozing, lifting and loading and unloading of other materials such as wood.

Advantage:

♠ Fast operation and high efficiency

♠ Good maneuverability

♠ Simple and portable operation

parameters:

ltem	Parameters	Unit
Rated load	5000	kg
Rated bucket capacity	3	m³
Total weight	17500	kg
Dumping height(from ground to main blade plste)	3090	mm
Dumping distance(from the front wheel to main blade plate)	1130	mm
Maximum breakout force	170	KN
Max.tractive force	165	KN
Lifting time of swing arm	≤6.5	s
Total cycling time	≤11	s
Minimum turning radiu	7300	mm
Maximum turning radi	6400	mm
Articulated angle	35	°
Gradeability	30	°
tire size	23.5-25
Overall demension of machine(L×W×H)	8165×3016×3485	mm
Engine model	WD10G220E23
Rated power/rotate speed	162/2000	kW/r/min
