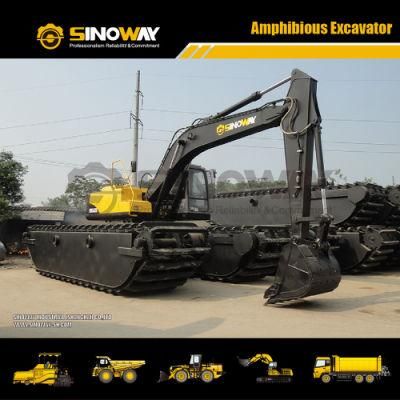

• Model NO.：SWEA220
• Transmission：Hydraulic Transmission
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：ISO9001: 2000, ISO14001
• Condition：New
• Engine Power：125HP
• Hydraulic System：Doosan
• Max. Reach：10.2 M
• Pontoon Length：8.5 M
• Track Shoe：Bolted
• Warranty：1 Year
• Chain Number：Three Strands
• Manhole：Optional
• Transport Package：Naked
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84294090
• Production Capacity：50PCS,Month
• Package size per unit product：1210.00cm * 600.00cm * 390.00cm
• Gross weight per unit product：42000.000kg

Engine ModelCummins/IsuzuTypeSix-cylinder,water-cooled turbocharged,mechanical injectionRated power125KWRated speed2100rpmMain Technical Specification Operating weight42000KgStandard bucket capacity1.1m3Slewing speed 11rpm11rpmStick digging force110KNBucket digging force150KNMain Features Tracked pontoon structure Big torque travelling device Big circular arc structure High capacity of fuel tank Main Applications River/Beach earth moving Swamp works Dredging applications Delta works Waterway deepening Hydraulic System Main pumpKAWASAKIMain valveKAWASAKIMotorKAWASAKIHydraulic flow rate2x235L/minHydraulic pressure32MPaTravelling System Travelling speed0~5.4km/hGrade ability65%Ground pressure0.0135MPaNo. of chains3Dimensions Overall length12100mmOverall width6000mmOverall height3900mmGround clearance1192mmLength of pontoon10200mmWidth of pontoon1760mmHeight of pontoon1700mmOperating Scope Stick length3000mmA: Max. cutting height10980mmB: Max. dumping height8140mmC: Max. digging depth6940mmD: Max. reach10290mm
