• Model NO.：HX18
• Size：Small-Scale
• Certification：ISO9001: 2000
• Condition：New
• Engine Power：18.1kw
• Rated Speed：2200r,Min
• Hydraulic System Pressure：16MPa
• Climbing Gradient：30°
• Walking Speed：3.5km,H
• Platform Turning Speed：10r,Min
• Maximum Pulling Force：11.5kn
• Total Length：3600 mm
• Width：1300 mm
• Height：2300 mm
• Maximum Digging Height：3300 mm
• Maximum Dumping Height：2200 mm
• Maximum Digging Depth：2000 mm
• Maximum Digging Radius：4000 mm
• Maximum Ground Digging Radius：2900 mm
• Transport Package：Container
• Specification：1800kg,set
• Trademark：Hixen
• Origin：China
• HS Code：84295212
• Production Capacity：200units,Month

Main Features:
1) High efficiency and low fuel consumption.
2) Convenient operation, compact design, flexible movement.
3) Adapting to various working conditions like hills and muddy areas.
4) Solid cast iron counterweight improves working stability.
5) Multi-purpose such as: Excavation, crushing, bulldozing, drilling, grabbing.

Applications:
1) Ditching and digging such as: Cable trench, water pipeline, oil and gas pipeline etc.
2) Exploitation of new land.
3) Municipal works such as landscaping.
4) Construction works such as road engineering.
5) Farming and greenhouse for trenching and digging.
6) Mine for loading and unloading.

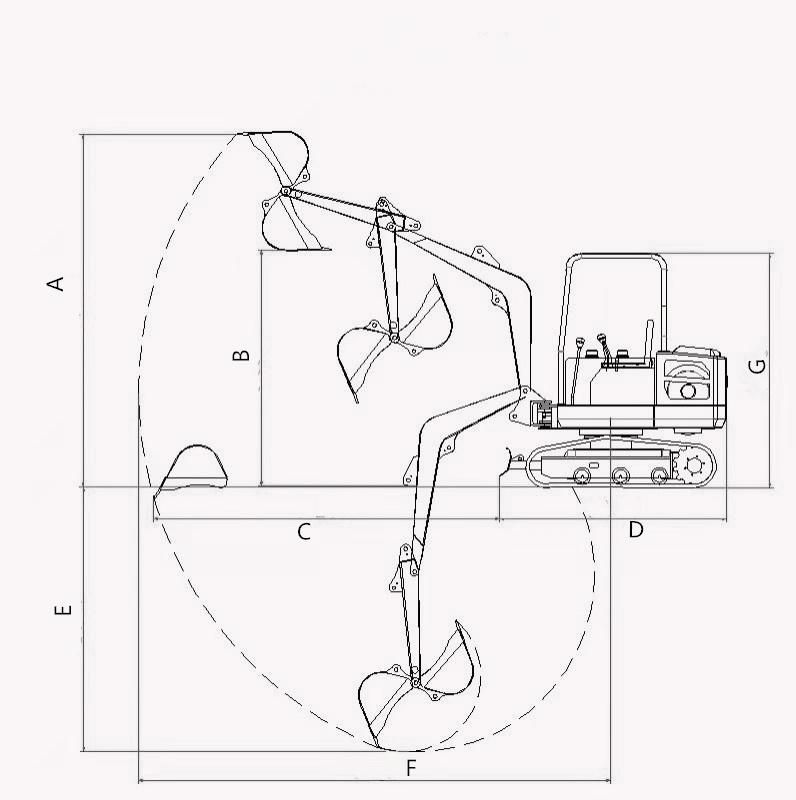

 BMax Dumping Height2200 mmCMax Ground Digging Radius2900 mmDMin Turning Radius 2100 mmEMax Digging Depth2000 mmFMax Digging Radius4000 mmGHeight:2200mm

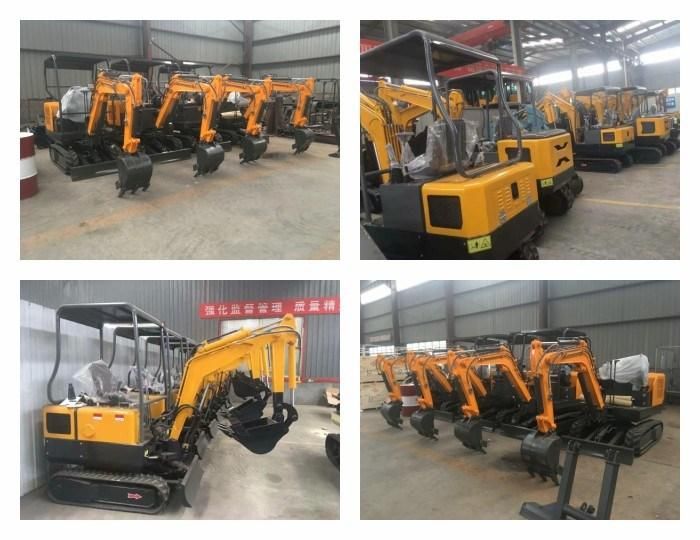

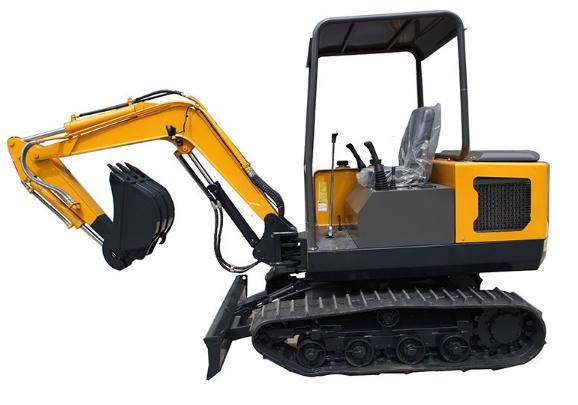

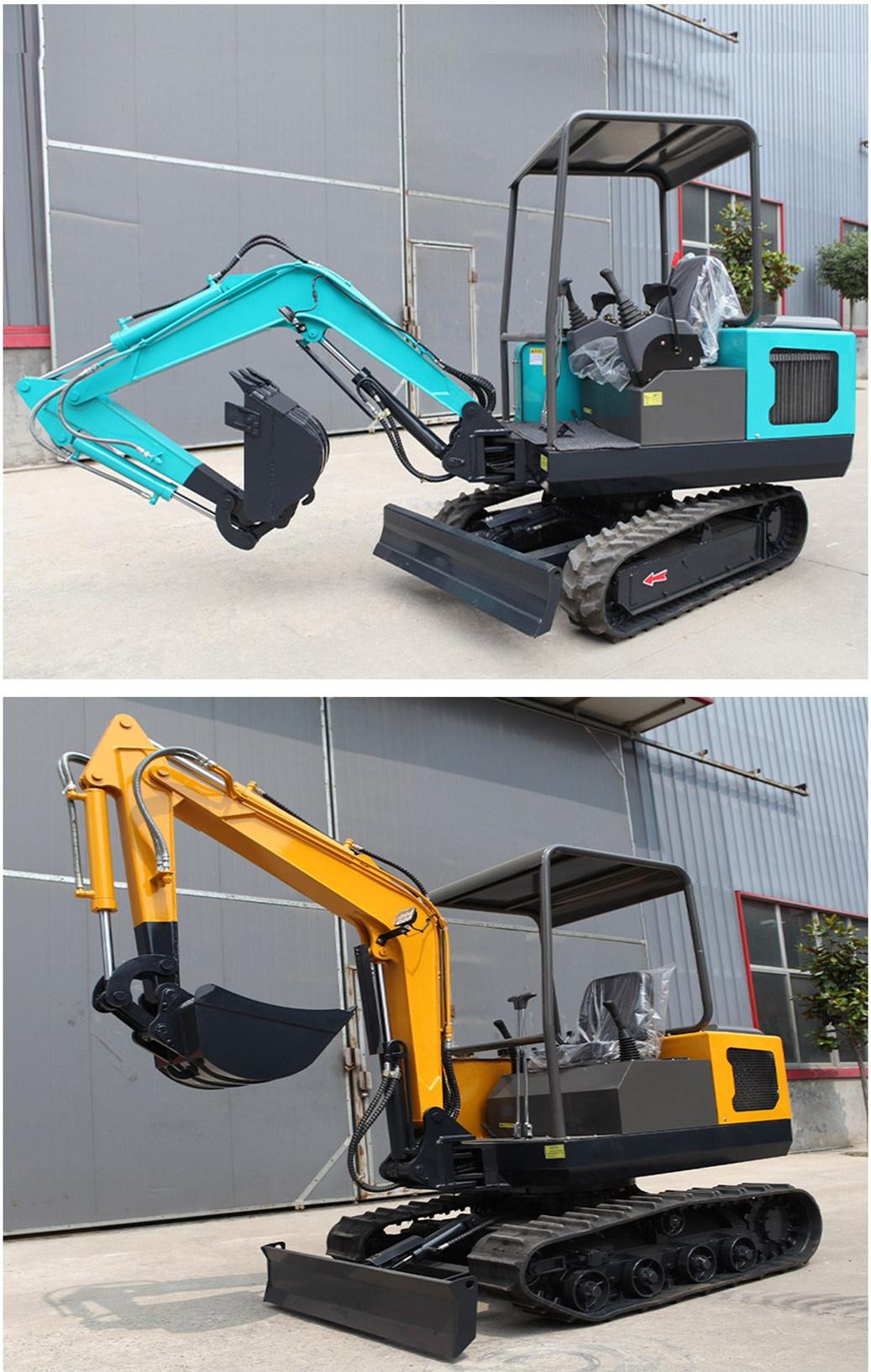

>>Product Display

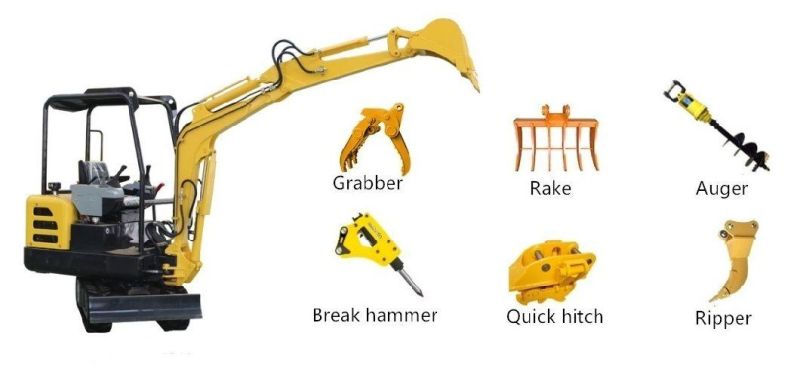

>>Replaceable Accessories




Shandong Hixen Machinery Co., Ltd, is a reputed manufacturer and exporter of construction machines, farm machines and mine machines with large years' experience.Located in the capital city Jinan of Shandong province, the company has developed into a comprehensive machinery group.


>>Our Workshop







>>FAQ
Q1.What is the delivery period?
After receiving the initial payment, the goods will be ready for delivery within 5 days.The rest time depends on the distance and transport method which need to be negotiated.

Q2.What is the payment terms can you accept?
30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.

Q3.How long is the product guarantee?
We provide one year quality guarantee.

Q4.What kind of service could you provide?
1) Pre-sale service:We could assist you finding the suitable equipment according to your requirement.
2) On-sale service:We strictly follow the commercial rules, contract signing, following the production process, controlling the goods quality, tracking the goods delivery, guaranteeing you receive the qualified goods safely.
3) After-sale service:We provide some consumables with the equipment;
We have operation manual for instructing the basic installation and operation;Video guidance for trouble shooting;Engineers ready for field maintenance and repairing when necessary.

Q5.Can we have the special order like specification change, logo making?
Yes, we accept the customization.We can make it clear in the contract and then our technical start design and production as per your requirement.

For more questions, please feel free to contact us.
We sincerely welcome all friends paying visits to us and reach a mutual success.
