16 Ton Motor Grader Gr2153 with Accessories

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Free Spare Parts
  • Warranty：1 Year
  • Certification：TUV, UL, ISO, RoHS, CE
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Hydraulic

Base Info

  • Model NO.：Gr2153
  • Walking Mode：Wheeled
  • Type：Medium-sized Grader
  • Engine Power：74~147kw
  • Transport Package：Container,Roro,Bulk
  • Specification：Standard Configuration
  • Trademark：Sinoamada
  • Origin：China
  • HS Code：8429201000
  • Production Capacity：500unit,Month

Description

Basic specificationEngine modelCUMMINS CTAA8.3 /SC 8D190G2B1Rated power/speed138kW/2200  140kW/2300rpmDimension(LxWxH)8900×2625×3470mmOperating weight(Standard)15400kgPerformance specificationTravelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.8)84KNMax. gradeability30%Tire inflation pressure260 MPaWorking hydraulic pressure18 MPaTransmission pressure1.3~1.8MPaOperating specificationMax. steering angle of front wheelsLeft / Right50°Max. lean angle of front wheelsLeft / Right17°Max. oscillation angle of front axleUp / down15°Max. oscillation angle of balance boxBefore / after15Frame articulation angleLeft / Right27°Min. turning radius using articulation7.3mBladeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°_70°Circle reversing rotation360°Moldboard height X width3965×610mm

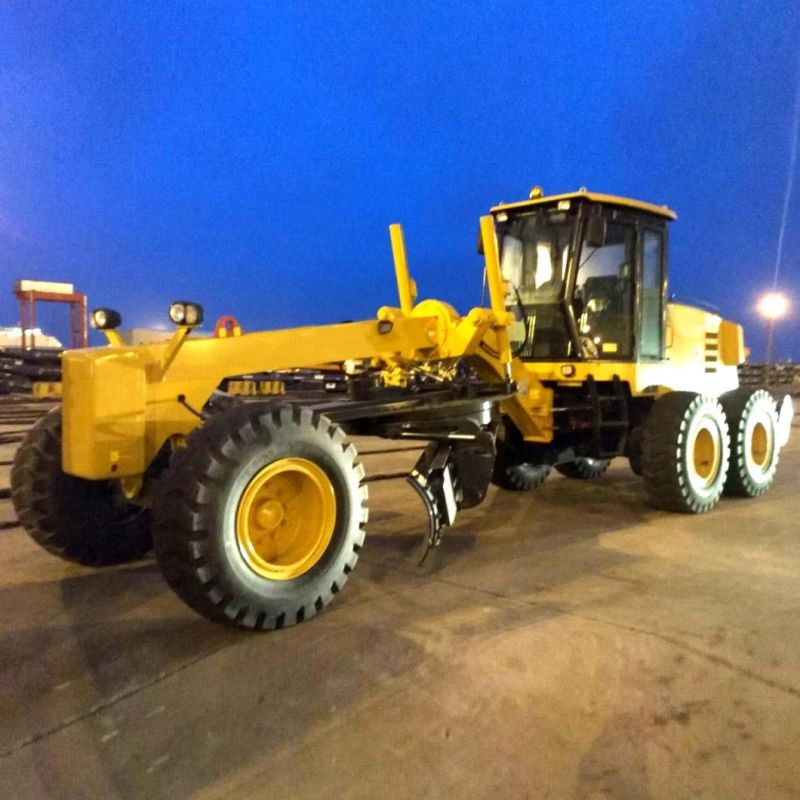

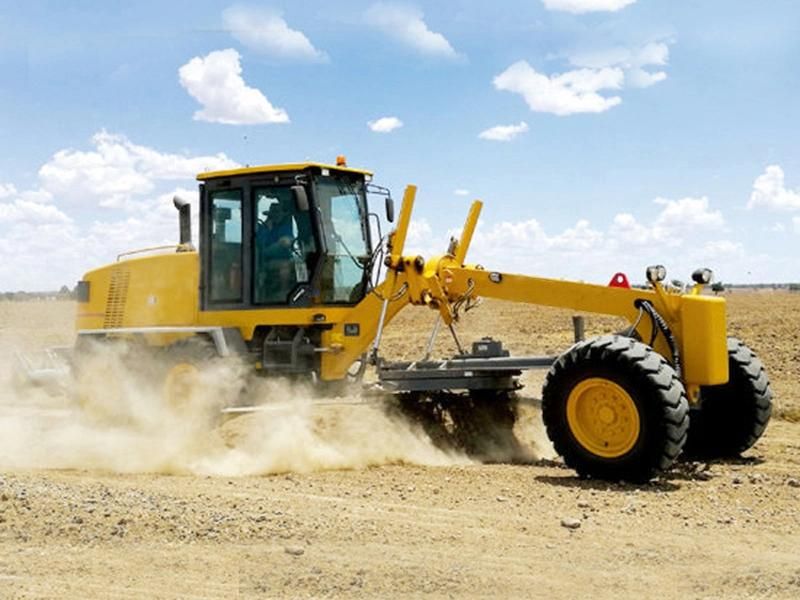

Product Photos:
16 Ton Motor Grader Gr2153 with Accessories16 Ton Motor Grader Gr2153 with Accessories
