• Model NO.：400*72.5*76W
• Drive Type：Internal Combustion Drive
• Bucket Capacity：1.0~1.5m³
• Size：Medium-Sized
• Certification：ISO9001: 2000
• Condition：New
• Material：Rubber and Steel
• Width：400mm
• Pitch：72.5mm
• Links：76 Can Be Customized
• Color：Black
• Transport Package：Wood Pallet or Bare Packaging
• Specification：400*72.5W*74
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：5000 Pieces,Month

Basic Info.

Model NO. 400*72.5*76W Drive Type Internal Combustion Drive Bucket Capacity 1.0~1.5m³ Size Medium-Sized Certification ISO9001: 2000 Condition New Material Rubber and Steel Width 400mm Pitch 72.5mm Links 76 Can Be Customized Color Black Transport Package Wood Pallet or Bare Packaging Specification 400*72.5W*74 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 5000 Pieces/Month

Product Description

Excavator Rubber track 400X72,5X76W fits for E60ZTS E62 E63 304CCR 305.5DCR 305C 305DCR 305ECR DAEWOO SOLAR 55.3 DOOSAN DX60 DX60R  EUROTRACH ES60TR HITACHI EX55 EX55 /1 EX55 /2 EX55 /3 KUBOTA KH055 KH055N


Applicable machines	various kinds of excavators
Material	rubber and steel
Specification	400*72.5W*76(can be customized)
Installation position	Installed on the excavators

Adapt to the model:


Model	Original Size	PUYI Size
E60ZTS |	400X72,5X76	400X72,5X76W
E62 |	400X72,5X76	400X72,5X76W
E63 |	400X72,5X76	400X72,5X76W
304CCR | CATERPILLAR	400X72,5X76	400X72,5X76W
305.5DCR | CATERPILLAR	400X72,5X76	400X72,5X76W
305.5ECR | CATERPILLAR	400X72,5X76	400X72,5X76W
305C | CATERPILLAR	400X72,5X76	400X72,5X76W
305CCR | CATERPILLAR	400X72,5X76	400X72,5X76W
305DCR | CATERPILLAR	400X72,5X76	400X72,5X76W
305ECR | CATERPILLAR	400X72,5X76	400X72,5X76W
SOLAR 55.3 | DAEWOO	400X72,5X76	400X72,5X76W
DX60 | DOOSAN	400X72,5X76	400X72,5X76W
DX60R | DOOSAN	400X72,5X76	400X72,5X76W
DX62R3 | DOOSAN	400X72,5X76	400X72,5X76W
DX63.3 | DOOSAN	400X72,5X76	400X72,5X76W
E57 | EUROCOMACH	400X72,5X76	400X72,5X76W
E60 | EUROCOMACH	400X72,5X76	400X72,5X76W
ES57ZT | EUROCOMACH	400X72,5X76	400X72,5X76W
ES60TR | EUROCOMACH	400X72,5X76	400X72,5X76W
T500A | EUROTRACH	400X72,5X76	400X72,5X76W
FX055 | FURUKAWA	400X72,5X76	400X72,5X76W
FX55 | FURUKAWA	400X72,5X76	400X72,5X76W
EX55 | HITACHI	400X72,5X76	400X72,5X76W
EX55 /1 | HITACHI	400X72,5X76	400X72,5X76W
EX55/2 | HITACHI	400X72,5X76	400X72,5X76W
EX55/3 | HITACHI	400X72,5X76	400X72,5X76W
ROBEX 55.3 | HYUNDAI	400X72,5X76	400X72,5X76W
ROBEX 55.7 | HYUNDAI	400X72,5X76	400X72,5X76W
ROBEX 55.9 | HYUNDAI	400X72,5X76	400X72,5X76W
ROBEX 60CR.9 | HYUNDAI	400X72,5X76	400X72,5X76W
KH055 | KUBOTA	400X72,5X76	400X72,5X76W
KH055N | KUBOTA	400X72,5X76	400X72,5X76W
906C | LIUGONG	400X72,5X76	400X72,5X76W
EC60 | NEW HOLLAND	400X72,5X76	400X72,5X76W
HR20 | SCHAEFF	400X72,5X76	400X72,5X76W
HR21 | SCHAEFF	400X72,5X76	400X72,5X76W
HR22 | SCHAEFF	400X72,5X76	400X72,5X76W
TB260 | TAKEUCHI	400X72,5X76	400X72,5X76W
TC60 | TEREX	400X72,5X76	400X72,5X76W

Specifications of rubber tracks:

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks.

2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks.

3. Rubber tracks permit machines to travel at a higher speed than steel tracks.

4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of machine and decreasing operator's fatigue.

5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30 kg/m2, a major reason for its use on wet and soft terrain.

6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.

7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.


The characteristics of rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed.


Parameters:

Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76

Quality Control:

1.Ex works Inspection

2.Products Audits/Examination(Strict inspection according to customer's request)

3.Production Procedure Audit/Examination(Entire Procedure Control)

4.Raw material Inspection/Examination;Purchased Parts Inspection(Including All Purchased Material)

Rubber track warranty

 Rubber Tracks are 12 months warranty,If there is any quality problem,during the warranty period,we are responsible for the replacement of the new rubber track,just need to provide photos of the tracks as they sit on the machine and serial number on the tracks.

Company introduction:

Serving since 2000,POOYERT has been supplying the construction industry with premium grade replacement rubber track and rubber pads that can be widely applied in construction machinery,agricultural machinery and other specialized vehicles.

Made of all natural rubber and high quantity synthetic rubber compounds including carbon black,and continuous steel cords that are protected with thick vulcanized rubber,POOYERT leads the way in today's modem track manufacturing.POOYERT tracks are produces under strict quality guidelines and have ISO9001 Accredited Certification.

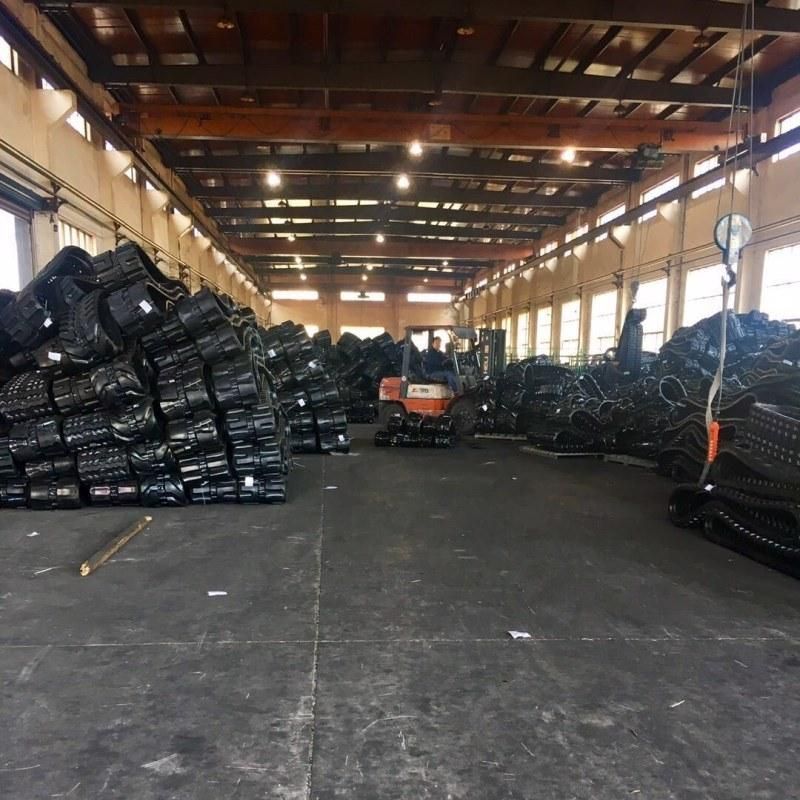

Warehouse:
