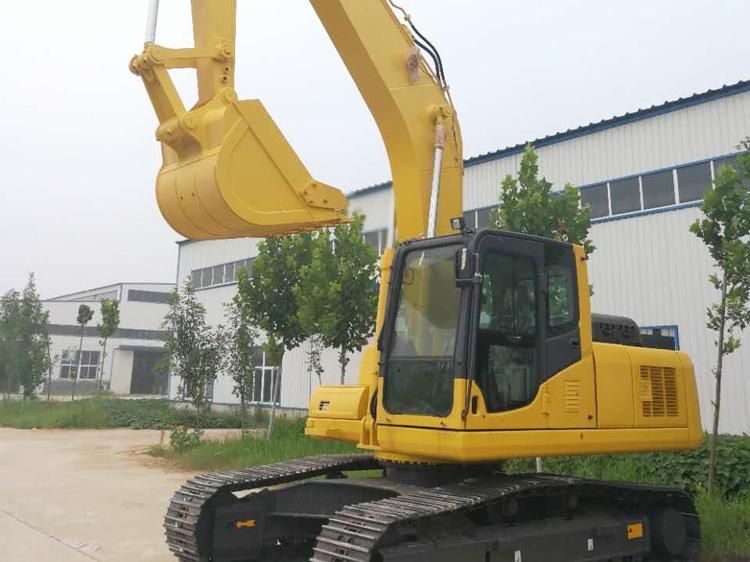

New Condition Se500LC 50ton 3m3 Bucket Capacity Hydraulic Pump Excavator
Sinomada Heavy Industry (Changsha) Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：3m3
Base Info
- Model NO.：SE500LC
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Trademark：SHANTUI
- Origin：China
Description
Basic Info.
Model NO. SE500LC Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Trademark SHANTUI Origin ChinaProduct Description
New Condition SE500LC 50Ton 3m3 Bucket Capacity Hydraulic Pump Excavator Enhanced working device1. The design of structural parts is comprehensive optimized and the critical load-carrying locations are reinforced to resist against severe working conditions.
2. The baseplates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.
3. The booms, bucket arms, and buckets of diversified specifications can be combined easily to adapt to diversified working conditions.
High-end system configuration1. World's leading high-adaptability turbocharged engine.
2. The industry's top hydraulic configuration features high reliability, low pressure loss, high flow distribution efficiency, and smooth combination motion operations.
Spacious and comfortable operating environment1. The colors of the all-injection-molded interior trim parts are effectively matched as per ergonomics to mitigate the operator's visual fatigue.
2.The control devices are reasonably arranged to realize large space, broad vision, and convenient and comfortable operations.
3. The high-power A/C system and the air cushioned seat guarantee comfortable driving/riding.
4. The cab is installed with standard overhead and front lower protective nets to effectively safeguard the driver.
| Comparative item | SE500LC (Standard version) |
| Overall dimensions | |
| Overall length (mm) | 12240 |
| Ground length (During transport) (mm) | 7505 |
| Overall height (To the top of boom) (mm) | 3890 |
| Overall width (mm) | 3715 |
| Overall height (To top of cab) (mm) | 3345 |
| Ground clearance of counterweight (mm) | 1390 |
| Minimum ground clearance (mm) | 575 |
| Tail turning radius (mm) | 3840 |
| Track length (mm) | 5475 |
| Track gauge (mm) | 2760 |
| Track width (mm) | 3360 |
| Standard track shoe width (mm) | 600 |
| Turntable width (mm) | 3530 |
| Distance from slewing center to tail (mm) | 3800 |
| Working range | |
| Maximum digging height (mm) | 10435 |
| Maximum dumping height (mm) | 7590 |
| Maximum digging depth (mm) | 6630 |
| Maximum vertical digging depth (mm) | 4850 |
| Maximum digging distance (mm) | 10975 |
| Maximum digging distance at ground level (mm) | 10745 |
| Working device minimum turning radius (mm) | 4370 |
| Maximum lifting height of bulldozer blade (mm) | - |
| Maximum digging depth of bulldozer blade (mm) | - |
| Engine | |
| Model | QSM11(China III) |
| Type | Inline 6-cylinder, high pressure common rail, and water-cooled and turbocharged |
| Displacement (L) | 10.8 |
| Rated power (kW/rpm) | 280/2000 |
| Hydraulic system | |
| Type of hydraulic pump | Variable displacement duplex plunger pump |
| Rated working flow (L/min) | 2x392 |
| Bucket | |
| Bucket capacity (m³) | 2.5~3.0(2.5) |
| Swing system | |
| Maximum swing speed (r/min) | 9 |
| Brake type | Mechanically applied and pressure released |
| Digging force | |
| Bucket arm digging force (KN) | 285 |
| Bucket digging force (KN) | 305 |
| Operating weight and ground pressure | |
| Operating weight (kg) | 49500 |
| Ground pressure (kPa) | 86 |
| Traveling system | |
| Traveling motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 3.3/5.6 |
| Traction force (KN) | 364 |
| Gradeability | 70%(35°) |
| Tank capacity | |
| Fuel tank capacity (L) | 720 |
| Cooling system (L) | 24 |
| Engine oil capacity (L) | 35 |
| Hydraulic oil tank/system capacity (L) | 300/460 |
