• Model NO.：SD8N
• Color：Yellow
• Dozer：Tilt
• Operation Weight (Including Ripper) (Kg)：37000kg
• Track Gauge(mm) ：2083
• Gradeability ：30°,25°
• Dozing Capacity (M³)  ：11.24
• Blade Width (mm) ：3940
• Max. Digging Depth (mm)  ：582
• Overall Dimensions Without Ripper (mm)：6282*3940*3549
• Engine：Cummins Nta855-C360s10
• Transport Package：Nude Packaging
• Specification：SGS, BV
• Trademark：HBXG
• Origin：Hebei, China
• HS Code：8429199000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. SD8N Color Yellow Dozer Tilt Operation Weight (Including Ripper) (Kg) 37000kg Track Gauge(mm)  2083 Gradeability  30°/25° Dozing Capacity (M³)   11.24 Blade Width (mm)  3940 Max. Digging Depth (mm)   582 Overall Dimensions Without Ripper (mm) 6282*3940*3549 Engine Cummins Nta855-C360s10 Transport Package Nude Packaging Specification SGS, BV Trademark HBXG Origin Hebei, China HS Code 8429199000 Production Capacity 500 Sets/Month

Product Description

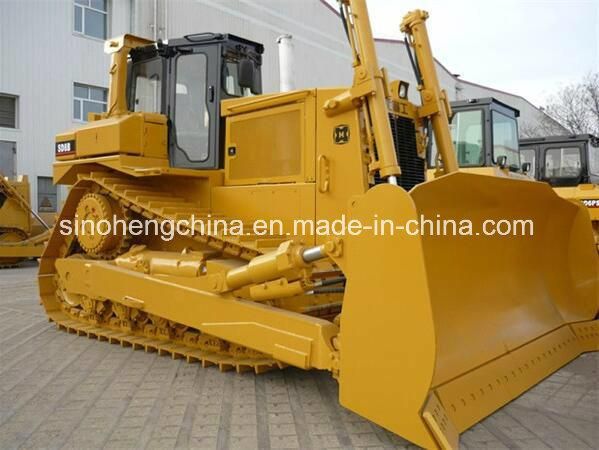

HBXG 37Ton 350HP Crawler Tilt Bulldozer with Ripper for sale SD8N
SD8N bulldozer is track-type dozer with elevated sprocket, hydraulic direct drive, semi-rigid suspended and pilot hydraulic controls. Equipped with hydraulic-mechanic type Torque converter, planetary, power shift transmission. It can be used in road building, hydro-electric construction, land clearance, port and mine development and other construction field.Specifications
Dozer                                                                  Tilt
Operation weight (including ripper) (Kg)                                   37000
Ground pressure(including ripper) (KPa)            93
Track gauge(mm)                                      2083
Gradeability                                              30°/25°
Min. ground clearance (mm)                            556
Dozing capacity (m³)                                                    11.24
Blade width (mm)                                        3940
Max. digging depth (mm)                              582
Overall dimensions without ripper (mm)      6282×3940×3549
Engine
Type                              Chongqing Cummins NTA855-C360S10
Rated revolution (rpm)                                              2100
Rated power (KW)                                                    257
Torque storage coefficient                                            20%
Undercarriage system
Type        The track is triangle shape.The sprocket is elevated elastic suspended.
Number of track rollers (each side)                                           8
Pitch (mm)                                                              216
Width of shoe (mm)                                                      560
Gear                   1st          2nd         3rd
Forward  (Km/h)            0-3.5          0-6.2           0-10.8
Backward (Km/h)            0-4.7          0-8.1           0-13.9
Implement hydraulic system
Max. system pressure (MPa)                                               20
Pump type                                                    Gears oil pump
System output(L/min)                                                  220
Driving system
Torque converter     Torque converter is power separating hydraulic-mechanic type
Transmission        Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch.      The steering clutch is hydraulic pressed, usually separated clutch.
Braking clutch       The braking clutch is pressed by spring, separated hydraulic, meshed type.
Final drive           The final drive is two-stage planetary reduction gear mechanism, splash lubrication.
