Manual Thermoplastic Extrusion Road Marking Machines Factory

Ningbo Ace Machinery Co., Ltd.

Type：Marking Vehicle
Object：Cement Concrete Pavement
Moving Type：Mobile
Mixing Method：Continuous Drum
Automatic Grade：Semi-Automatic
Product Capacity：>400t,h

Base Info

Model NO.：TW-H
Certification：ISO9001: 2000, CE
Condition：New
Outer Dimensions：1200*900*900mm
Total Weight of Machine：125kg
Capacity of Glass Beads Case：25kg
Capacity of Stirring Tank：105kg
Coat Thickness：1.2-4.0mm
LPG Tank Norm：15kg
Road Marking Machine Price：Road Marking Machine Price
Road Marking Glass Bead：Road Marking Glass Bead
Road Marking Resin：Road Marking Resin
Thermoplastic Road Marking Tape：Thermoplastic Road Marking Tape
Road Marking Pain：Road Marking Pain
Road Marking Reflector：Road Marking Reflector
Transport Package：Carton with Hob
Specification：120*90*90cm
Trademark：ACE
Origin：Ningbo, China
HS Code：8441100000
Production Capacity：5000PCS,Month

Description

No.Item

Technical parameters

1Outer dimensions1200 mm*900 mm*900mm2Total weight of machine125kg3Capacity of glass bead box25kg4Capacity of stirring tank105kg5Coat thickness1.2-4mm6Bead dispensing methodGear Driven, Automatically Clutch7Markingwidth50,80,100,120,150,200,230,250,300mm,the machine is more suitable for marking 450mm zebra stripes

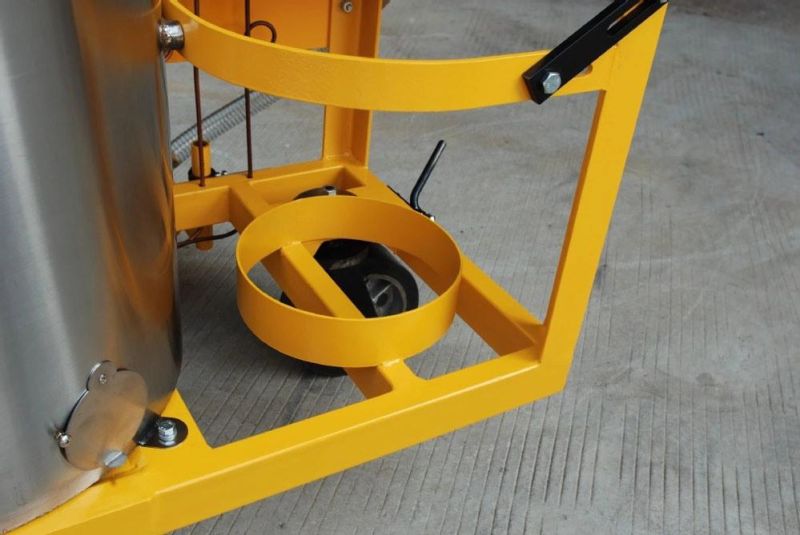

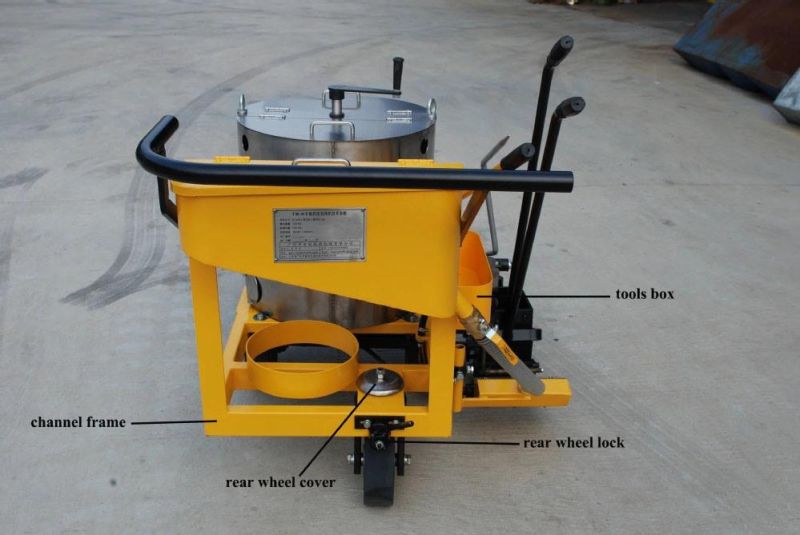

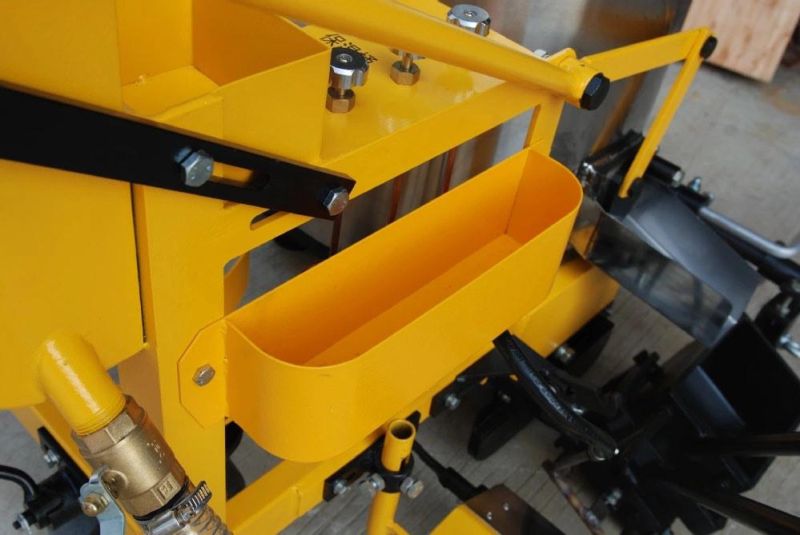

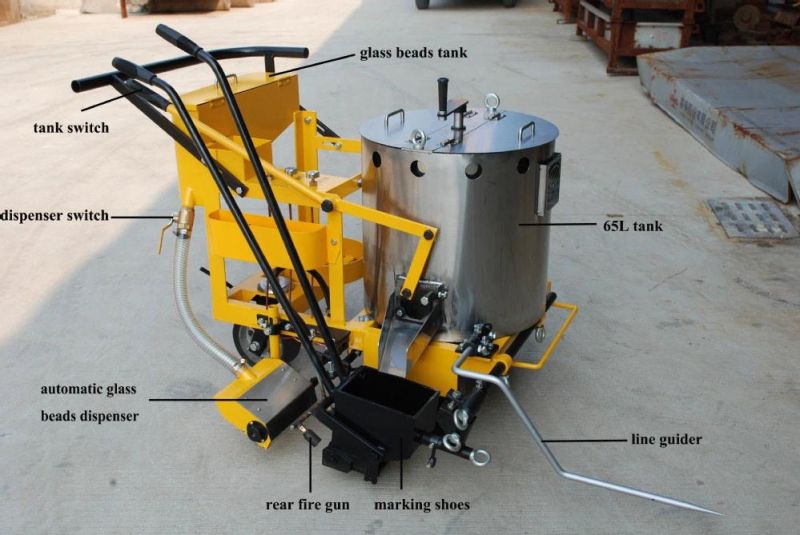

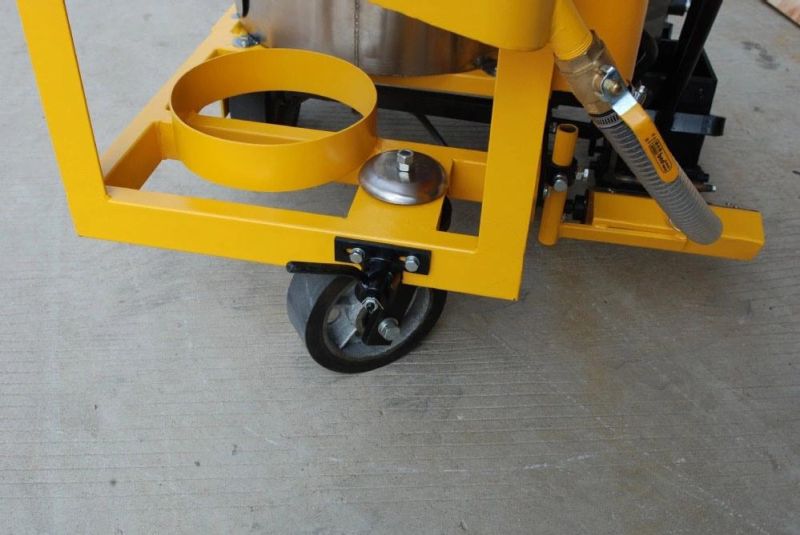

Product details

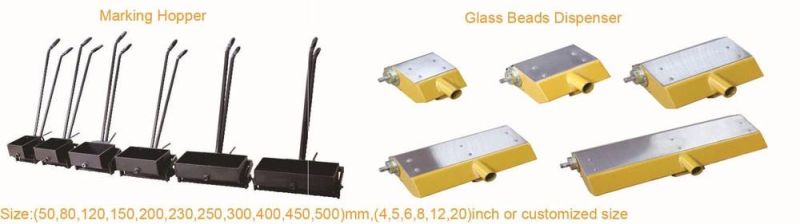

Accessories

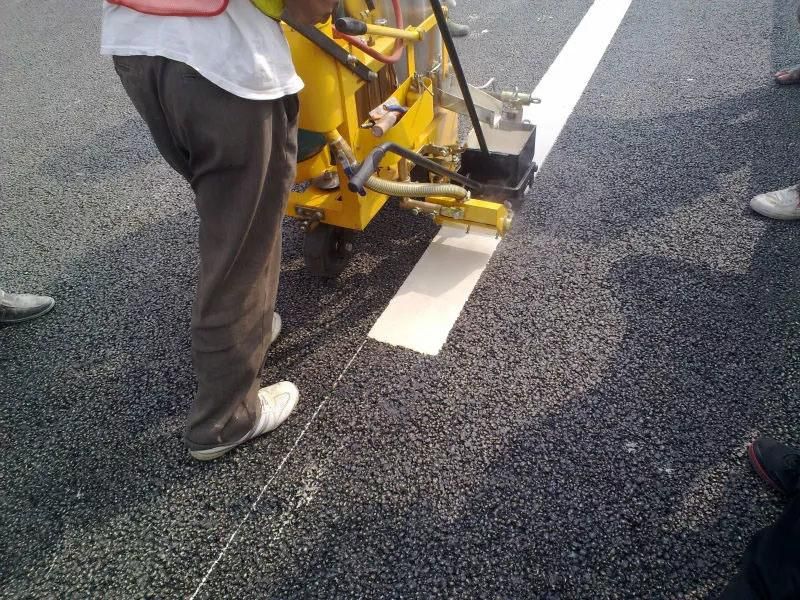

Working Pictures
Manual Thermoplastic Extrusion Road Marking Machines Factory

Manual Thermoplastic Extrusion Road Marking Machines Factory

Manual Thermoplastic Extrusion Road Marking Machines Factory
