• Model NO.：ZN50,ZN70,ZN90,ZN100
• Structure：Cylinder Type
• Productivity：75m²,h
• Feeding Height：1370mm
• Vibrating Amplitude：1.1mm
• Certification：CE
• Condition：New
• Model：Zn50
• Diameter：35
• Vibrating Frequency (Hz)：183
• Outside Dia of Flexible Hose (mm)：30
• Inner Dia of Flexible Hose (mm)：10
• Packing Size (mm)：750*750*55
• Length (M)：1 to 12
• Max. Vibration Force (Kn)：5.104
• Vibrating Amplitude (mm)：1.13
• Available Motor or Engine：Electric Motor, Gasoline Engine, Diesel Engine
• Transport Package：Carton
• Specification：44.5*22.5*33 cm
• Trademark：ACE
• Origin：China, Ningbo
• HS Code：84314990
• Production Capacity：5000 PCS,Month

Basic Info.

Model NO. ZN50/ZN70/ZN90/ZN100 Structure Cylinder Type Productivity 75m²/h Feeding Height 1370mm Vibrating Amplitude 1.1mm Certification CE Condition New Model Zn50 Diameter 35 Vibrating Frequency (Hz) 183 Outside Dia of Flexible Hose (mm) 30 Inner Dia of Flexible Hose (mm) 10 Packing Size (mm) 750*750*55 Length (M) 1 to 12 Max. Vibration Force (Kn) 5.104 Vibrating Amplitude (mm) 1.13 Available Motor or Engine Electric Motor, Gasoline Engine, Diesel Engine Transport Package Carton Specification 44.5*22.5*33 cm Trademark ACE Origin China, Ningbo HS Code 84314990 Production Capacity 5000 PCS/Month

Product Description

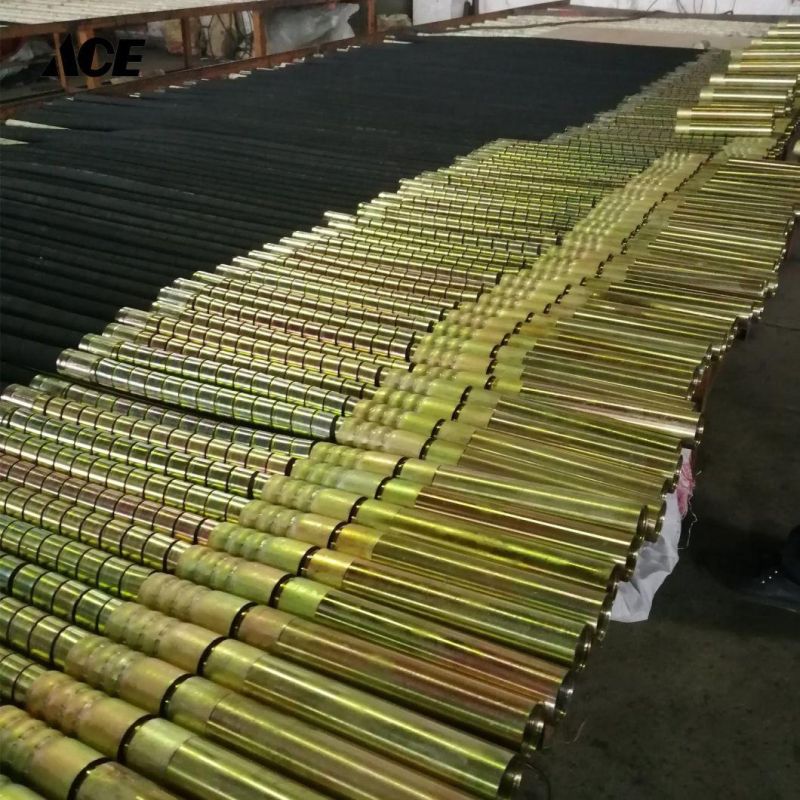

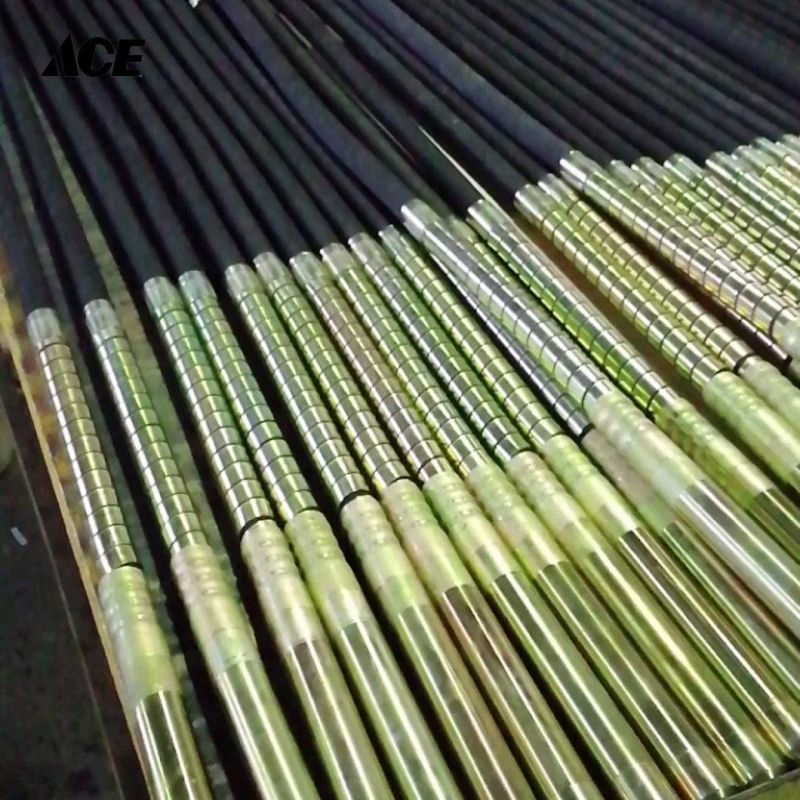

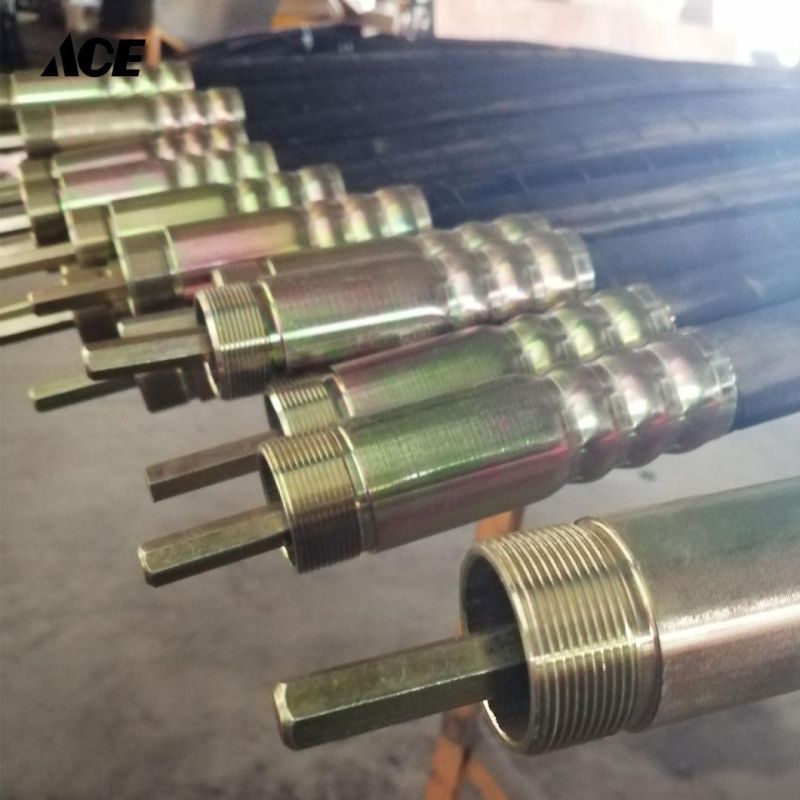

1 to 12 m Length Concrete Vibrator Shaft



Product Uses:

   Concrete Vibrator Shaft drive by Electric motor,gasoline engine and Diesel engine. It is suitable for common concrete compaction, widely uesd in many places such as the bridge, the harbor construction, the large-scale dam, the high-level building base irrigation pile acted as a column, the crowded mat reinforcement coagulation dirt wall, the major and medium small architectural engineering.



Characteristics:

Design in conformity with international and Simple standards

Excellent results on light duty jobs

Economical solution when it comes to internal vibration

Good mechanical performance

Low noise





Product Description:

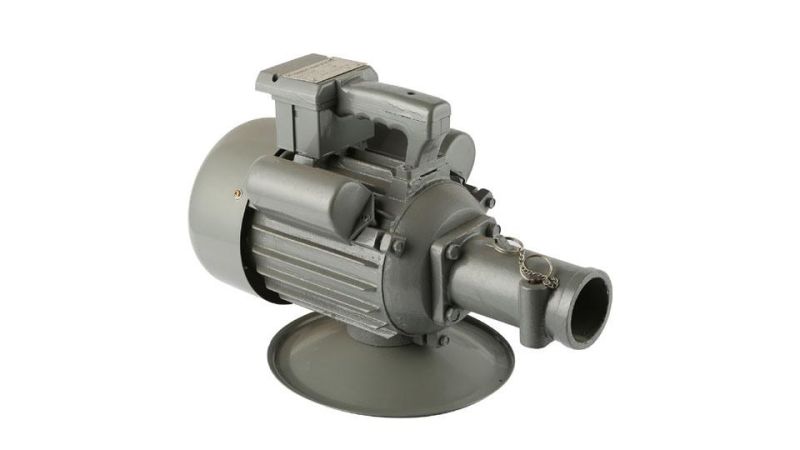

  The  Concrete vibrator needle   is also known as vibrating poker. It is available in various diameters,including 25mm,28mm,32mm, 35mm, 38mm,45mm,50mm,60mm,70mm and 75mm . It also can be attached to flexible tubes of various lengths ,varying form 1mtr to 12mtr . To be compatible with specific job requirements, the vibrator needle may take different type. Usually driven by the electric vibrator ,the poker also can be used in combination with gasoline vibrator or diesel vibrator .


Specification Date:

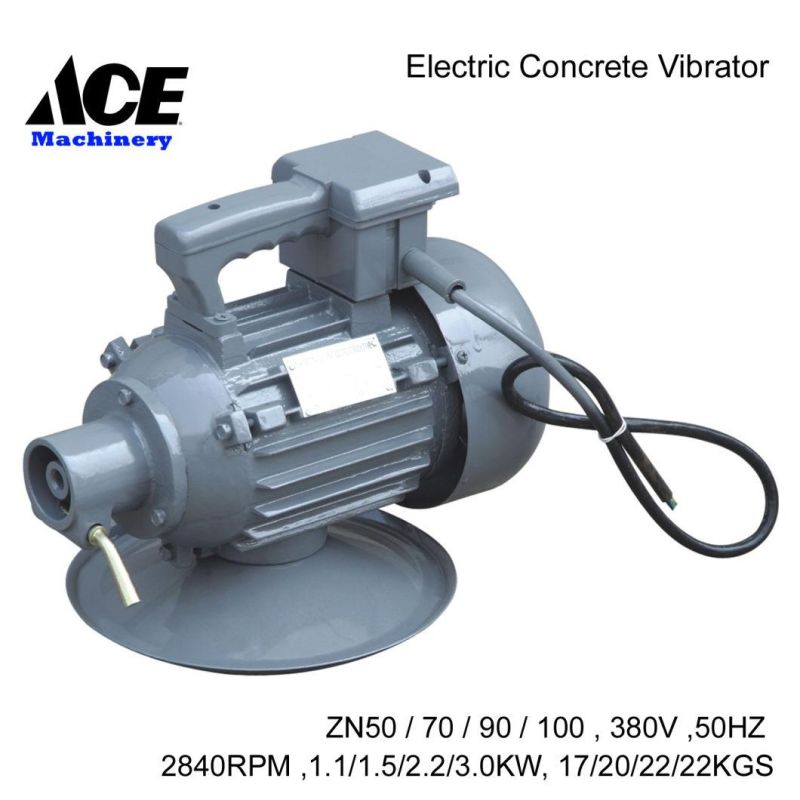

Model	ZN50	ZN70	ZN90	ZN100
Power(kw)	1.1	1.5	2.2	3.0
voltage(v)	380	380	380	380
Frequency(HZ)	50	50	50	50
Rotary speed(rpm)	2840	2840	2840	2840
Packing size(cm)	44.5*25.5*33	44.5*22.5*33	44.5*22.5*33	44.5*25.5*33
weight(kg)	17	20	22	22
packing	carton	carton	carton	carton
