• Model NO.：LZ-5A
• Certification：ISO9001: 2000, CE, SGS
• Condition：New
• Color：Customised
• Output Capacity：2.5-5.5m 3 ,H
• Suitable Mix Ratio(Cement/Sand)：≤1:3~5
• Max. Aggregate Size：15 mm
• Conveying Hose Inner Diameter：51 mm
• Conveying Pressure：0.2-0.4MPa

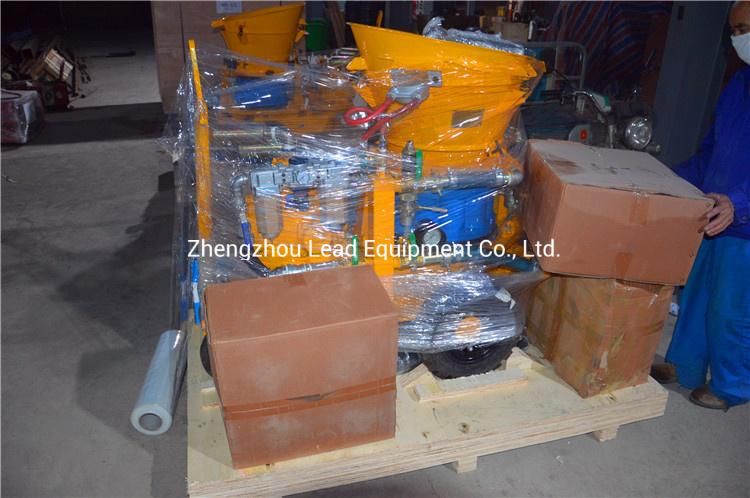

• Transport Package：Plastic Wrap, Plywood Case, Free-Fumigation
• Specification：ISO
• Trademark：Leadcrete
• Origin：China
• HS Code：84743100
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. LZ-5A Certification ISO9001: 2000, CE, SGS Condition New Color Customised Output Capacity 2.5-5.5m 3 /H Suitable Mix Ratio(Cement/Sand) ≤1:3~5 Max. Aggregate Size 15 mm Conveying Hose Inner Diameter 51 mm Conveying Pressure 0.2-0.4MPa Transport Package Plastic Wrap, Plywood Case, Free-Fumigation Specification ISO Trademark Leadcrete Origin China HS Code 84743100 Production Capacity 5000 Sets/Year

Product Description

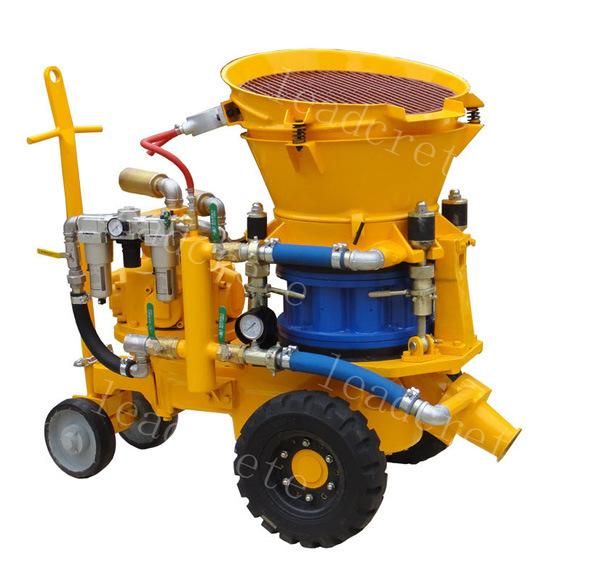

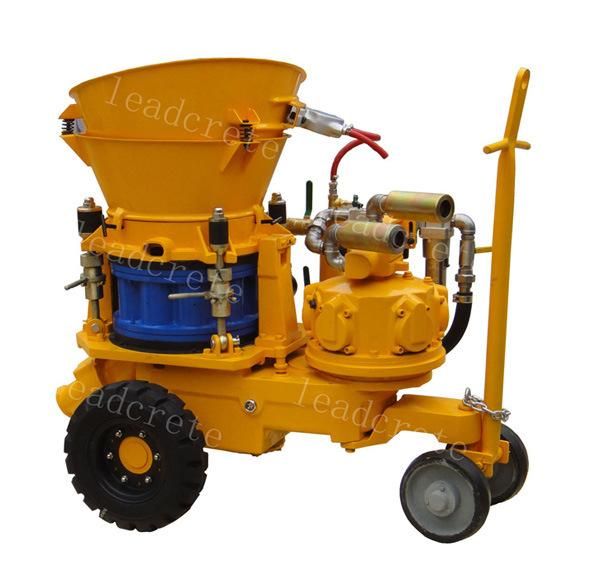

LZ-5A air motor type anti-explosion mining used shotcrete machine


LZ-5 is LEC medium-sized shotcrete machine for the processing of dry mix. And it is widely accepted and used by so many contractors.

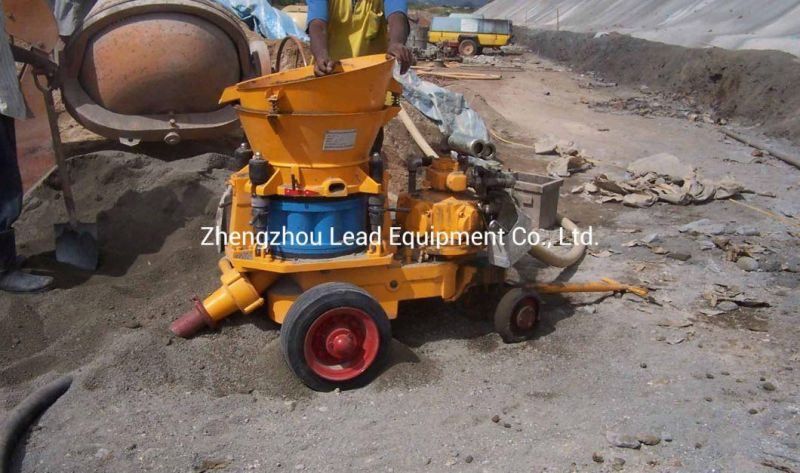

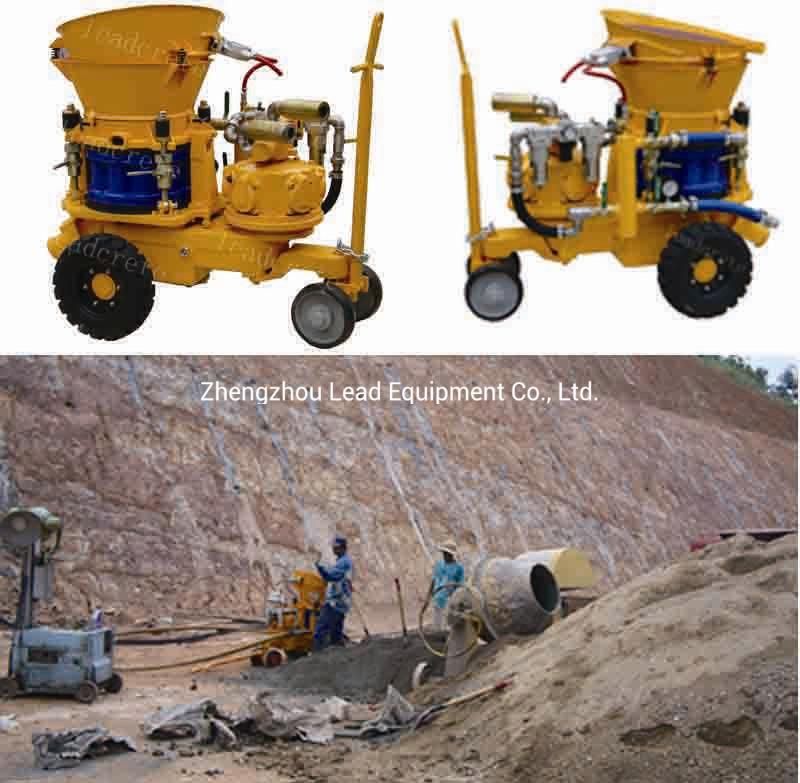

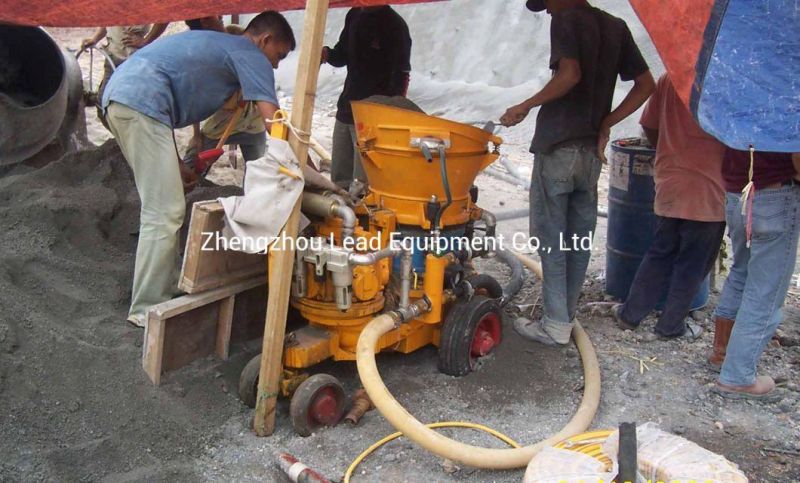

LZ-5 can be used for tunneling, mining operations, hydropower projects and hill side projects, etc.

LZ-5 is available in following versions:
Air motor drive, electric motor drive or diesel drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive Or diesel drive combined with Skid or Rail-wheel



Features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.

type	air motor drive
Output Capacity	2.5-5.5m 3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤1:3~5
Max. Aggregate Size	Φ15 mm
Conveying Hose Inner Diameter	Φ51 mm
Conveying Pressure	0.2-0.4MPa
Air Consumption for conveying material	7~8m 3 /min
Air Motor Air Pressure	0.5MPa
Material Charging Height	1.1m
Rotor Speed	11rpm
Air Motor Type	TMH6A
Air Motor Air Consumption	7.5m 3 /min
Overall Dimension(length×width×height)	1.35×0.75×1.2m
Net Weight	720kg
