• Model NO.：130x72x29
• Link：29
• Weight：10
• Market：Global
• Warranty：1 Year for Normal Usage
• Transport Package：Pallet or Carton
• Specification：130x72x29
• Trademark：POOYERT , OEM
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：500 Per Month

Basic Info.

Model NO. 130x72x29 Link 29 Weight 10 Market Global Warranty 1 Year for Normal Usage Transport Package Pallet or Carton Specification 130x72x29 Trademark POOYERT / OEM Origin Shanghai, China HS Code 8431499900 Production Capacity 500 Per Month

Product Description

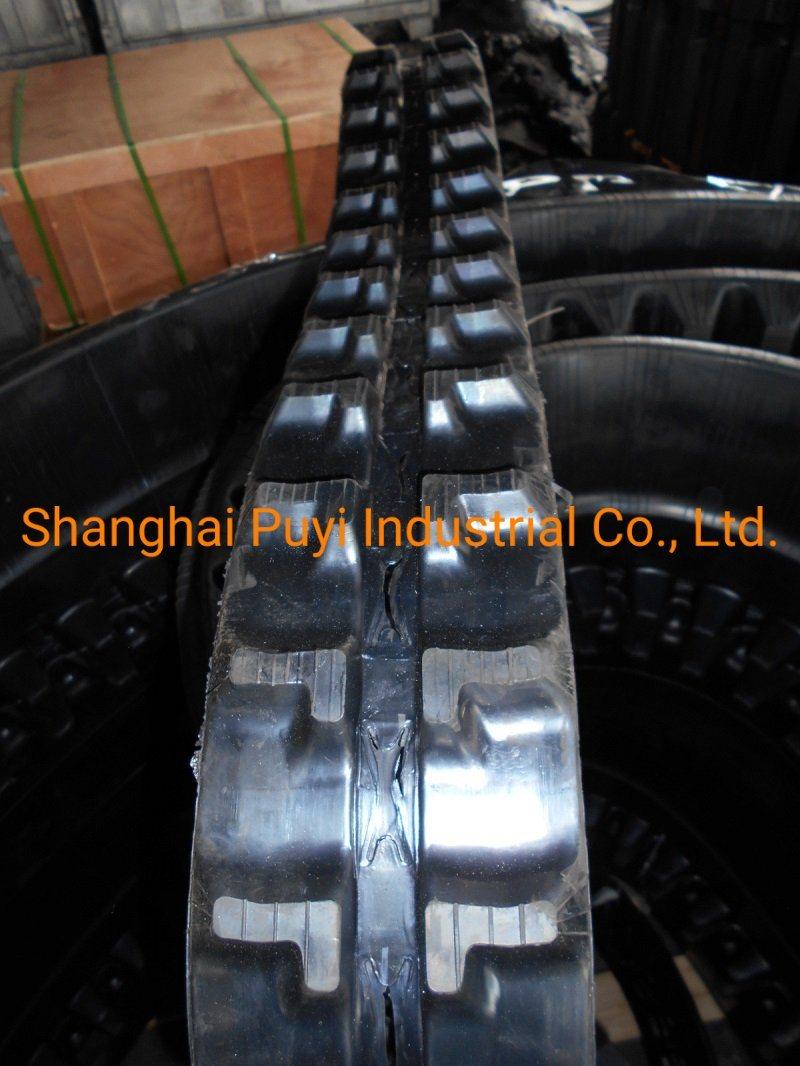

Kobelco SS60 Mini Excavator Rubber Tracks 130X72X29

1.Specification for the rubber track

*Width: 130mm;
*Pitch: 72
*Link:29
*Total length: 2088
*Weight: 10kg/pc



MODEL	ORIGINAL SIZE
40 (BROKK)	130X72X29
MINICUT (BROKK)	130X72X29
SS1 (KOBELCO)	130X72X29
SS60 (KOBELCO)	130X72X29



Other samll size we can supply

SIZE	WEIGHT/link	SIZE	WEIGHT/link
130*72	0.36	WD300*72	0.99
150*60	0.52	B300*84	2.88
150*72	0.55	T300*86	3.13
170*60	0.48	300*109KW	3.38
180*60	0.56	K300*109	3.56
180*72	0.64	300*109N	3.32
180*72K	0.87	300*109W	3.21
H180*72	0.77	320*52.5	1.69
190*60	0.59	320*54	1.81
190*60	0.59	B320*84	2.95
190*72	0.72	B320*86	2.99
200*72	0.84	B320*86SB	2.99
200*72K	1.07	B320*86C	3.01
230*48	0.87	B320*86Z	3.12
230*48K	1.06	B320*86CM	3.01
230*72	1.09	B320*86R	2.99
230*72K	1.34	T320*86	3.22
230*96	1.77	T320*86MB	3.3
230*101	1.92	T320*86SB	3.27
250*47	1.11	T320*86C	3.25
250*48.5	1.13	T320*86Z	3.53
250*52.5	1.04	320*90	2.85
250*52.5K	1.31	320*100	2.67
250*72	1.17	320*100W	3.01
B250*72	1.03	320*106	3.63
250*96	2.21	330*79	1.42

2. Production

All track production equipment is designed on site by qualified engineers according to stringent criteria in terms of quality and productivity. The whole team works hard to improve manufacturing processes in order to ensure performance and reliability of the tracks

3.The characteristics of rubber tracks

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks
2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks
3. Rubber tracks permit machines to travel at a higher speed than steel tracks
4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of machine and decreasing operator's fatigue



4.The notices of using rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).
2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).
3. Avoid sharp projections when traveling.
4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.
