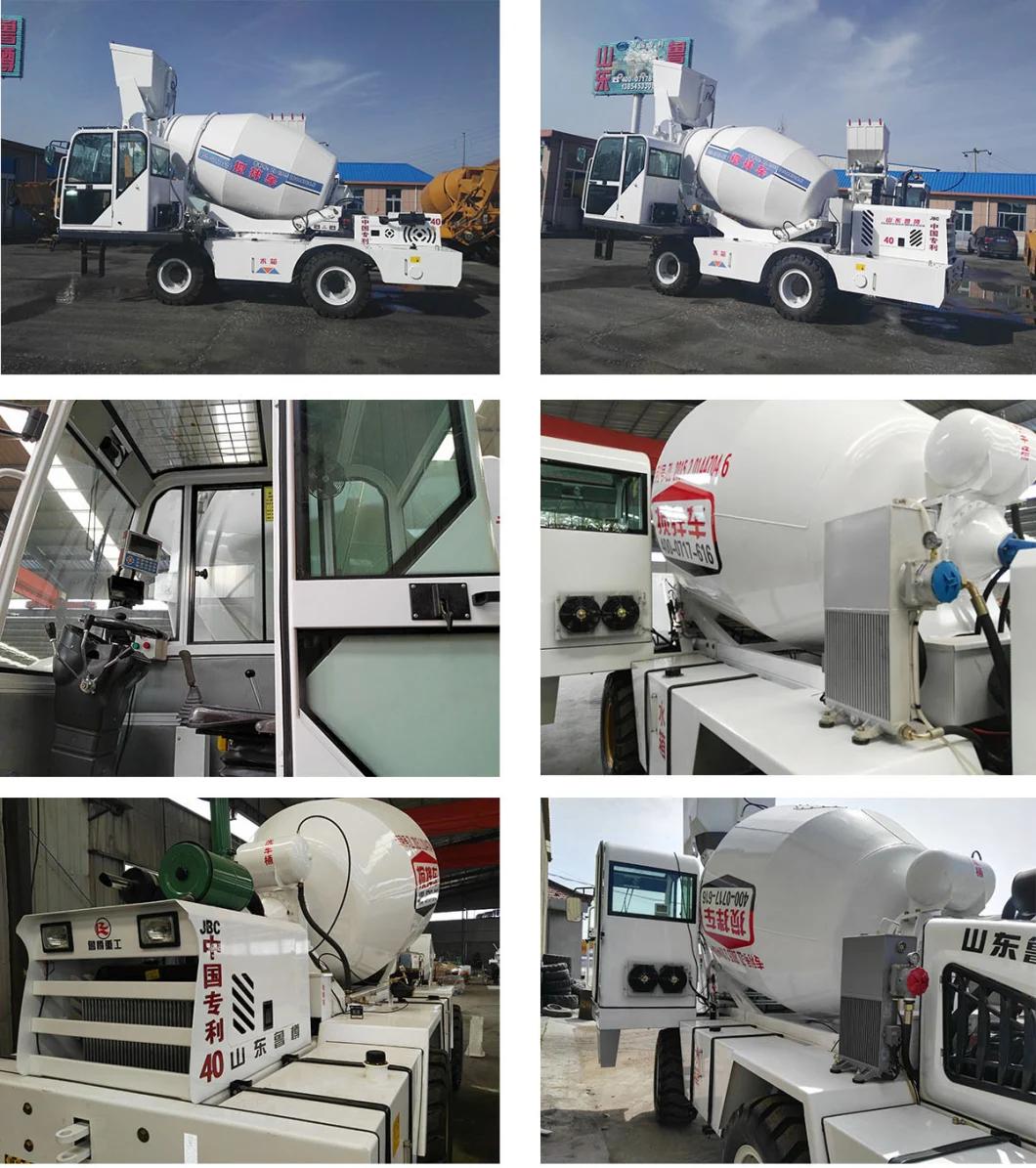

Top Quality 4m3 Self Loading Concrete Mixer Truck for Sale
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Type：Concrete Mixing Truck
- Shotcrete Type：Wet
- Machining Process：Welded Molding Machine
- Structure：Rotor Type
- Productivity：60m²,h
- Feeding Height：1370mm
Base Info
- Model NO.：LZ400
- Vibrating Amplitude：1.4mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：Orange
- Engine：Yuchai
- Driver Cabin：Left-Seat Drive
- Truck Axle：68kg Hydraulic Wheel Side Drive Axle
- Weight：7800kg
- Air Conditioner：Yes
- Transport Package：Nude
- Specification：4m3
- Trademark：Oriemac
- Origin：China
- HS Code：8705400000
- Production Capacity：100units Per Month
Description
mixing system
Drum capacity 4.0m³, height of 1.6 meters discharge.
engine
YUCHAI 85KW/ 116HP/2800rpm Max torsion 390
transmission mode
full hydraulic pressure 280 Torque converter, 4-wheel drive,
driver cabin
Left-Seat drive, anti-tilt, FOPS cab, front loading shovel
truck axle
68KG hydraulic Wheel side drive axle
truck body
Articulated type
Hydraulic system
wheel pump:Dehong duplex pump
Max flow:63/50L/min,Max pressure:16 Mpa
Operating lever
Electronically controlled four-speed joystick
water supply system
2*260L,24V 2*260L water tank, 24V electronically controlled Auto-priming pump,
break
Air brake brakes, dual independent circuits
tyre
16/70-20 construction machinery tires
power system
gen:24V--1500Wa (53.5A)
battery:2×12V--60AH (272A)
oil tank
diesel oil tank:200L, hydraulic oil tank:200L, engine oil :16L
weight
7800kg
out diameter
Length * width * height:7.6*2.7*3.3meters
Air conditioner
Yes
