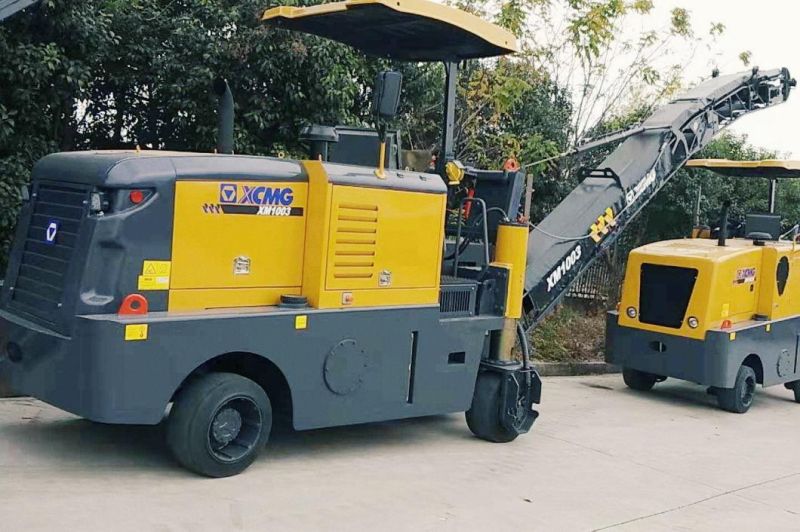

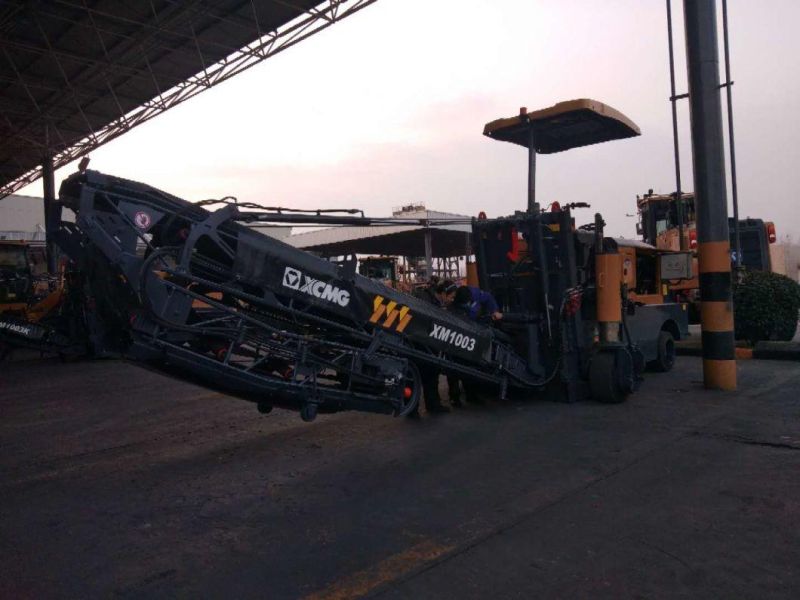

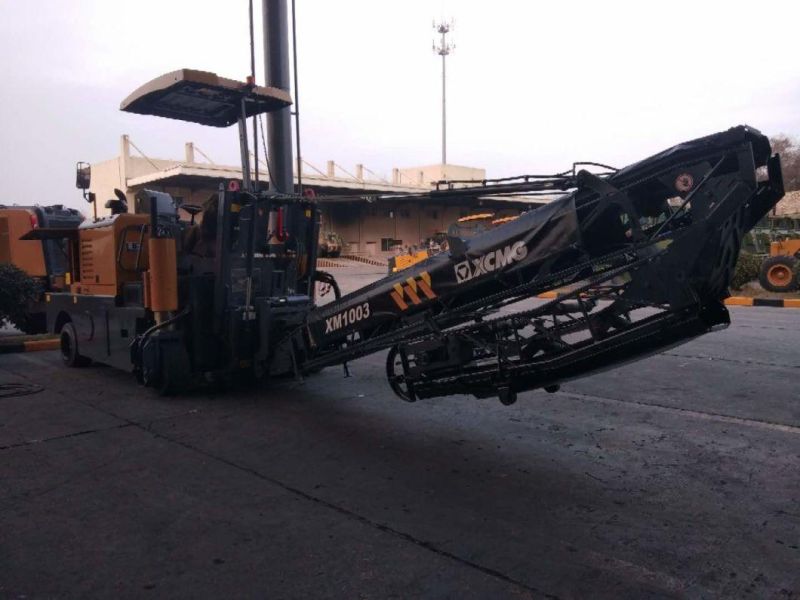

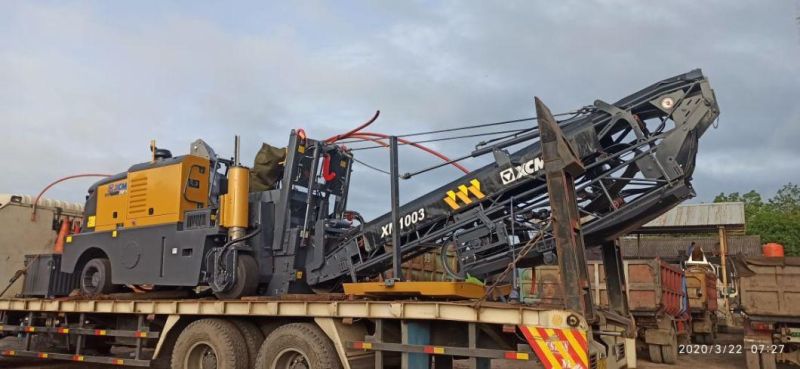

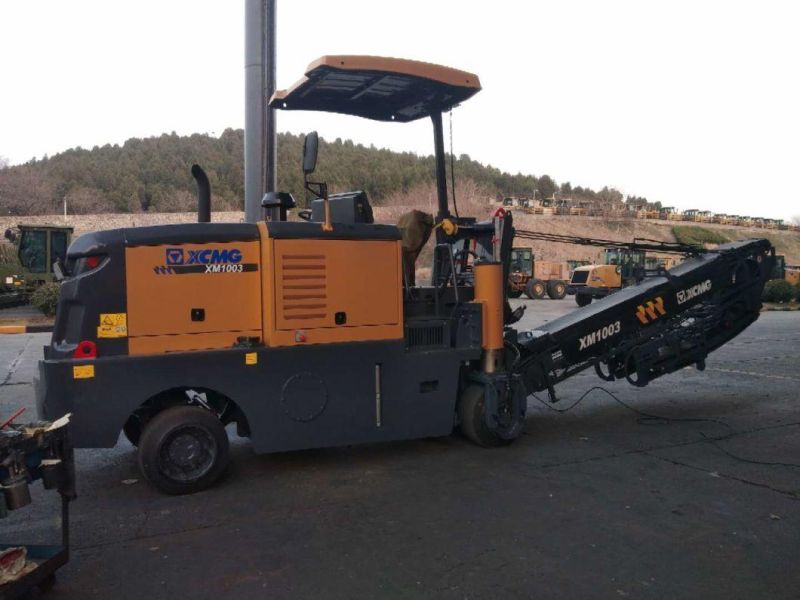

China Top Brand Xm1003 1m Mini Cold Milling Machine for Road Construction
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Type：Cold Milling Machine
- Object：Asphalt Concrete Pavement
- Moving Type：Mobile
- Mixing Method：Intermittent Compulsory
- Automatic Grade：Semi-Automatic
- Product Capacity：40～400t,h
Base Info
- Model NO.：XM1003
- Certification：ISO9001: 2000, CE
- Condition：New
- Milling Width：1000mm
- Milling Depth：180mm
- Cutter Spacing：18mm
- Number of Cutters：82
- Engine：Shangchai Sc9dk220g3
- Cooling Type：Water Cooling
- Number of Cylinders：6
- Rated Power：162,2,200kw,Rpm
- Maximum Working Speed：45m,Min
- Maximum Traveling Speed：8km,H
- Ground Clearance：180mm
- Operating Weight：15600kg
- Transport Package：Nude Package
- Specification：4583x2294x3130mm
- Origin：China
- HS Code：87051092
- Production Capacity：10000
Description
Model
XM1003
Max. milling with
mm
1020
Max. milling depth
mm
120
Milling wheel
Number of tools
84
Drum diameter with tools
mm
660
Engine
Model
D6114
Rated power
kW
125
Rated speed
rpm
2200
Specifications
Operating speed
m/min
0~13
Travel speed
km/h
0~13
Ground clearance
%
≥20
Ground clearance
mm
≤120
Operating weight
kg
14500
Volume
Fuel tank
L
210
Hydraulic oil tank
L
160
Water tank
L
360
Conveyor
Width
mm
400
Measurement
Overall machinery LxWxH
mm
4583×2294×3130
Conveyor LxWxH
mm
6428×700×610
Travel mode
Tire
