• Model NO.：6616E
• Travel Speed：40cm,s
• Centrifugal Force：40KN
• Certification：CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Operating Mass：15500kg
• Mass on Vibrating Drum：9500kg
• Mass on Drive Axle：6000kg
• Front Drum Static Linear Load：437 N,Cm
• Model：6btaa5.9-C160
• Rated Power：118 Kw (160 HP) @ 2200 Rpm
• Drum Diameter：1555mm
• Theoretical Gradeability：50%
• Min. Ground Clearance：470mm
• Min. Outside Turning Radius：6500mm
• Wheelbase：2980mm
• Transport Package：40hq
• Specification：43m3
• Trademark：Oriemac
• Origin：Guangxi
• HS Code：8429401900
• Production Capacity：300PCS,Month

Basic Info.

Model NO. 6616E Travel Speed 40cm/s Centrifugal Force 40KN Certification CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Operating Mass 15500kg Mass on Vibrating Drum 9500kg Mass on Drive Axle 6000kg Front Drum Static Linear Load 437 N/Cm Model 6btaa5.9-C160 Rated Power 118 Kw (160 HP) @ 2200 Rpm Drum Diameter 1555mm Theoretical Gradeability 50% Min. Ground Clearance 470mm Min. Outside Turning Radius 6500mm Wheelbase 2980mm Transport Package 40hq Specification 43m3 Trademark Oriemac Origin Guangxi HS Code 8429401900 Production Capacity 300PCS/Month

Product Description

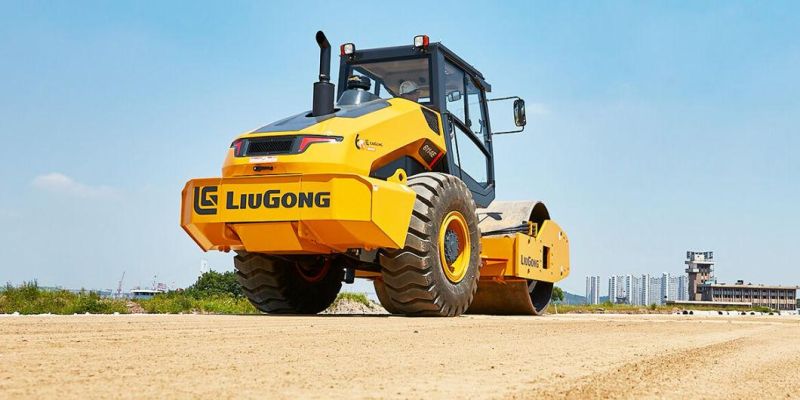

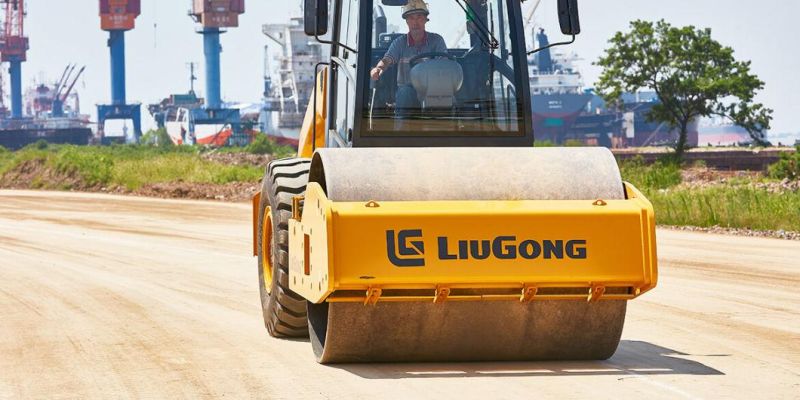

LIUGONG Mini Road Roller Compactor 6616E 16Ton Sales

• Flexible and non-impact technology on our vibratory rollers extends the vibratory bearing's working life to beyond 10,000 hours increasing productivity and reducing part wear.
• With dual frequency and double amplitude vibratory mode, our rollers generate industry leading centrifugal compaction force.
• With a larger diameter drum, combined with amplitude consistency and uniformity, we ensure that the optimum compaction force is delivered with fewer passes required.

Operating Mass                                      15500 kg

Mass On Vibrating Drum                         9500 kg

Mass On Drive Axle                                 6000 kg

Front Drum Static Linear Load               437 N/cm

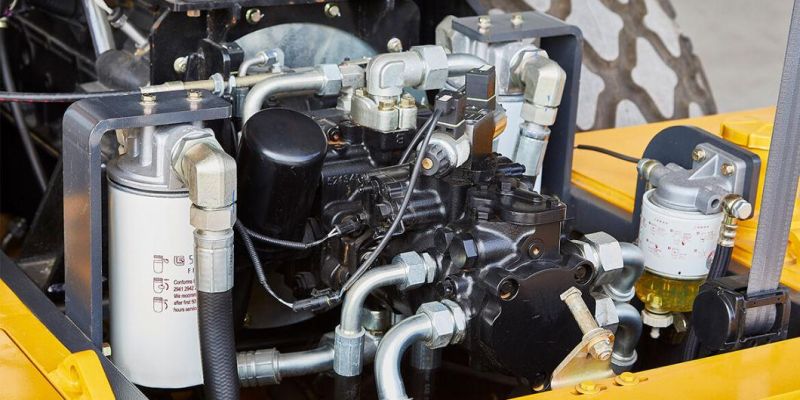

Model                                                      Cummins 6BTAA5.9-C160

Emission Regulation                               Stage II

 Rated Power                                         118 kW (160 hp) @ 2200 rpm

Vibration Frequency                                   30/33 Hz

Nominal Amplitude                                  2.0/1.2 mm

Centrifugal Force                                       300/220 kN

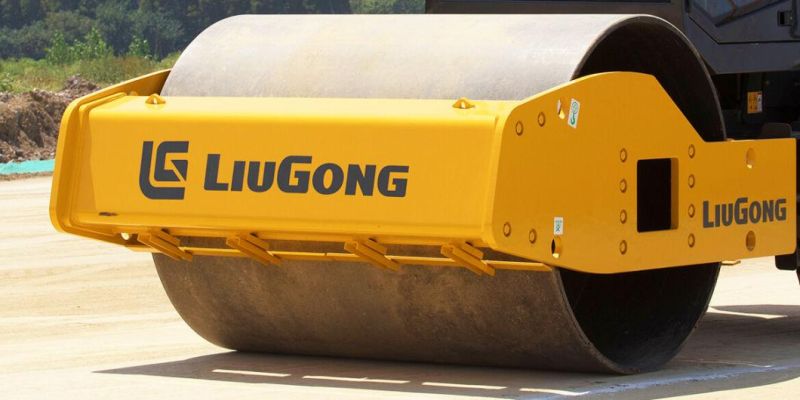

Drum Diameter                                       1555 mm

1st Maximum Speed, fwd                            4.5 km/h

2nd Maximum Speed, fwd                            6.1 km/h

3rd Maximum Speed, fwd                          6.7 km/h

4th Maximum Speed, fwd                          12 km/h

Theoretical Gradeability                               50%

Min. GroundClearance                              470 mm

Wheelbase                                                  2980 mm

Min. Outside Turning Radius                     6500 mm

Overall Length                                              6000 mm

Overall Width                                                     2280 mm

Overall Height                                                     3080 mm
