Skip Hoist Twin Shaft Concrete Mixer 2m3 for Batching Plant

SHANDONG MACPEX MACHINERY EQUIPMENT CO., LTD.
  • Type：Concrete Mixer
  • Shotcrete Type：Wet
  • Machining Process：Hydraulic
  • Structure：Rotor Type
  • Productivity：60m²,h
  • Feeding Height：1400mm

Base Info

  • Vibrating Amplitude：0.9mm
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Color：Yellow
  • Motor：ABB
  • Transport Package：Standard Package
  • Trademark：SICOMA
  • Origin：China
  • HS Code：8474310000
  • Production Capacity：2000

Description

*Shaft ends multi seal protection and air purge seal protection to efficiently prevent leakage.*Unique mixer monitoring system to montior working conditions of gearbox,discharge door pump,and electronic lubrication pump.*Equipped with 24DC HDI grease pump special for concrete mixer;Self-progrmmed operation time,Waterproof,Dustproof,Superb performance.*Multi-pipe water sparying to ensure even water disribution.*Heavy duty design,stable operation.*Optional filtering and cooling system to keep lubrication oil clean in a constant Temperature and extend gearbox service life.*Optional 4thGeneration gearbox processed by higt-precision technology with military materials.High performance and longer service life.*Optional mixer stable protection system and microwave moisture monitoring sytem.*Capacity ranged from 1.5cu.m to 6.0cu.m.Parameter:
ModelDry filling capacity(L)Compacted yield(L)Motor PowerWeight
PEX1500/1000150010002×18.55.05
PEX1750/1250175012502×225.13
PEX2250/1500225010002×305.62
PEX2250/1500225010002×306.5
PEX3000/2000300020002×377.5
PEX4500/3000450030002×559.2
PEX6000/4000600040002×7511.8

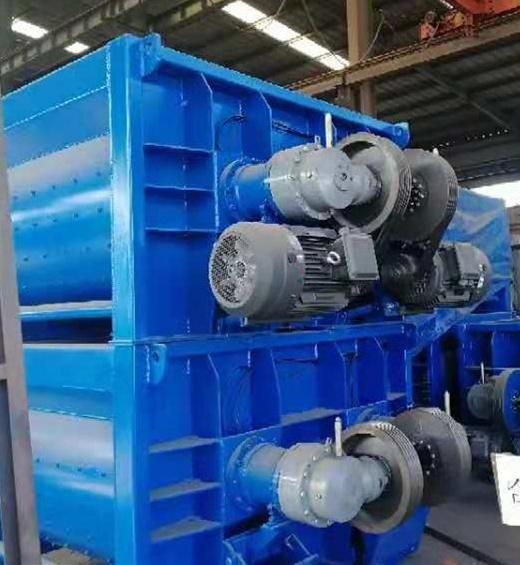

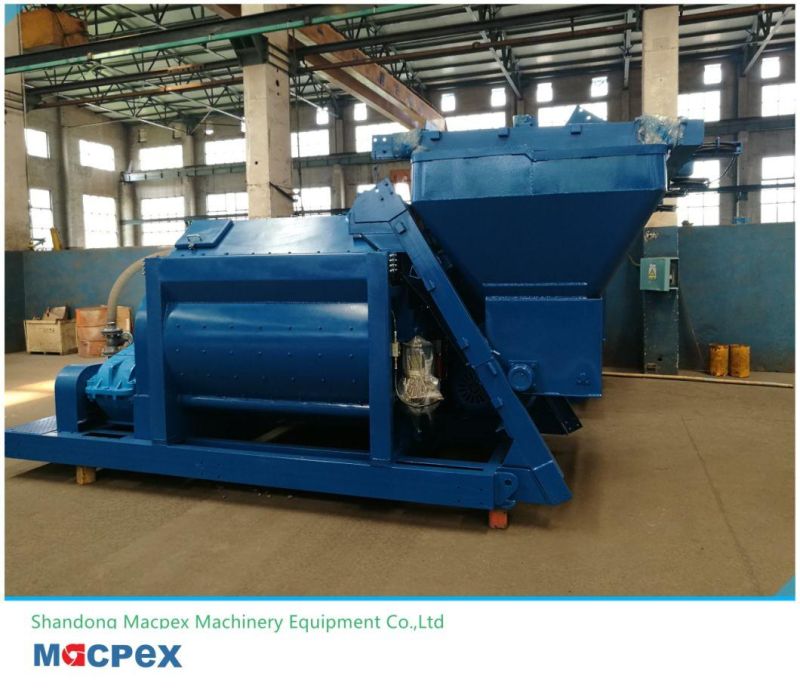

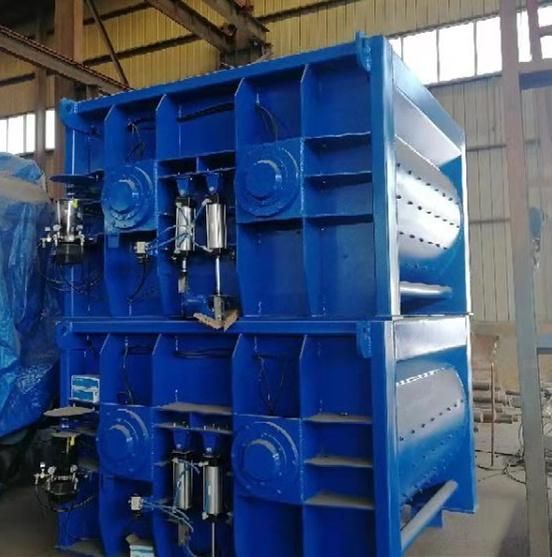

Product detail and loading:
Skip Hoist Twin Shaft Concrete Mixer 2m3 for Batching Plant




Skip Hoist Twin Shaft Concrete Mixer 2m3 for Batching Plant
Skip Hoist Twin Shaft Concrete Mixer 2m3 for Batching Plant

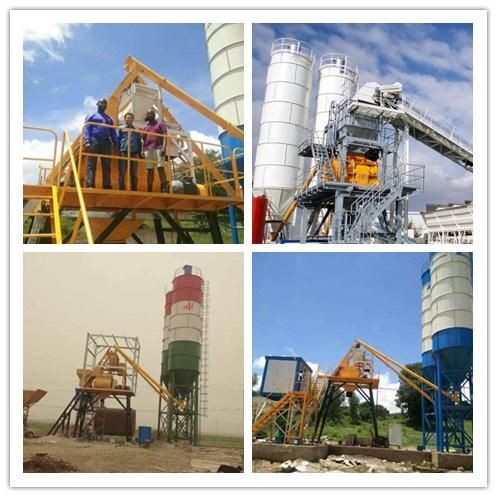

Product application:
Skip Hoist Twin Shaft Concrete Mixer 2m3 for Batching Plant
